User Guide
43
6. Access the work mode menu and set the mode that adapts to the test to
be carried out.
7. Access the resistance range menu.
We recommend using the “Auto” mode as better precisions can be
obtained, although the resistance range to be measured can also
be set.
Diagram connection diagram to perform the test:
1. Connect the crocodile clips of the high current cables to the current taps of
the device tested.
2. Connect the voltage measurement cables to the appropriate sensing
connections of the device tested.
3. Connect the ammeter clamp to the ground tap.

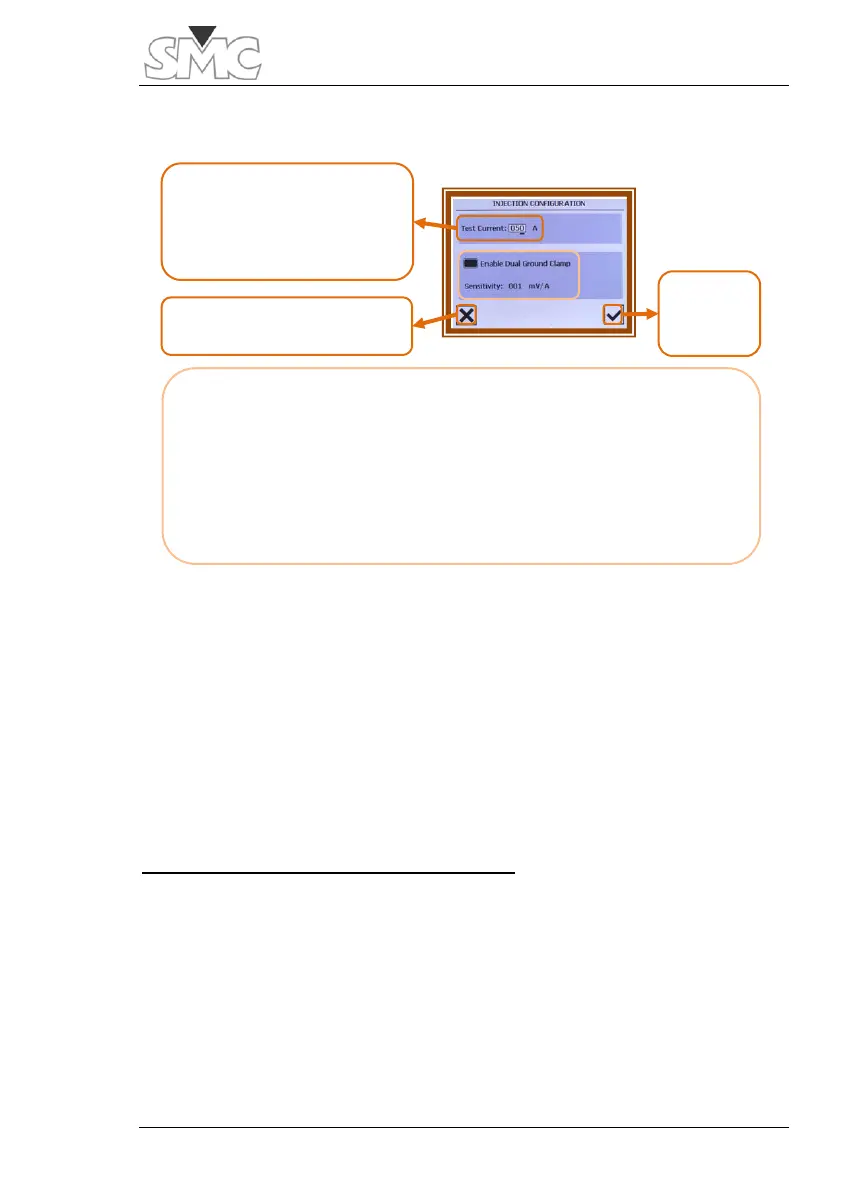

Enter the current value
that adapts to the device
tested
* Enable Dual Ground Clamp: Enable function.
*Sensitivity: Set the ammeter clamp measurement range that is
going to be used . If the ammeter clamp supplied by EuroSMC is
used, the available ranges will be 1mV/A and 10mv/A.
