8. Resistance range setup.
PERFORMING TESTS
“Single” Work mode (Static resistance).
We will select this work mode when we wish to measure a resistance with
precision.
Setup:
1. Connect the high current cables to the current taps of the Prime - 600.
2. Connect the measurement cables to the voltage measurement
connections of the Prime - 600.
3. Turn on the equipment.
The setup prior to performing a test is summed up as:
 Selection of work mode.
 Selection of current to inject.
 Selection of resistance range.

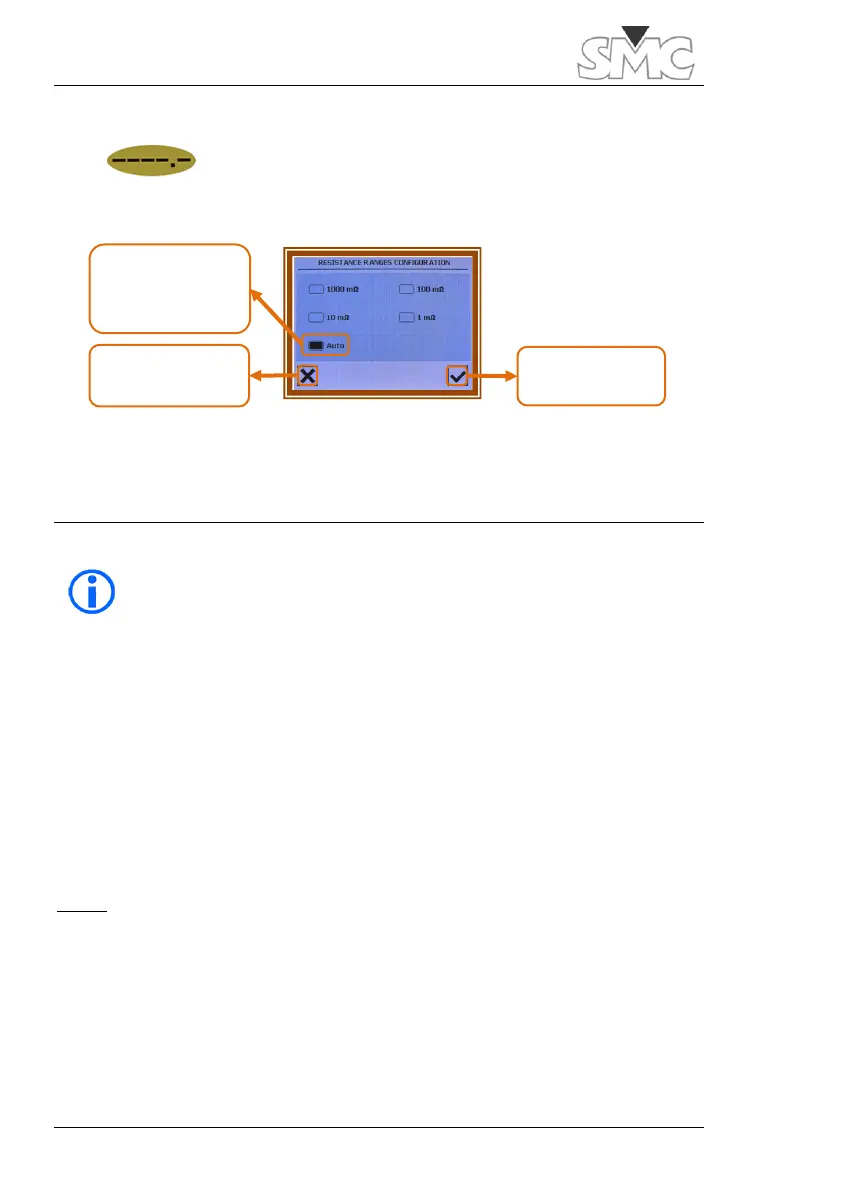

Validate range
Exit menu
Auto range
mode
