89
Guided Component Test Operations Operations
View Meter
A Meter icon, which is only available in the Guided Component Test view meter mode, appears on
the upper toolbar (Figure 7-9).

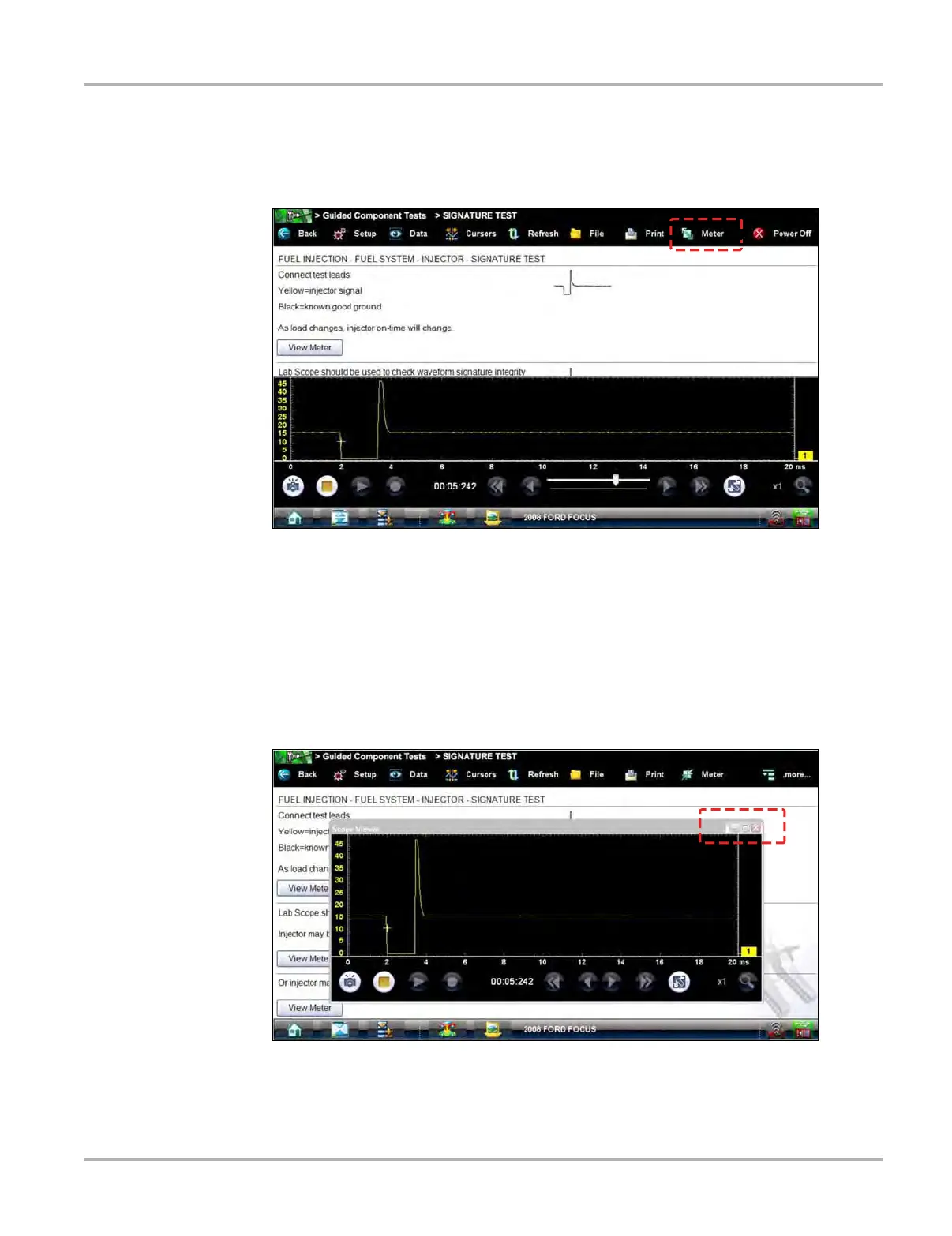

Figure 7-9 Sample view meter window
Three view meter options are available:
1. With View Meter active (Figure 7-9), select the Meter icon on the toolbar once and the meter
expands to fill the entire screen.
2. Select the Meter icon a second time and the meter open as a separate window (Figure 7-10).
This window can remain open if you switch to the Scan Module and can be accessed from the
Windows toolbar at the bottom of the screen. You can also resize and reposition the meter
window on the screen.
Figure 7-10 Sample meter view in a separate window
