4. GENERAL OVERVIEW
The ATyS C55/C65 ATS Controller reference includes:
- 1 ATS Controller
- 1 ATyS C65 IP65 gasket (available as accessory for C55)
- 1 ATyS Cx5 door mounting kit
- 1 ATyS Cx5 backplate mounting kit
- Quickstarts instruction sheet
All other components described in this instruction manual are available as accessories and sold separately.
5
4
1
2
3
7
8
6
9
10

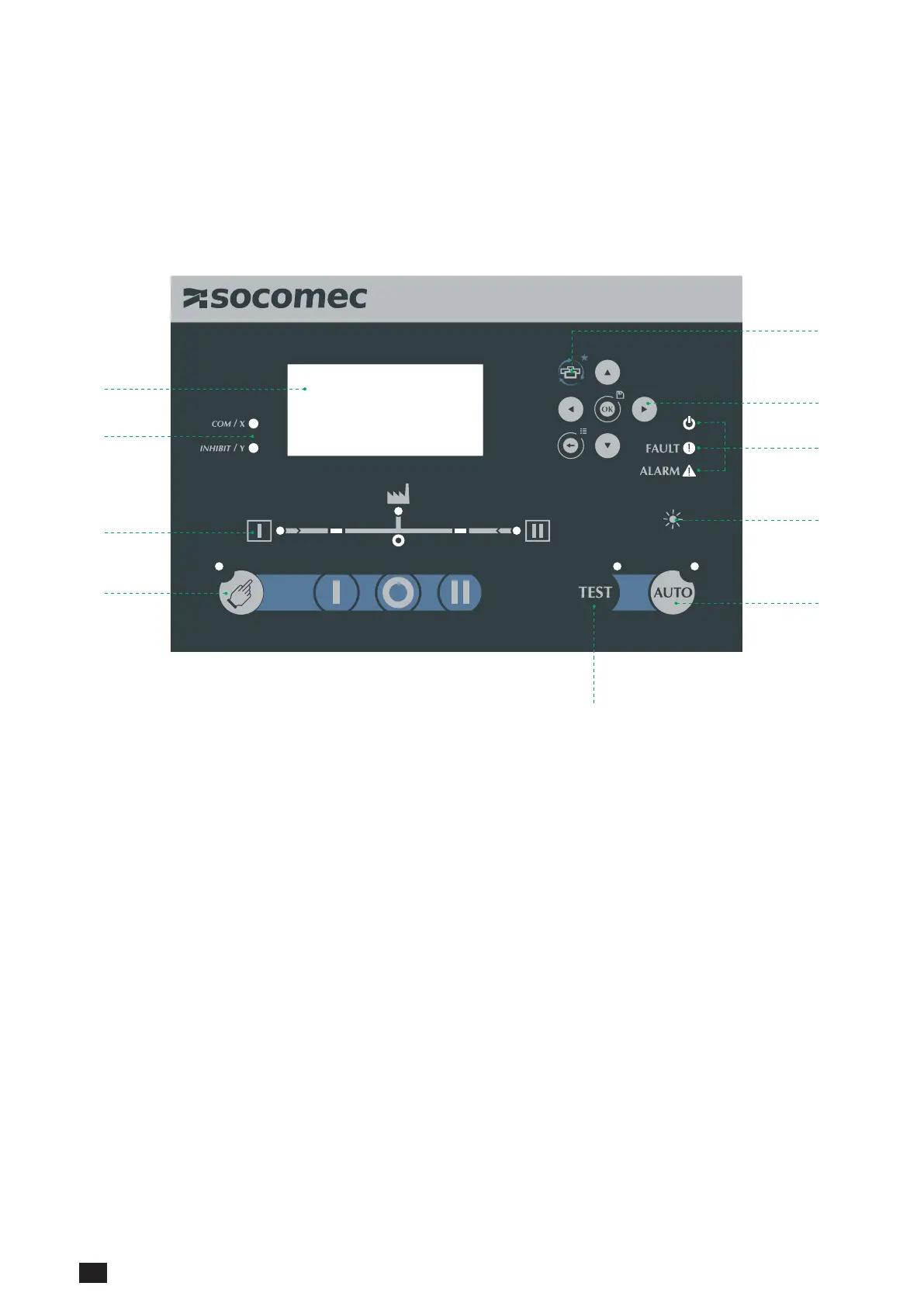

1. LCD display
2. C65 programable LED's / C55 Fixed LED's for COMM & Inhibit
3. Source availability and switchposition synoptic
4. Electric manual operation push buttons and status indicator
5. Change dashboard screen / set screen as favorite (hold 1,5s to set screen as favourite)
6. Navigation arrows (Up/Down/Left/Right)
7. Power, Fault and alarm LED
8. Lamp test button / Clear faults (hold 1,5s to clear faults)
9. Automatic mode push button and LED status indicator
10. Test button and status indicator
