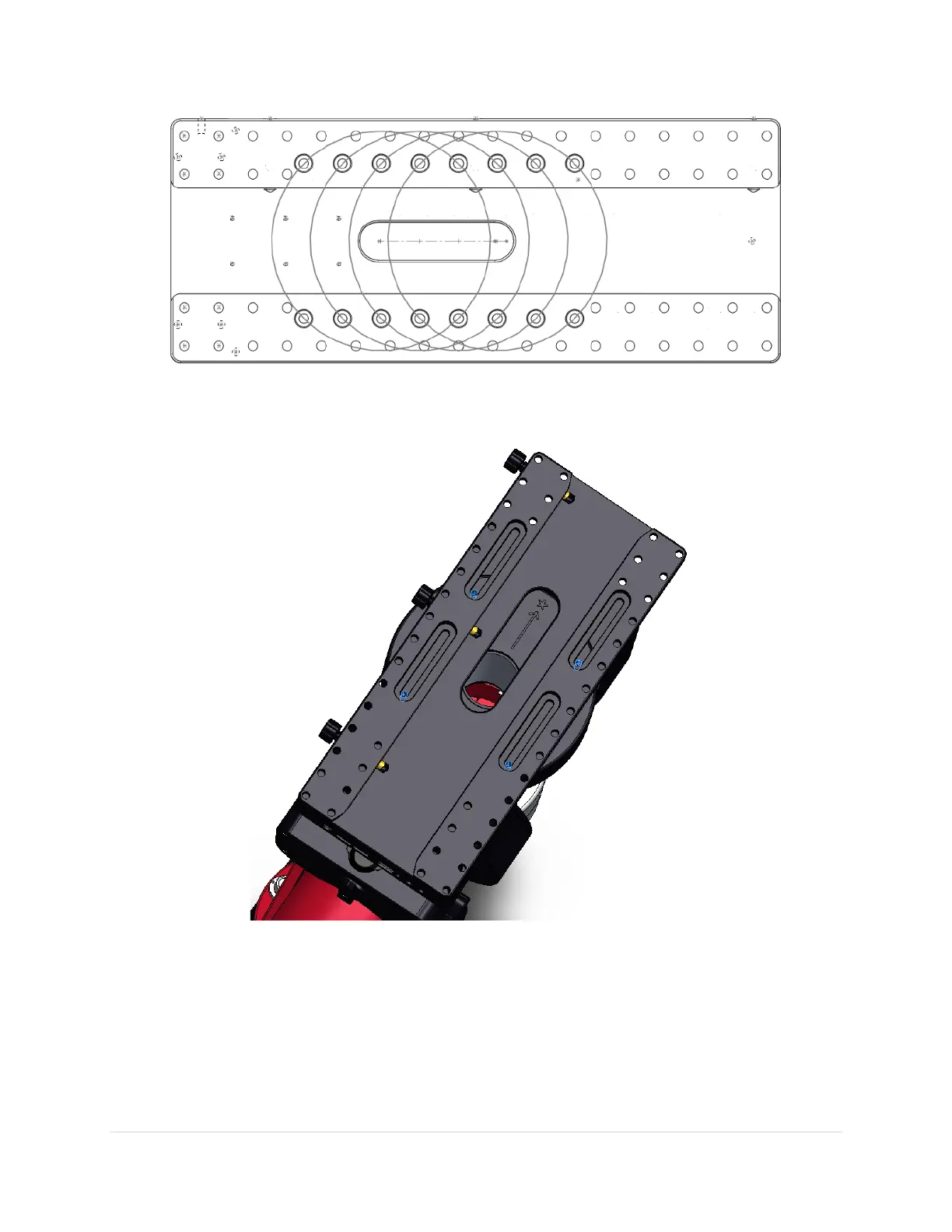

Figure 22: Machined circles mark the four mounting positions on the Paramount MYT and MX Versa-Plate. The Paramount
ME’s Versa-Plate has two mounting positions.
Figure 23: The machined slots in the Paramount MYT and MX Versa-Plates allow the payload to slide fore and aft to achieve
balance in declination.
The Paramount MYT and MX Versa-Plate is slotted to change the balance point of the payload in
declination. To do so, loosen the four ¼-20 SHCS screws using a 3/16-in. hex wrench, then slide the Versa-
Plate to the desired position. Once balance has been achieved, snugly tighten each screw enough so that
the Versa-Plate does not rotate or shift during mount slews, but not so tight as to deform the washers.
