SolarMax SM30HT4 - Configuration Display Procedure

42
6�5�1 Procedure
1. In the Main Menu, select the "Conguration" menu.

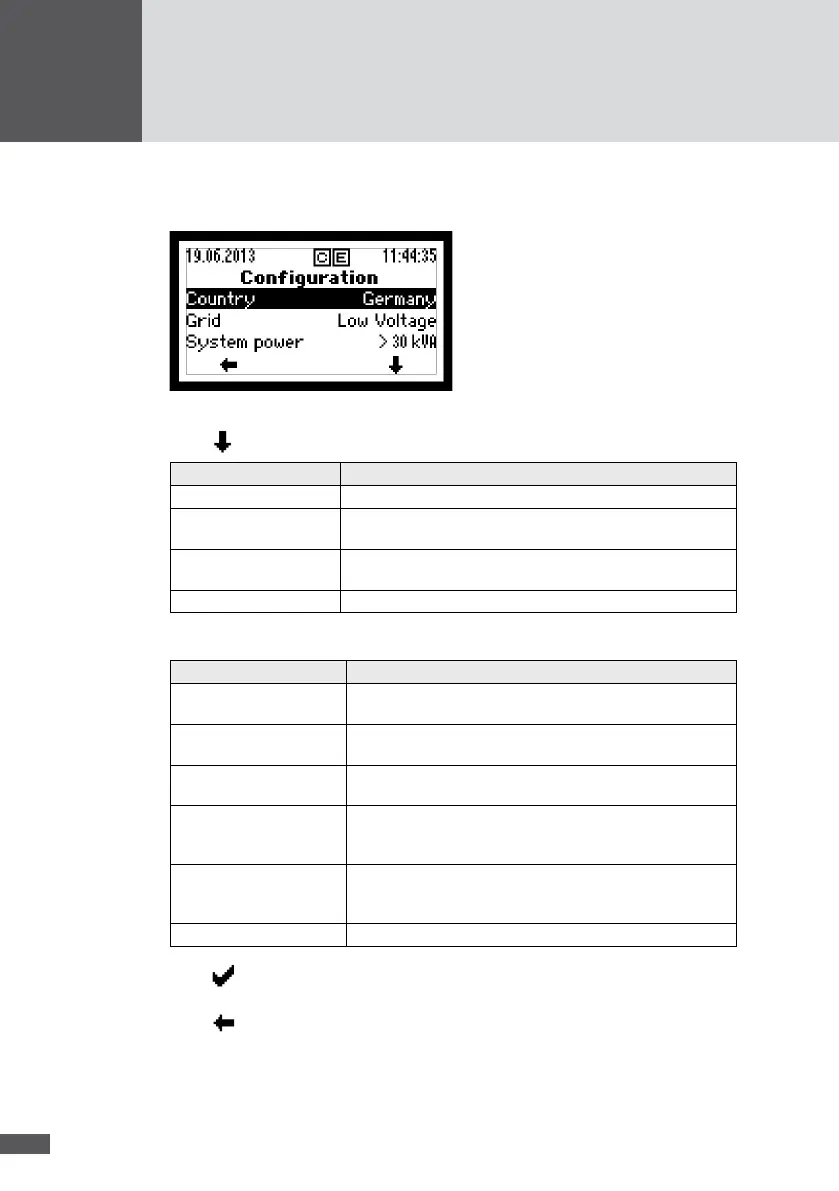

Figure 31 "Configuration" menu
2. Press to select the parameter:
Entry Description
Country Country setting selected at the time of initial start-up.
Grid Grid connection selected during initial start-up (only available
with “Germany” country setting).
System power Plant rating selected at initial start-up (only available with
"Denmark", "Germany" and " Luxembourg" country settings).
SSF Menu of standard-specic functions and parameters
– The "SSF" menu contans the following sub-menus.
Menu Description
External input Display of external control functions (external shutdown and
external output control).
Inverter start-up Those functions are displayed which are active before the
inverter is connected to the grid (start conditions).
Grid operation Those functions are displayed which are active during the
inverter's grid operation (grid monitoring).
Limitation Those functions are displayed which limit the inverter's output
values, such as active and reactive power and output current
(output limitation).
Reactive power Those functions are displayed that have an impact on the
reactive power taken up or given out by the inverter (reactive
power control).
Reference parameters Display of nominal values and reference values.
3. Press to conrm the selection.
– Section 6.5.2 contains the description of the SSF functions and parameters.
4. Press to return to the Main Menu.
