7 Operation
7�1 Graphics display
The graphics display shows the system values, status information, and the inverter’s
failure messages. The graphics display can be used to obtain information on the current
operating status, accessing the integrated data logger and entering various settings on
the inverter.
1
2
3
4
5

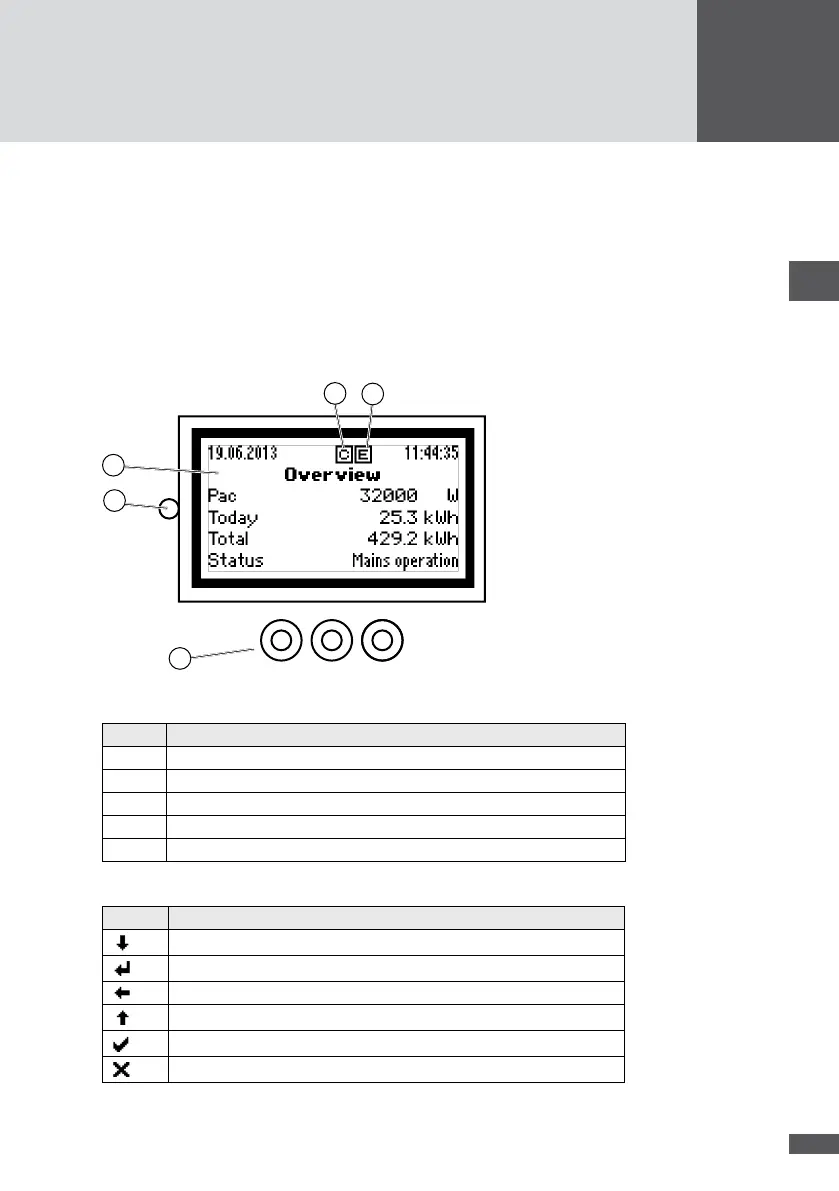

Figure 33 Graphics display with the standard "Overview" display
No� Description
1 Graphics display with backlighting
2 Status LED: operating status display (see Section 7.7)
3 Function keys (membrane keys)
4 Symbol for Ethernet connection (link display)
5 Symbol for data communication
The function keys can be used for navigating within the menu structure:
Symbol Description
Select menu or parameter
Edit parameter
Highlight number (parameter editing)
Increase highlighted number / select menu or parameter
Confirm
Cancel
