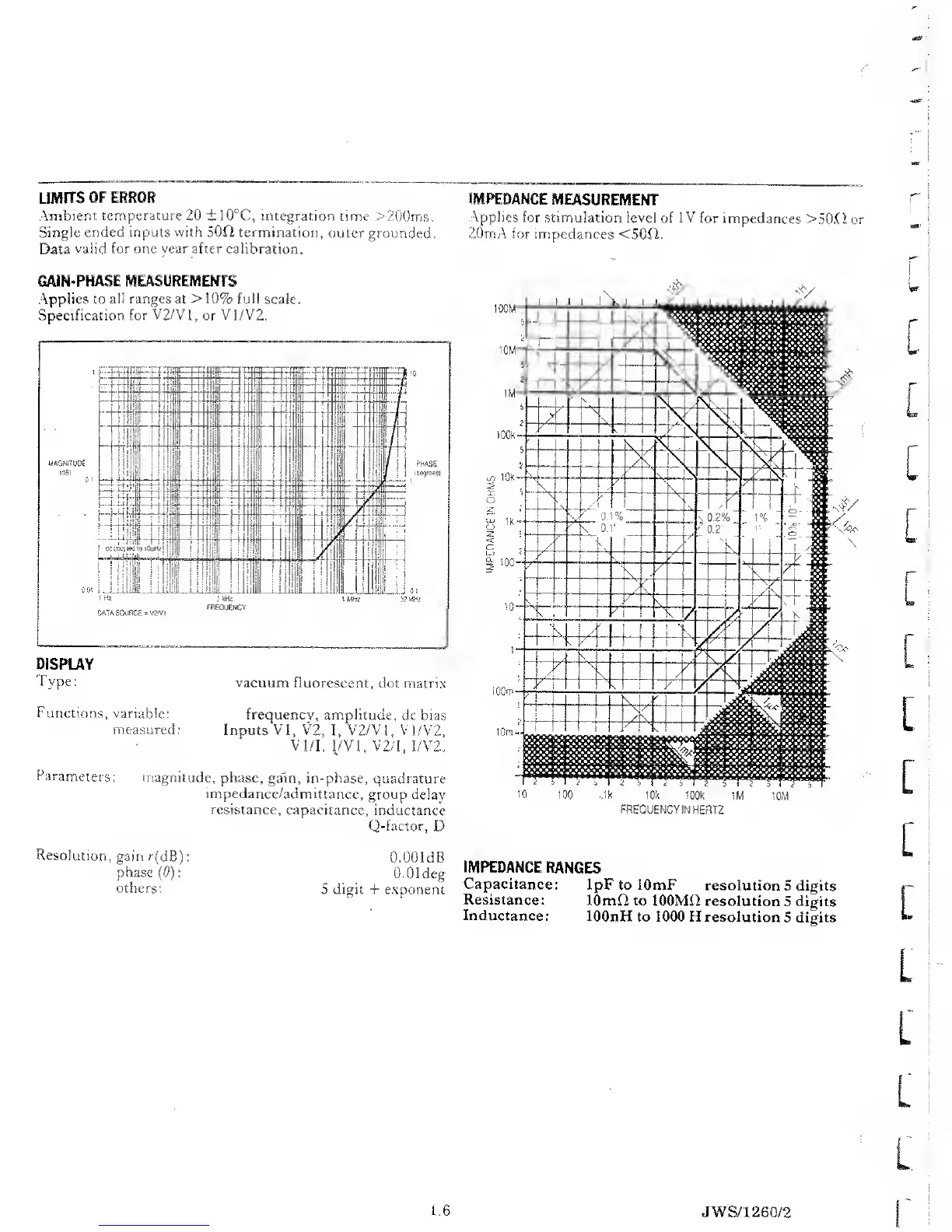

Solartron 1260 - Page 12

UMrrS
OF ERROR
Ambient temperature 20 ±
10°C,
integration
time
>200
ms.
Single ended
inputs with
50ft termination,
outer grounded.
Data
valid for one vear after calibration.
IMPEDANCE
MEASUREMENT
Applies
for stimulation
level of IV
for
impedances >50.0
or
2,0mA for
impedances
<50ft.
GAIN-PHASE MEASUREMENT
Applies to
all ranges at
>
10%
full scale.
Specification for
V2/V1,
or
V1/V2.
DISPLAY
Type
: vacuum
fluorescent,
dot matrix
Functions,
variable:
frequency, amplitude,
dc bias
measured
: I nputs V
1 ,
V2,
I
,
V2./V
1
,
V1/V2,
Vl/I.
I/Vl, V2/
1 ,
I/V2.
Parameters:
magnitude,
phase, gain, in-phase,
quadrature
impedance/admittance,
group delay
resistance,
capacitance, inductance
Q-factor,
D
FREQUENCY IN
HERTZ
Resolution,
gain r(dB):
phase
(
0
)
:
others:
IMPEDANCE
RANGES
O.OOldB
0-01
deg
5 digit + exponent.
Capacitance:
Resistance:
Inductance:
lpF
to lOmF resolution5
digits
lOmft
to lOOMft
resolution
5 digits
lOOnH to 1000
H resolution
5 digits
1.6
JWS/1
260/2
