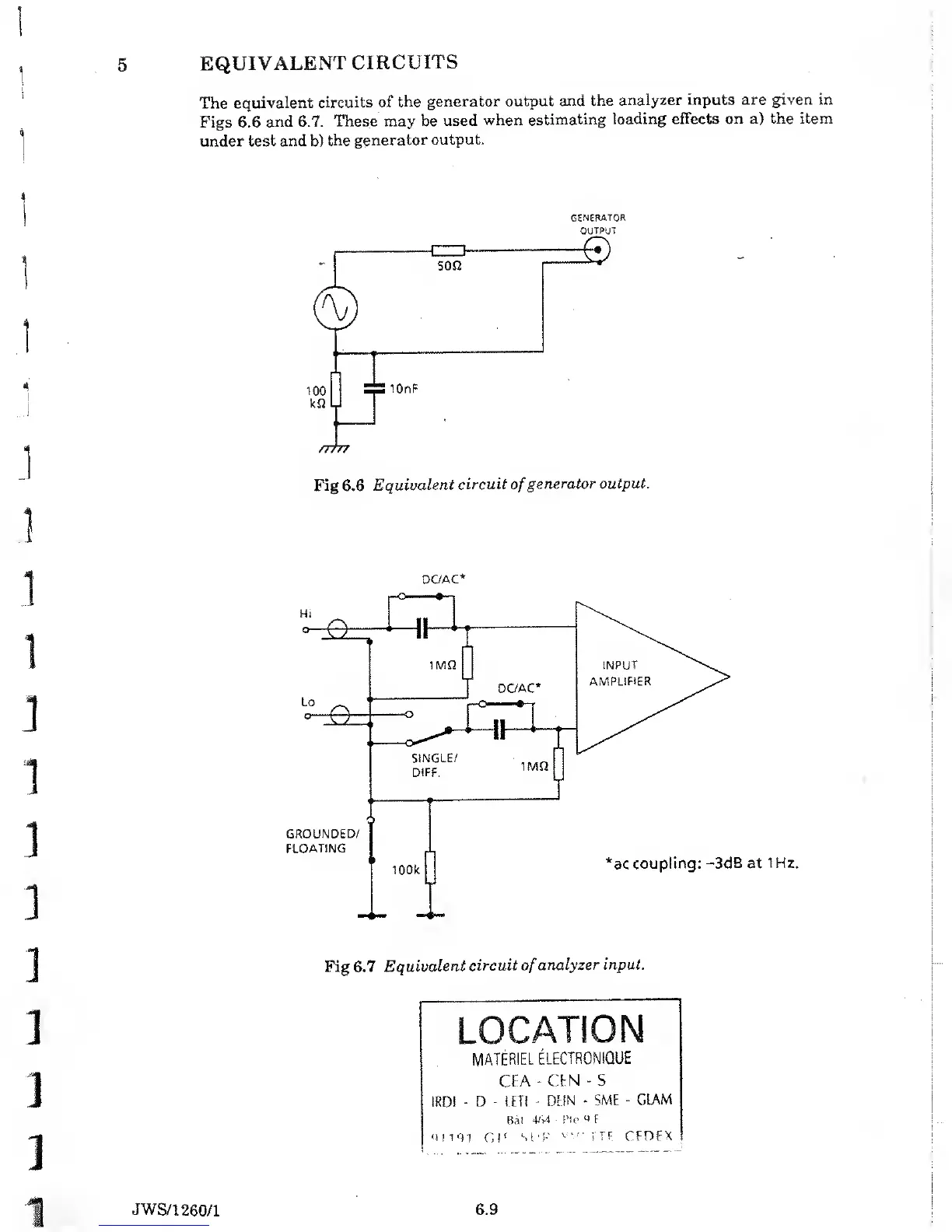

Solartron 1260 - Equivalent Circuits

EQUIVALENT
CIRCUITS
The
equivalent
circuits
of the
generator output
and the
analyzer inputs are given in
Figs 6.6 and 6.7.
These
may be used
when
estimating
loading
effects on a) the item
under test and b)
the
generator output.
GENERATOR
OUTPUT
Fig
6.6
Equivalent
circuit
of
generator output.
DC/AC*
GROUNDED/
FLOATING
ac
coupling:
-3dB
at
1Hz.
Fig 6.7
Equivalent
circuit
of
analyzer input.
