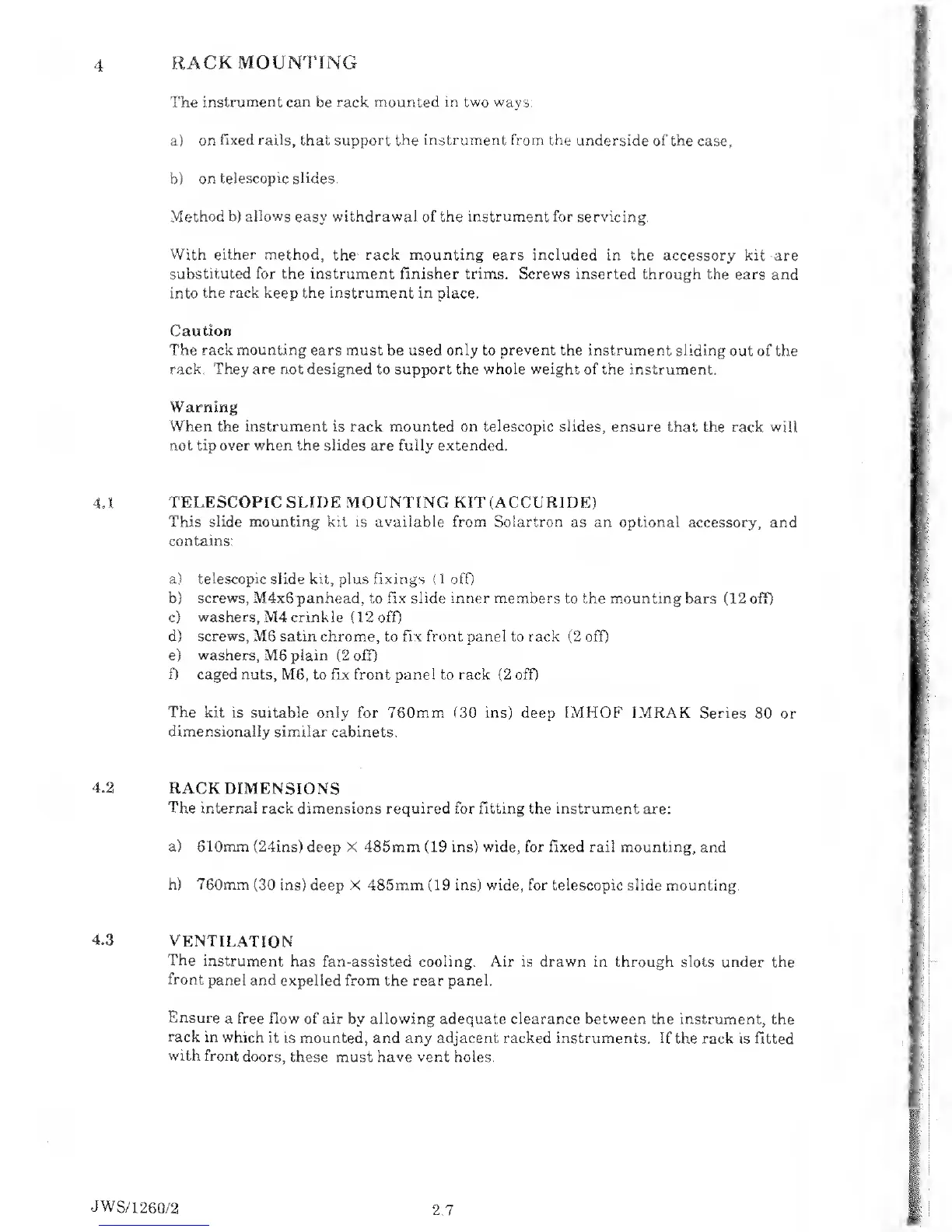

RACK MOUNTING
The
instrument can
be
rack mounted in two ways:
a) on
fixed rails,
that support
the instrument from the
underside of the
case,
b)
on telescopic slides.
Method
b)
allows
easy
withdrawal of the instrument for servicing.
With
either method,
the rack mounting ears included in the accessory
kit -are
substituted for the instrument finisher trims. Screws
inserted through the ears
and
into
the rack keep the instrument
in place.
Caution
The
rack mounting
ears must be used
only
to
prevent
the instrument sliding
out of the
rack. They are not designed
to support the
whole weight
of the instrument.
Warning
When the instrument
is rack
mounted on
telescopic slides, ensure
that
the rack will
not tip
over when the
slides are fully
extended.
4.1
TELESCOPIC SLIDE
MOUNTING KIT (ACCURIDE)
This slide mounting kit is available from Soiartron
as an optional accessory, and
contains:
a) telescopic slide kit, plus fixings
(1
off)
b) screws, M4x6 panhead,
to fix
slide inner
members to the mounting bars
(12
off)
c)
washers,
M4 crinkle (12 off)
d) screws, M6
satin chrome, to fix front panel to rack
(2
off)
e)
washers,
M6 plain
(2
off)
f)
caged nuts, M6, to fix front panel to rack
(2
off)
The kit
is suitable only for 760mm
(30
ins)
deep
IMHOF
IMRAK Series 80 or
dimensionally
similar
cabinets.
4„2
RACK
DIMENSIONS
The internal rack
dimensions required for fitting the instrument
are:
a) 610mm
(24ins) deep X 485mm
(19
ins) wide, for fixed rail
mounting, and
b)
760mm
(30
ins)
deep
X
485mm (19
ins) wide, for telescopic
slide mounting.
4.3
VENTILATION
The
instrument has
fan-assisted cooling. Air is
drawn
in through slots
under the
front
panel and expelled
from the rear panel.
Ensure
a free flow of
air by allowing adequate clearance between the instrument,
the
rack
in
which
it is mounted, and any adjacent racked instruments. If
the rack is fitted
with
frontdoors,
these must have vent holes.
•JWS/1
260/2
2.7
