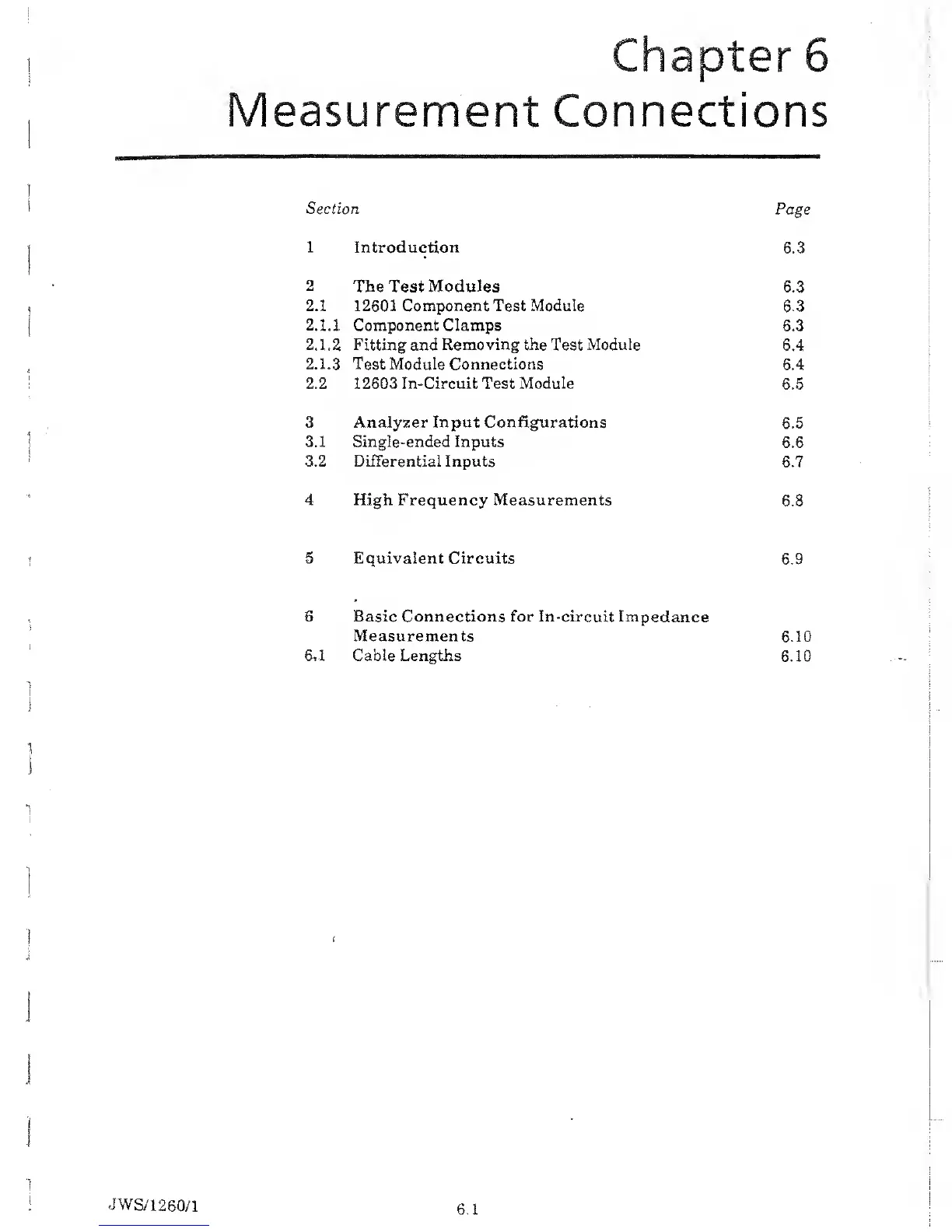

Solartron 1260 - Chapter 6: Measurement Connections for the 1260 Analyzer

Section
Page
1 Introduction
6.3
2
The Test
Modules
6.3
2.1 12601 Component Test Module
6.3
2.1.1 Component Clamps
6.3
2.1.2 Fitting and
Removing the
Test
Module
6.4
2.1.3 Test Module Connections
6.4
2.2 12603 In-Circuit Test
Module
6.5
3 Analyzer Input Configurations
6.5
3.1 Single-ended
Inputs
6.6
3.2 Differential Inputs
6.7
4 High Frequency Measurements
6.8
5 Equivalent Circuits
6.9
6
Basic Connections for In-circuit Impedance
Measurements
6.10
6,1 Cable Lengths
6.10
JWS/1260/1
6.1
