POWER SUPPLY
3.1
POWER VOLTAGE
SELECTOR
The
instrument
can be powered from
either
a U5V or
a 230V
ac supply.
Before
connecting the instrument
to the
supply, proceed
as follows:
1.
Set the selector switch
on the rear
panel to correspond
with
the voltage
of the local
ac supply, i.e.
T15V’ for
supply voltages between
90V and
126V, or
’230V’ for
supply voltages between
198V and
252V.
2.
Insert
a
fuse
of the correct value
into the LINE fuse
holder.

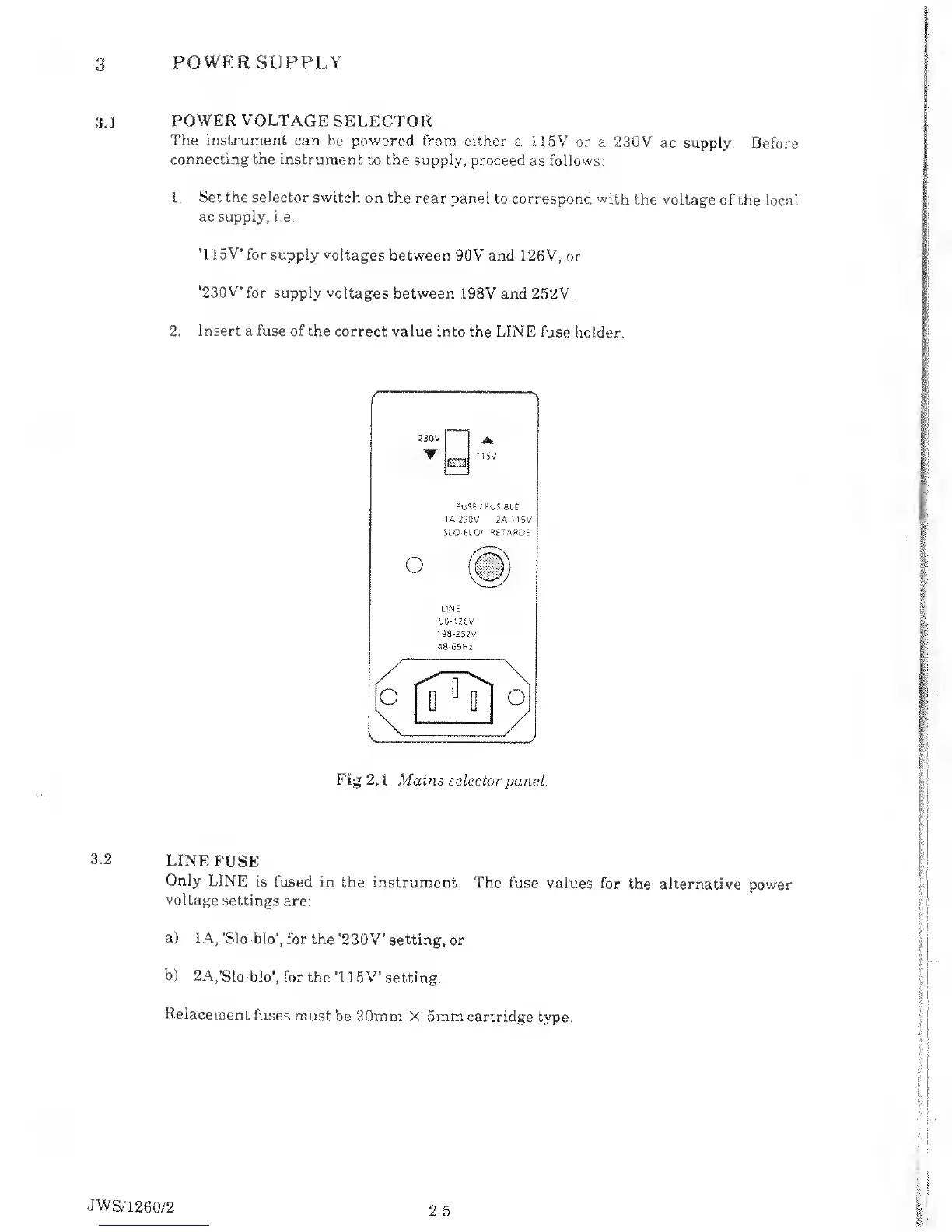

Fig 2.
1 Mains selector
panel.
3.2
LINE
FUSE
Only
LINE
is fused
in the
instrument. The fuse
values for
the
alternative power
voltage
settings
are:
a)
1 A,
'Slo-blo',
for the
'230V' setting, or
b) 2A,
'Slo-blo',
for
the
'1
15V' setting.
Relacement
fuses
must
be
20mm X 5mm
cartridge type.
JWS/1
260/2
2.5
