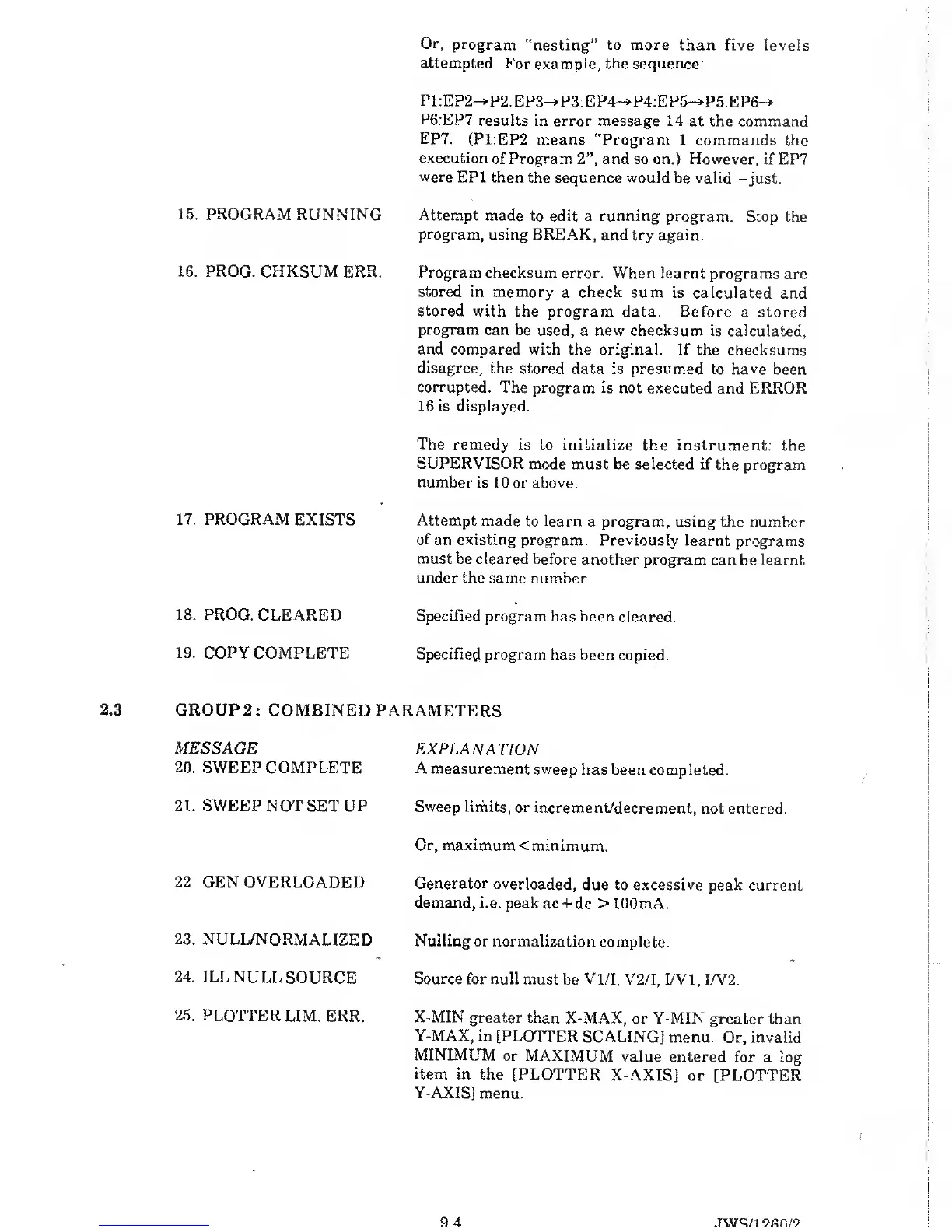

Solartron 1260 - Combined Parameters; Group

Or,
program
"nesting”
to more than five
levels
attempted.
For example,
the
sequence:
P1:EP2-*P2:EP3—
»P3:EP4~»P4:EP5—>P5:EP6~*
P6.EP7
results in error message 14
at
the
command
EP7.
(Pl:EP2
means "Program 1 commands
the
execution
of
Program
2”,
and so on.) However, if
EP7
were
EP1 then
the sequence
would
be valid
-just.
15.
PROGRAM
RUNNING Attempt
made
to edit a
running
program.
Stop the
program,
using BREAK,
and try again.
16. PROG.
CHKSUM ERR. Program
checksum error.
When learnt programs
are
stored
in memory
a check sum is calculated
and
stored
with the
program data. Before
a stored
program
can be
used, a new checksum is
calculated,
and compared with
the original. If the
checksums
disagree,
the stored
data is presumed
to have been
corrupted.
The program
is not executed
and ERROR
16 is
displayed.
The
remedy is
to initialize the instrument:
the
SUPERVISOR
mode must be selected if
the program
number
is 10 or
above.
17. PROGRAM
EXISTS Attempt
made
to learn a program,
using the number
of
an existing program.
Previously learnt
programs
must be cleared
before another program
can
be
learnt
under
the same number.
18.
PROG. CLEARED
Specified program has
been cleared.
19. COPY COMPLETE
Specified program
has been copied.
2.3 GROUP 2
: COMBINED
PARAMETERS
MESSAGE
EXPLANATION
20. SWEEP
COMPLETE
A
measurement sweep
has been completed.
21.
SWEEP NOT SET UP
Sweep
limits, or
increment/decrement,
not entered.
Or, maximum <
minimum.
22
GEN OVERLOADED
Generator
overloaded,
due to excessive
peak current
demand, i.e.
peak ac +
dc
>
100mA.
23. NULL/NORMALIZED
Nulling
or normalization
complete.
24. ILL
NULL SOURCE
Source
for null must
be Vl/I, V2/I,
I/Vl, I/V2.
25.
PLOTTER
LIM. ERR.
X-MIN
greater than
X-MAX, or Y-MIN
greater than
Y-MAX,
in [PLOTTER
SCALING]
menu.
Or, invalid
MINIMUM
or MAXIMUM
value
entered for
a log
item
in the
[PLOTTER
X-AXIS] or [PLOTTER
Y-AXIS]
menu.
