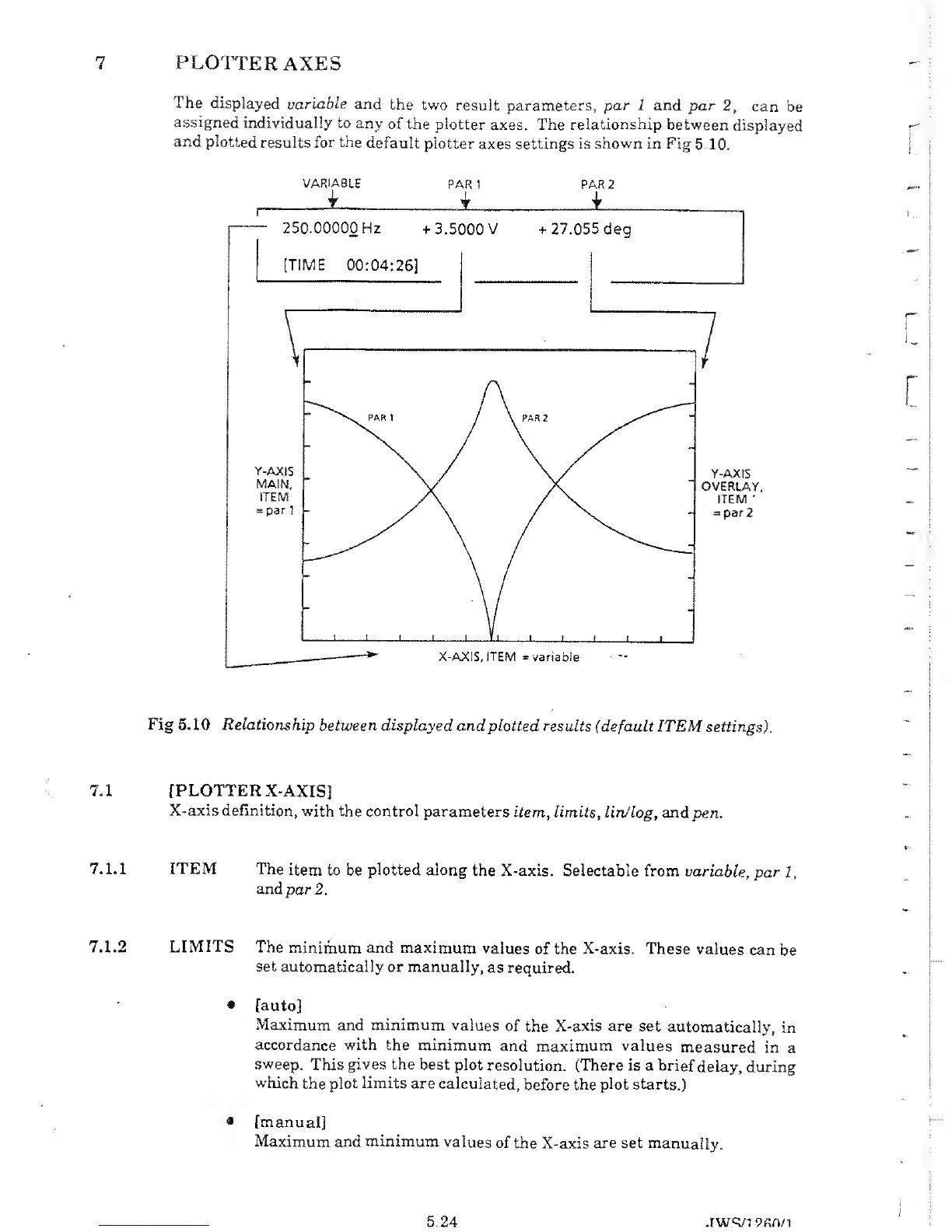

Solartron 1260 - Plotter Axes

7
PLOTTER
AXES
The
displayed variable
and
the two
result
parameters,
par
1 and par
2,
can
be
assigned
individually
to
any
of the
plotter axes. The
relationship
between
displayed
and
plotted results for the
default
plotter
axes
settings is
shown
in Fig
5.10.
VARIABLE
PARI PAR 2
Fig 5.10
Relationship
between displayed
and plotted results
(default ITEM settings).
7.1
[PLOTTER
X-AXIS}
X-axis definition,
with
the
control
parameters
item, limits, lin/log, and
pen.
7.1.1 ITEM
The
item
to
be plotted along the
X-axis. Selectable
from variable,
par
1,
and par
2.
7.1.2 LIMITS The
minimum
and maximum
values
of
the X-axis. These
values
can
be
set automatically
or
manually,
as required.
*
[auto]
Maximum and minimum
values
of
the
X-axis are set
automatically,
in
accordance
with
the minimum
and maximum values
measured
in
a
sweep.
This
gives the
best plot
resolution. (There is a
brief
delay,
during
which
the
plot
limits
are
calculated,
before
the
plot
starts.)
•
[manual]
Maximum and minimum
values
of the X-axis
are set
manually.
5.24
