Solartron 1260 - Test Module Connections

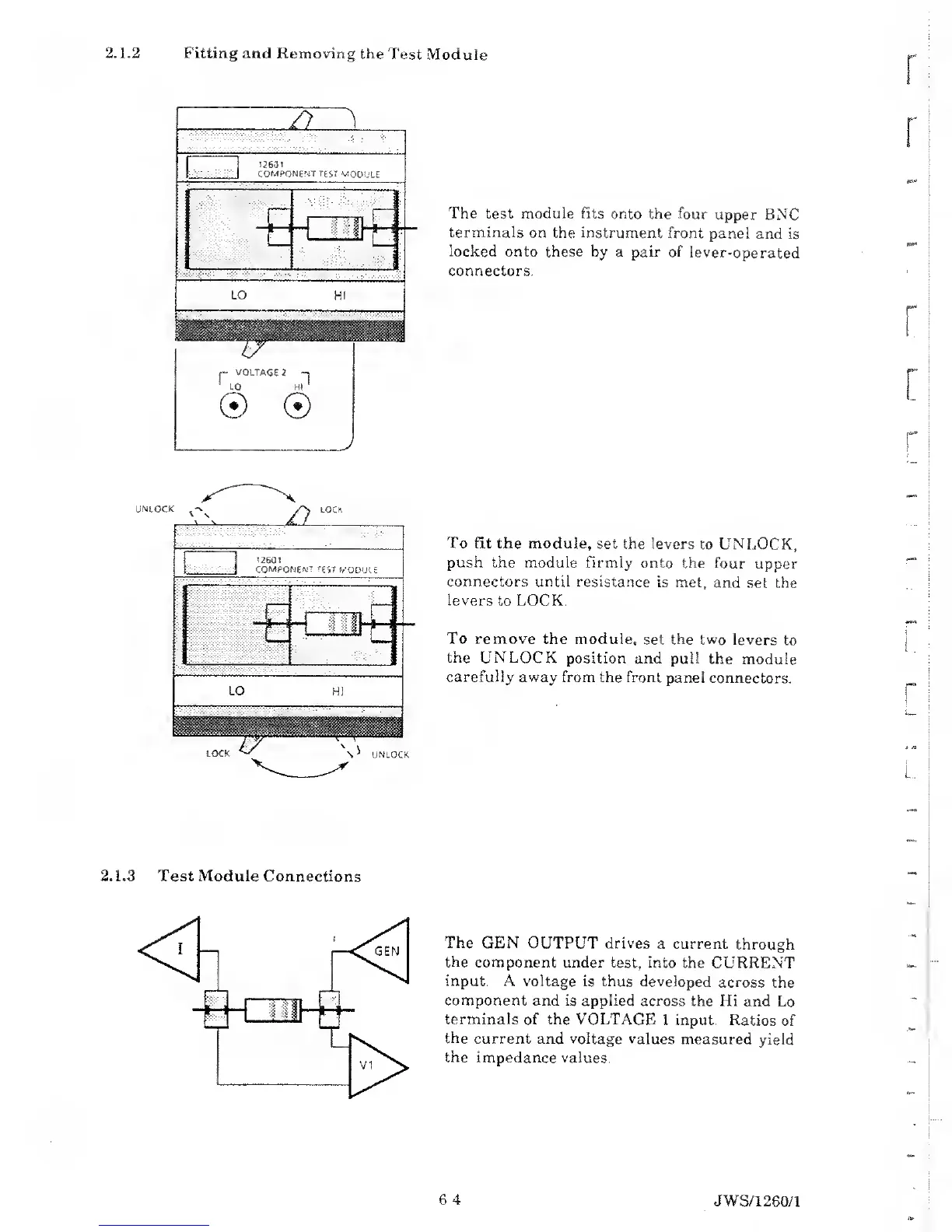

2.1.2 Fitting and Removing
the
Test
Module
The test module fits onto the
four
upper BNC
terminals on the instrument
front
panel and is
locked onto these by
a pair of
lever-operated
connectors.
To fit the module,
set the levers
to UNLOCK,
push the module firmly
onto the four
upper
connectors until resistance
is met, and
set the
levers
to LOCK.
To remove the module,
set the two
levers
to
the UNLOCK
position and pull
the module
carefully away from
the front panel
connectors.
2.1.3
Test Module Connections
The
GEN OUTPUT drives
a current
through
the
component under test,
into the
CURRENT
input.
A voltage is thus developed
across
the
component and is applied
across the Hi
and Lo
terminals
of the VOLTAGE
1 input. Ratios
of
the
current and voltage
values measured
yield
the
impedance values.
