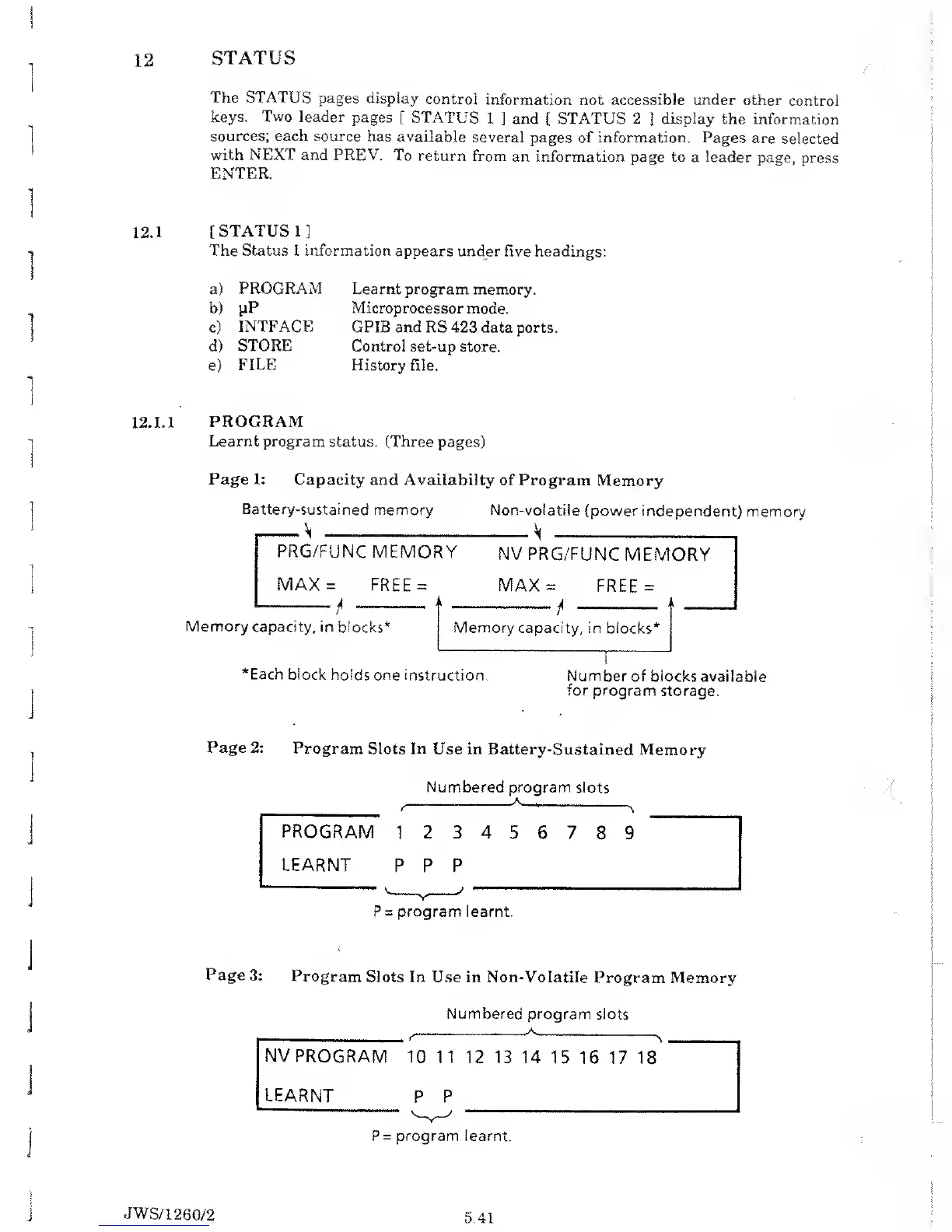

Solartron 1260 - Status

12
STATUS
The
STATUS
pages display
control
information not accessible under
other
control
keys.
Two leader
pages
[
STATUS
1
]
and
[
STATUS
2
1
display the
information
sources;
each
source has
available
several
pages of information. Pages
are
selected
with
NEXT
and PREV.
To return
from
an information page to
a
leader
page,
press
ENTER.
12.1
[
STATUS
1
3
The
Status 1 information
appears under
five headings:
a)
PROGRAM
b)
pP
c)
INTFACE
d)
STORE
e)
FILE
Learnt program memory.
Microprocessor mode.
GPIB and RS 423
data ports.
Control set-up store.
History file.
12.1.1
PROGRAM
Learnt program
status. (Three
pages)
Page 1:
Capacity and Availabilty of
Program
Memory
Battery-sustained memory
—
^
—
PRG/FUNC
MEMORY
MAX
=
FREE
=
Non-votatile
{power
independent)
memory
NV PRG/FUNC
MEMORY
MAX
=
FREE
=
*
Memory
capacity,
in
blocks’
Memory
capacity, in blocks’
*Each block
holds one instruction.
Number
of blocks available
for program
storage.
Page
2: Program
Slots In Use in
Battery-Sustained Memory
PROGRAM
LEARNT
Numbered
program siots
„
/V
f
\
123456789
P
P P
P= program learnt.
Page
3:
Program
Slots In
Use in Non-Volatile
Program Memory
Numbered program
slots
,
A
—
—
f
\
NV
PROGRAM 10
11 12 13 14
15 16 17 18
LEARNT
P
P
__
P- program learnt.
JWS/1
260/2
5.41
