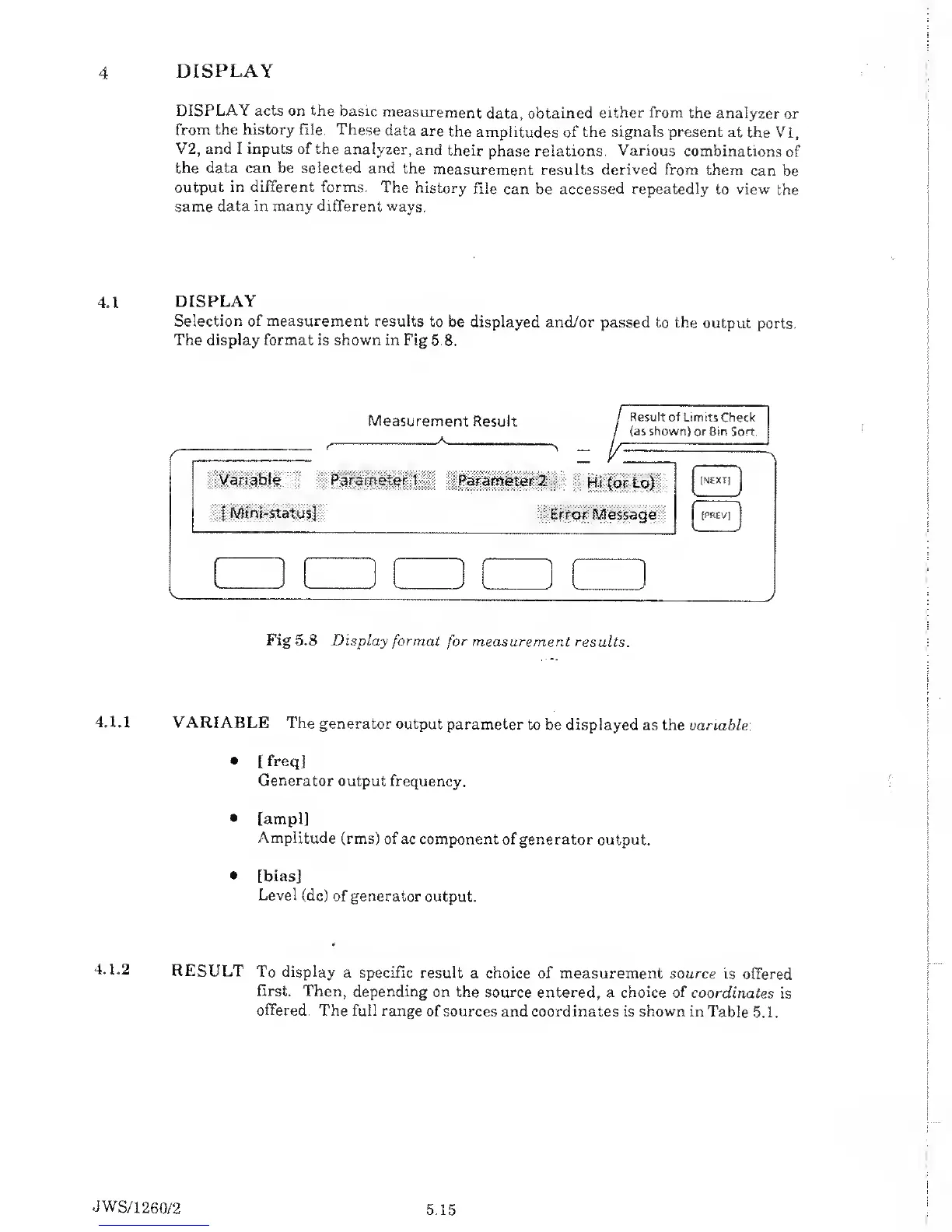

DISPLAY
DISPLAY
acts on the basic
measurement
data,
obtained
either from
the analyzer
or
from the
history
file. These
data
are
the
amplitudes of the
signals present
at the VI,
V2, and
I inputs
of the
analyzer,
and
their
phase relations.
Various
combinations
of
the data
can
be selected and
the
measurement
results
derived from them
can be
output
in different
forms.
The history
file
can be
accessed repeatedly
to view
the
same
data in many different
ways.
4.1
DISPLAY
Selection
of measurement
results
to be displayed
and/or passed to the
output
ports.
The
display
format is
shown
in Fig
5.8.
Measurement
Result
A
Result of Limits
Check
(as shown)
or Bin Sort.
Variable Parameter
1 Parameter
2
Hi (or
Lo)
[NEXT]
— Y
l
Mini-status]
Error
Message
[PREY]
Fig 5.8 Display
format
for
measurement results.
4.1.1
VARIABLE
The generator
output
parameter
to be
displayed
as the variable
:
•
[
freq]
Generator
output frequency.
• [ampl]
Amplitude
(rms)
of ac component
of generator
output.
•
[bias]
Level (dc)
of generator
output.
RESULT
To display
a specific
result
a
choice of
measurement source
is offered
first.
Then, depending
on the source
entered, a choice of coordinates
is
offered.
The full range
of sources
and coordinates is
shown
in
Table 5.1.
JWS/1260/2
5.15
