FITTING
TELESCOPIC SLIDE MOUNTING KIT (ACC
UR IDE)
1 , As
shown
in Fig.
2.5,
remove the following items from the
instrument:
a)
Finisher Trim.,
Keep the
four
M4X
16
panhead
screws and M4 crinkle washers for securing
the rack ears.
b)
Handle and Handle Trim
,
c) Side
Trim,
The
side
trim Is located on the opposite
side
to the
handle. It
is normally
secured by a pip on
the finisher trim and
slides
out
backwards.
d) Feet and Tilt Bar.
The tilt bar is secured by the
two front feet.
FIXING SCREWS

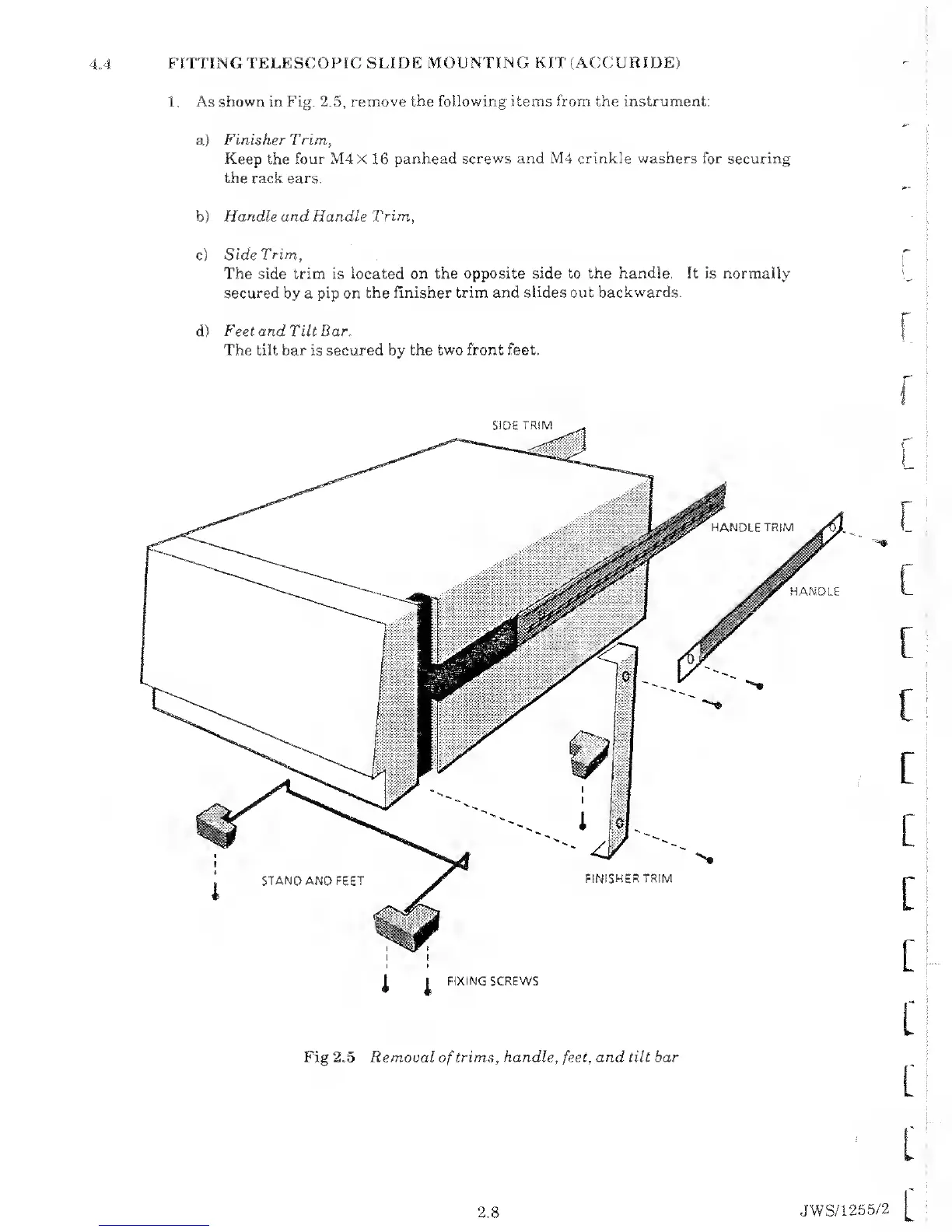

Fig
2.5 Removal
of
trims, handle,
feet,
and tilt bar
