2.
As
shown
in Fig.
2.6, fit the
following
items
to
the
instrument;
a)
Rack Ears
,
Fit rack
ears in
place
of the
finisher
trim, using
the
same fixings
The ears
may
be
fitted
in two
ways:
1. As shown
in
Fig
2,6.
2. With
their
flanges
facing
the
rear
of the
instrument.
This
causes
the
instrument
to
stand
out further
in the
rack.
'Blind'
units
(remote
control
only)
can thus
be
aligned
with
locally
controllable
units.
b)
Slide
Mounting
Bar
The
slide
mounting
bar and
fittings
are
included
with
the
instrument
accessories.
Screw
the mounting
bar
to the
chassis
in
place
of
the
handle,
using
the
four
M4X
1.2
countersunk
screws
provided.
The
bar
fits
correctly
only
one way
round,
with
the
threaded
holes
nearest
the
front.
The
corresponding
mounting
bar on
the
left-hand
side of
the
instrument
is
supplied
already
fitted
behind
the
side
trim;
it is
slightly
narrower
than
the
right-hand
bar.

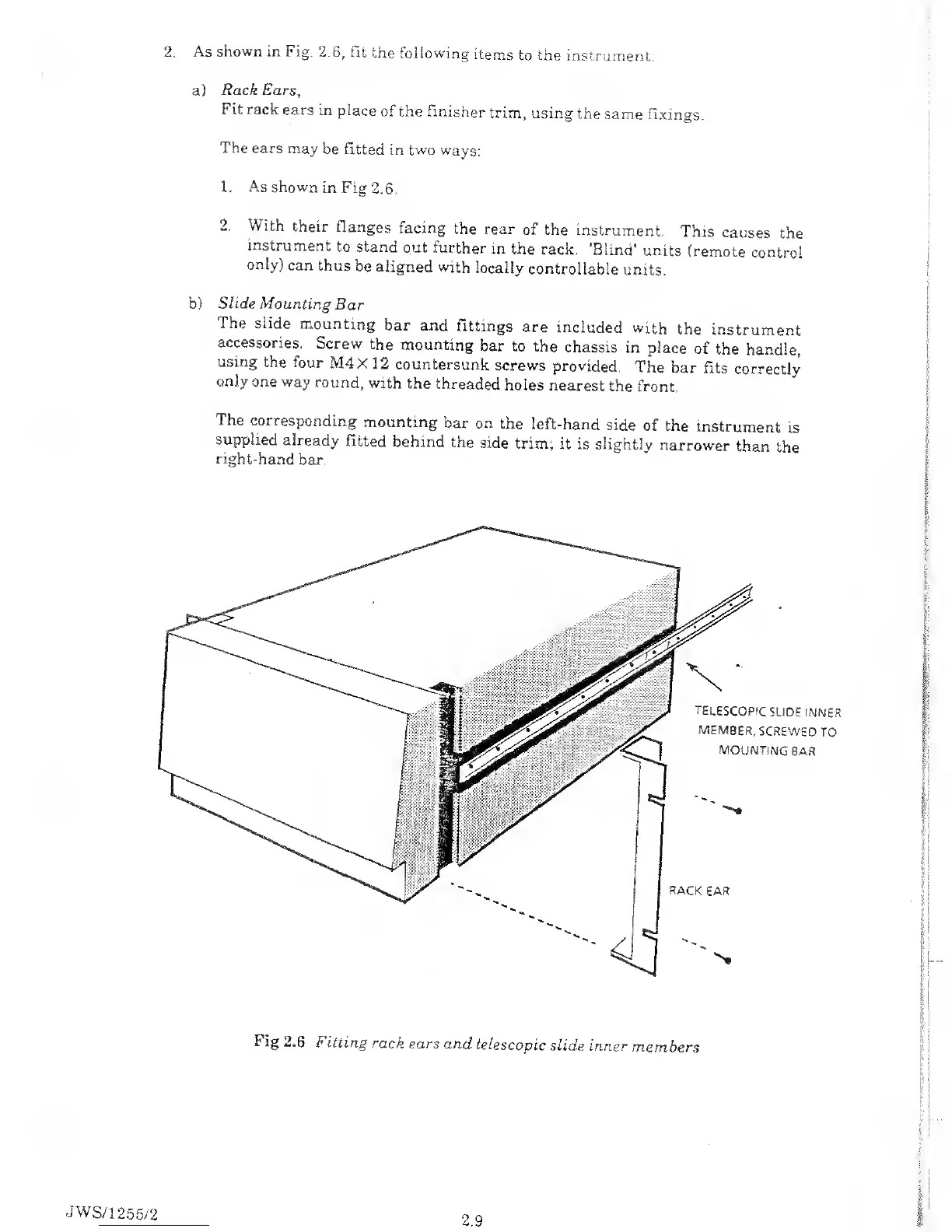

Fig
2,6
Fitting
rack
ears and
telescopic
slide inner
members
JWS/1
255/2
2.9
