c)
Telescopic Slide Inner
Members
The telescopic slides
are supplied
with inner and
outer members slotted together.
Slide out the inner
member as
shown in Fig
2.7,
depressing the
locking
catch
at
the halfway point..

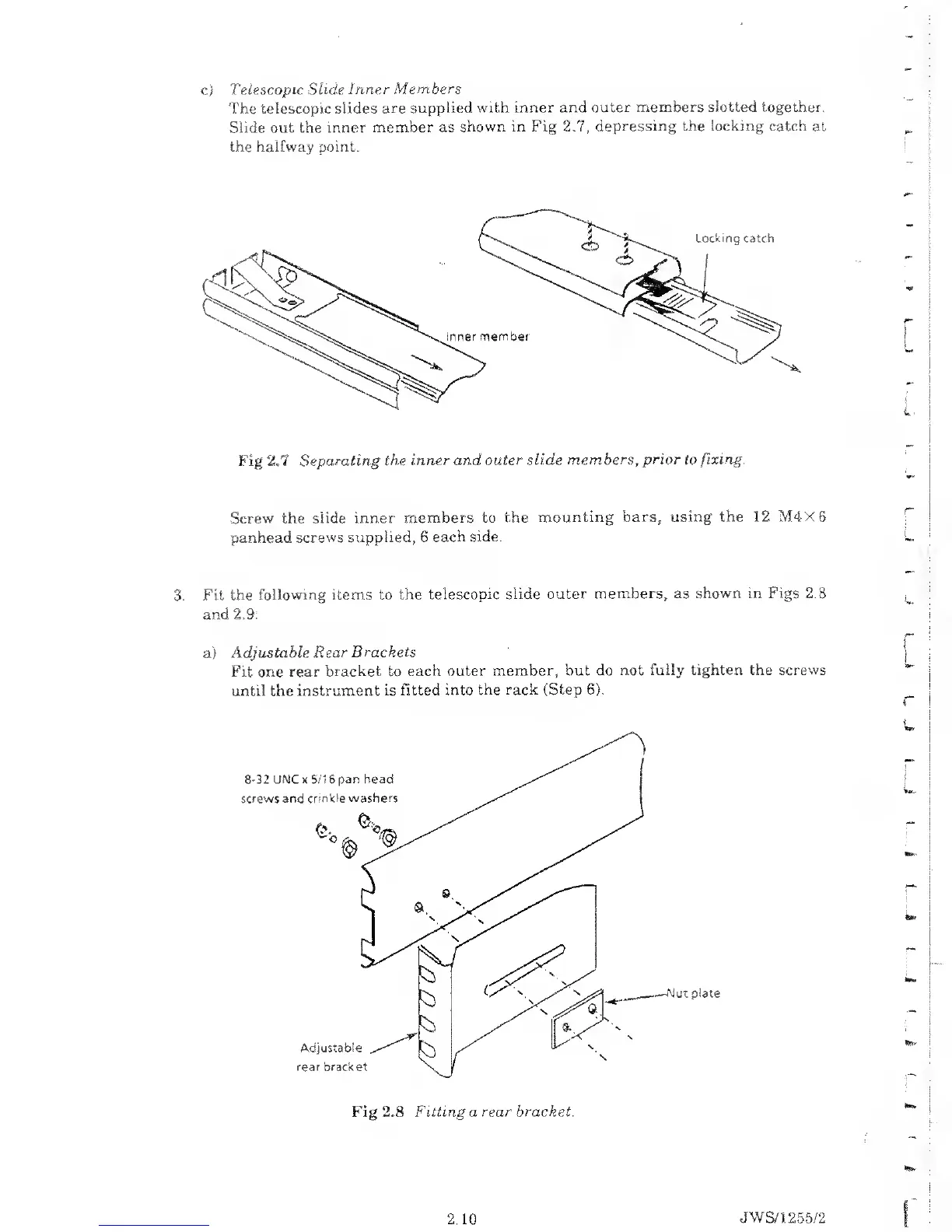

Fig 2.7 Separating
the inner and outer
slide members
,
prior
to fixing.
Screw the slide inner
members to
the mounting
bars* using the 12 M4X6
panhead screws
supplied,
6
each side.
3. Fit the following
items
to
the
telescopic slide
outer members, as
shown in
Figs 2.8
and
2,9:
a)
Adjustable Rear
Brackets
Fit one
rear bracket to each
outer member, but
do not
fully tighten the screws
until the
instrument is Fitted into
the rack (Step 6).
Fig 2.8
Fitting
a
rear bracket.
2.10
JWS/1 255/2
