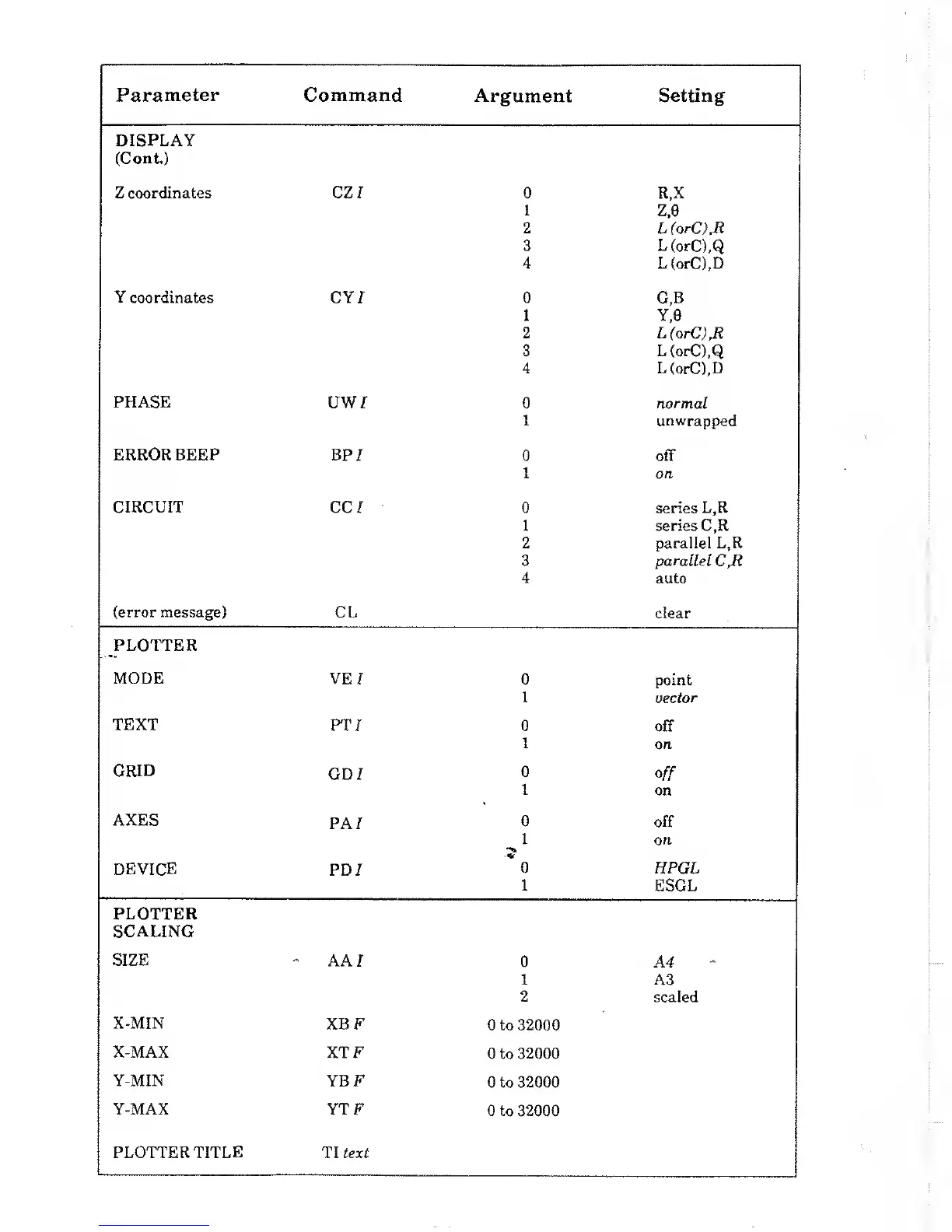

Solartron 1260 - Page 158

Parameter Command
Argument Setting
DISPLAY
(Conk)
Z coordinates cz /
0
R,X
1
Z,8
2
L (orC),R
3 L (orC),Q
4
L (orC),D
Y coordinates
CY / 0 G,B
1
Y,0
2
L(orC),R
3
L (orC),Q
4
L (orC),D
PHASE
UW
/
0
normal
1 unwrapped
ERROR BEEP BP/
0 off
I on
CIRCUIT
CC / 0
series L,R
1 series C,R
2 parallel
L,R
3
parallel
C,R
4
auto
(error message)
CL
clear
PLOTTER
MODE
VEl
0
point
1
vector
TEXT
PT /
0
off
1
on
GRID
GDI
0
off
1 on
AXES
PA/
0
off
1
on
DEVICE
PD/
0
HPGL
1
ESGL
PLOTTER
SCALING
SIZE
•*
AA
/
0 A4
1
A3
2
scaled
X-MIN
XB F
0 to
32000
X-MAX
XT F
0 to
32000
Y-MIN YB F
0 to
32000
Y-MAX YT
F
0 to 32000
PLOTTER TITLE TI text
