Solartron 1260 - Page 77

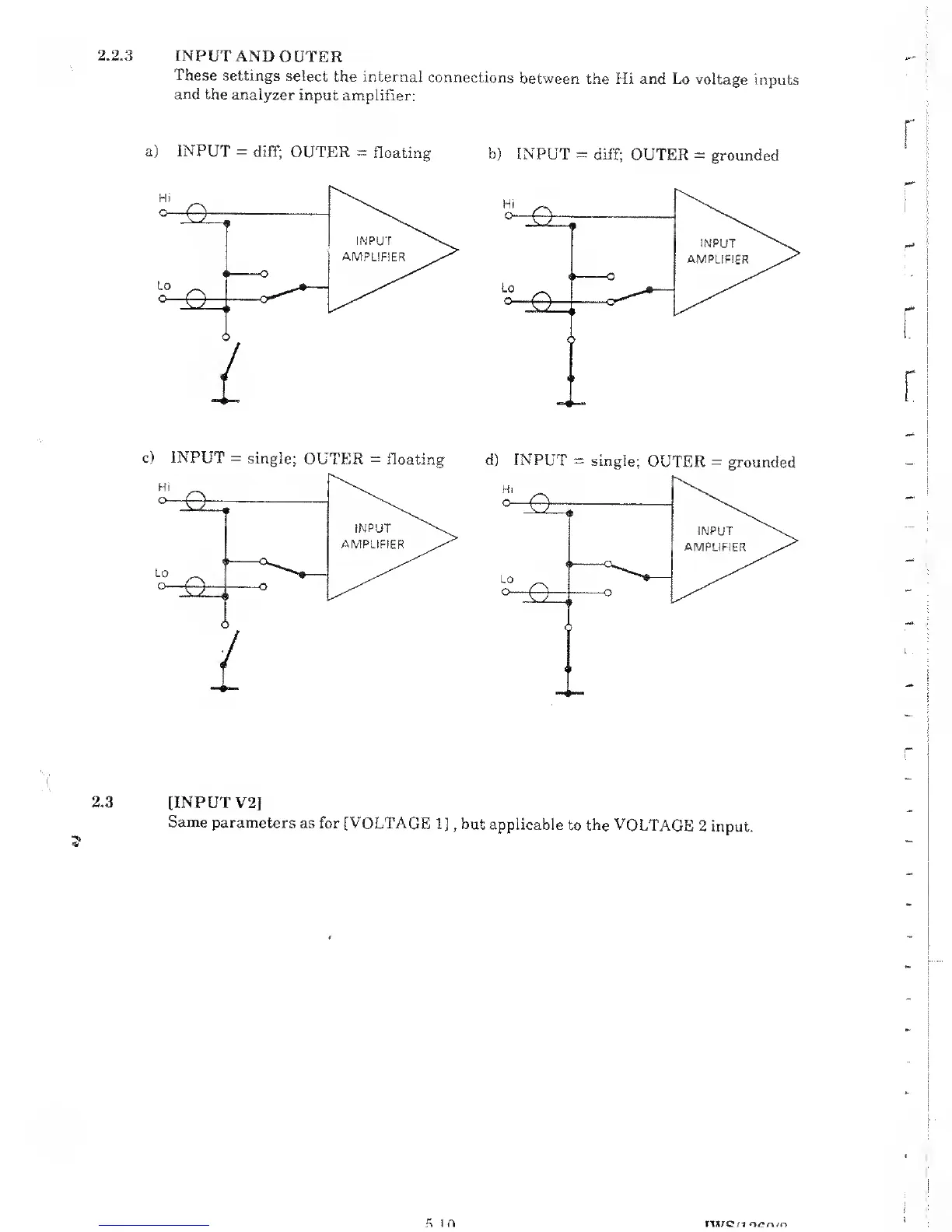

2.2.,
3 INPUT
AND
OUTER
Ihese
settings
select the
internal
connections
between
the Hi and Lo voltage
inputs
and the
analyzer
input
amplifier:
a) INPUT
=
difT;
OUTER
=
floating
b) INPUT
=
diff;
OUTER
= grounded
c) INPUT
=
single;
OUTER
=
floating
d)
INPUT
=
single;
OUTER
= grounded
2.3 [INPUT
V2]
Same
parameters
as for
[VOLTAGE
1]
,
but
applicable
to the
VOLTAGE
2 input.
5 in n*7C/l Oi?A/n
