3-10
BVW-55 P2

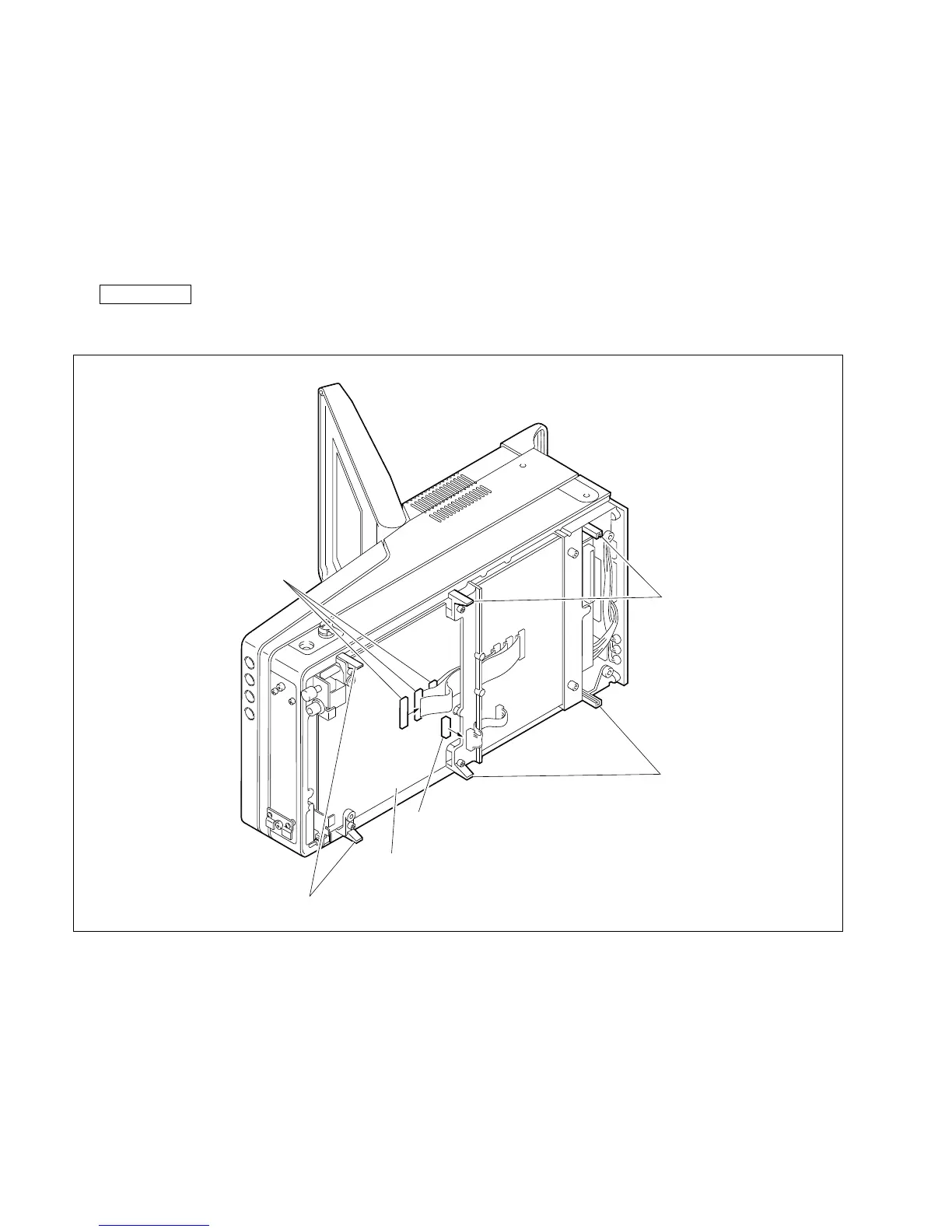

3-1-8. Mechanical Deck Assembly Removal and Installation
1. Remove the bottom plate. (Refer to the maintenance manual Part 1, Section 1-6.)
2. Remove the DM-121 board. (Refer to the maintenance manual Part 1, Section 1-8.)
3. Disconnect three flexible card wires from the connectors (CN301, CN302, and CN303) on the
SV-206 board.
4. Disconnect the harness from the connector (CN901) on the SV-206 board.
5. Put the unit back to the original position.
Reference
The frame has four feet, therefore, the unit can be put the original position even if there is no bottom
plate.
CN901
CN301, CN302, CN303
Feet
SV-206 board
Feet
Feet
3-1. General Information on Parts Replacement and Alignment
