3-14. S Reel Motor Replacement
Outline
Replacement
S reel motor removal
S reel motor installation
Adjustment after replacement
S REEL FG DUTY adjustment
Tape running adjustment
Precaution
Remove the mechanical deck assembly from the unit when the S reel motor is rep
laced. Be careful not to damage the video heads, drum, and other parts during
removal.
Preparations
1. Turn off the power.
2. Remove the mechanical deck. (Refer to Section 3-1-8.)
Tools
. Hexagon bit (Across flat has 1.5 mm): J-6326-120-A
. Torque screwdriver bit (for M1.4): J-6325-110-A
. Torque screwdriver bit (for M2): J-6325-380-A
. Torque screwdriver (for 3 kg): J-6325-400-A
3-14. S Reel Motor Replacement
Removal
1. S reel motor removal

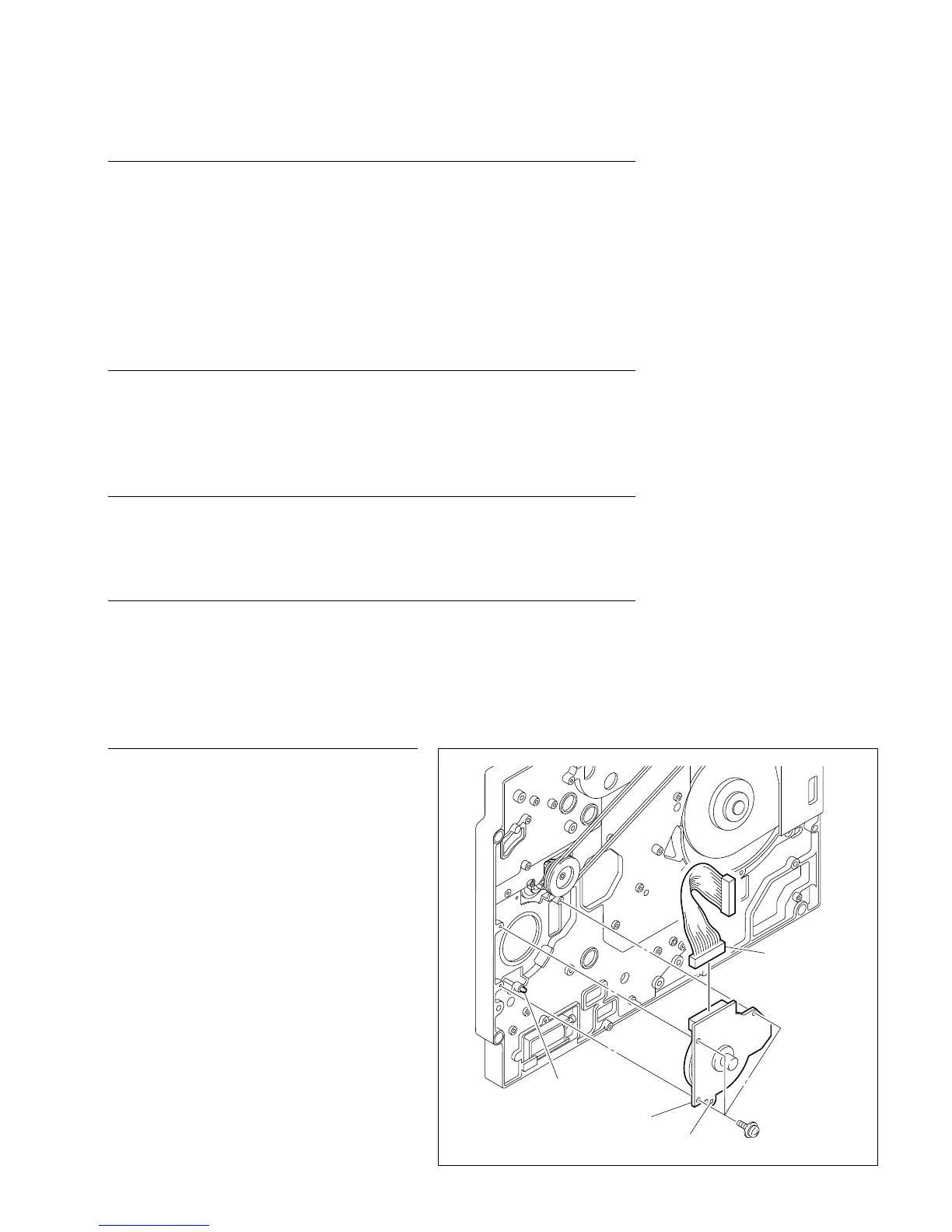

(1) Remove the three screws, then remove the S
reel motor.
(2) Disconnect the harness from the board of the
S reel motor. Be careful not to lose the
harness because it is used again.
PSW2 x 5
Positioning hole
Positioning pin
Harness
S reel motor
To Next Page
