3-52
BVW-55 P2

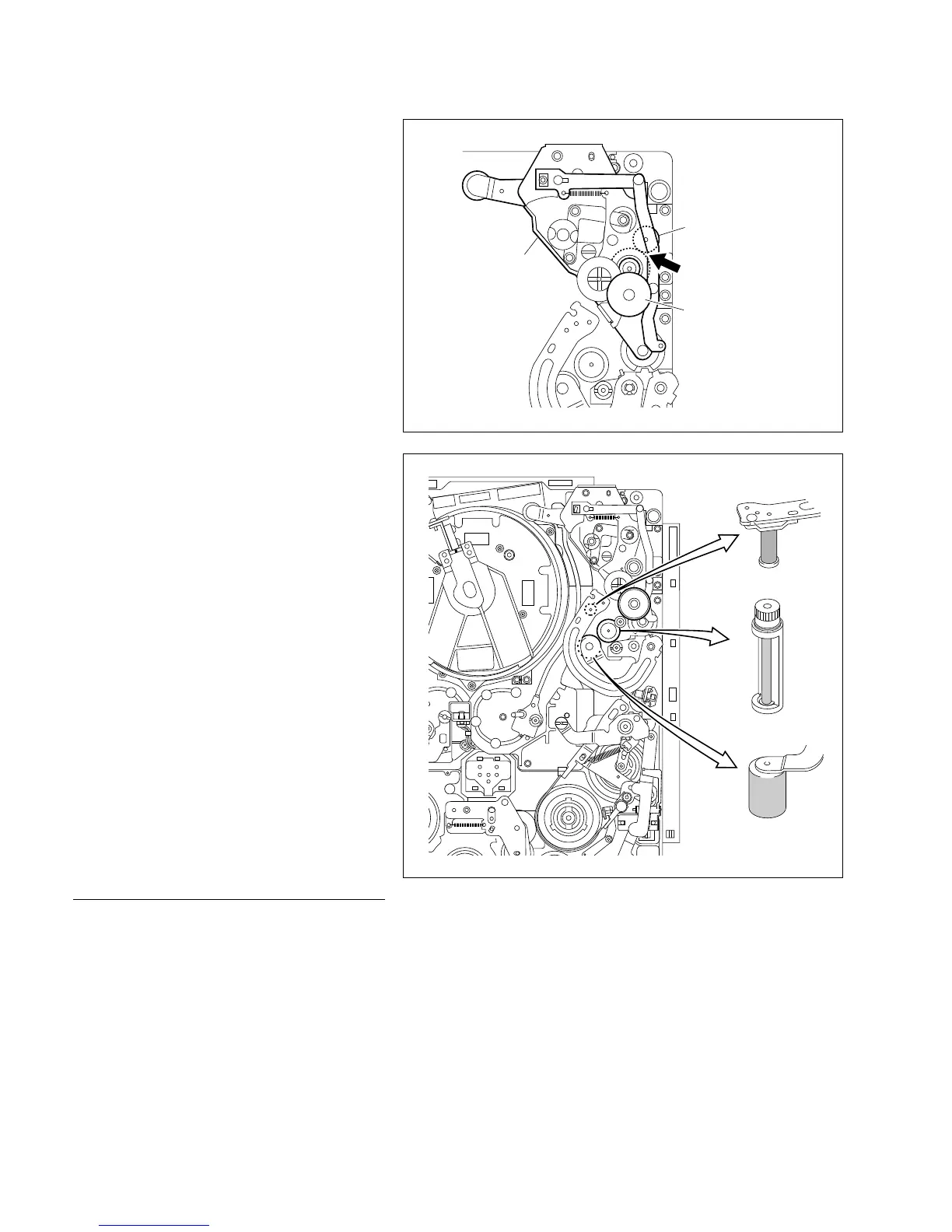

6. VH cleaner assembly installation
(1) Install the VH cleaner assembly with two
screws.
[Tightening torque: 9 x 10
_2
N.m
{0.9 kgf.cm}]
(2) Confirm that the gear of the VH cleaner
assembly is engaged with the gear of the gear
box when the manual eject knob is pushed
down.
(Type B)
7. Cleaning
Clean the surfaces of the capstan motor’s shaft,
T3 guide, and pinch roller with cleaning cloth
moistened with cleaning fluid.
Adjustment after replacement
8. CAPSTAN FG DUTY adjustment
(Refer to Section 2-2-2.)
(A002 : CAPSTAN FG DUTY)
9. CAPSTAN FRICTION adjustment
(Refer to Section 2-2-2.)
(A003 : CAPSTAN FRICTION)
10. CAPSTAN FREE SPEED adjustment
(Refer to Section 2-2-2.)
(A004 : CAPSTAN FREE SPEED)
3-13. Capstan Motor Replacement
11. Tape running adjustment
(Refer to Section 5-4.)
12. Video tracking check
(Refer to Section 5-5.)
VH cleaner assembly
Gear of gear box
Engaging
Manual eject knob
(push down)
Pinch roller
Capstan
T3 tape guide
To Next Page
