3-6. Video Head Cleaner Replacement
Outline
Replacement
VH cleaner assembly removal
Cleaning roller replacement
VH cleaner assembly installation
Operation check
Precautions
. The video head cleaner can be replaced with the cassette compartment attached.
. The following new CR cap is required when replacing the video head cleaner.
CR cap: 3-615-320-01
Preparations
1. Put the unit into the unthreading end state.
2. Turn off the power.
3. Remove the upper frame.
(Refer to the maintenance manual Part 1, Section 1-6.)
Tools
. Torque screwdriver bit (for M1.4): J-6325-110-A
. Torque screwdriver (for 3 kg): J-6325-400-A
3-6. Video Head Cleaner Replacement
Replacement

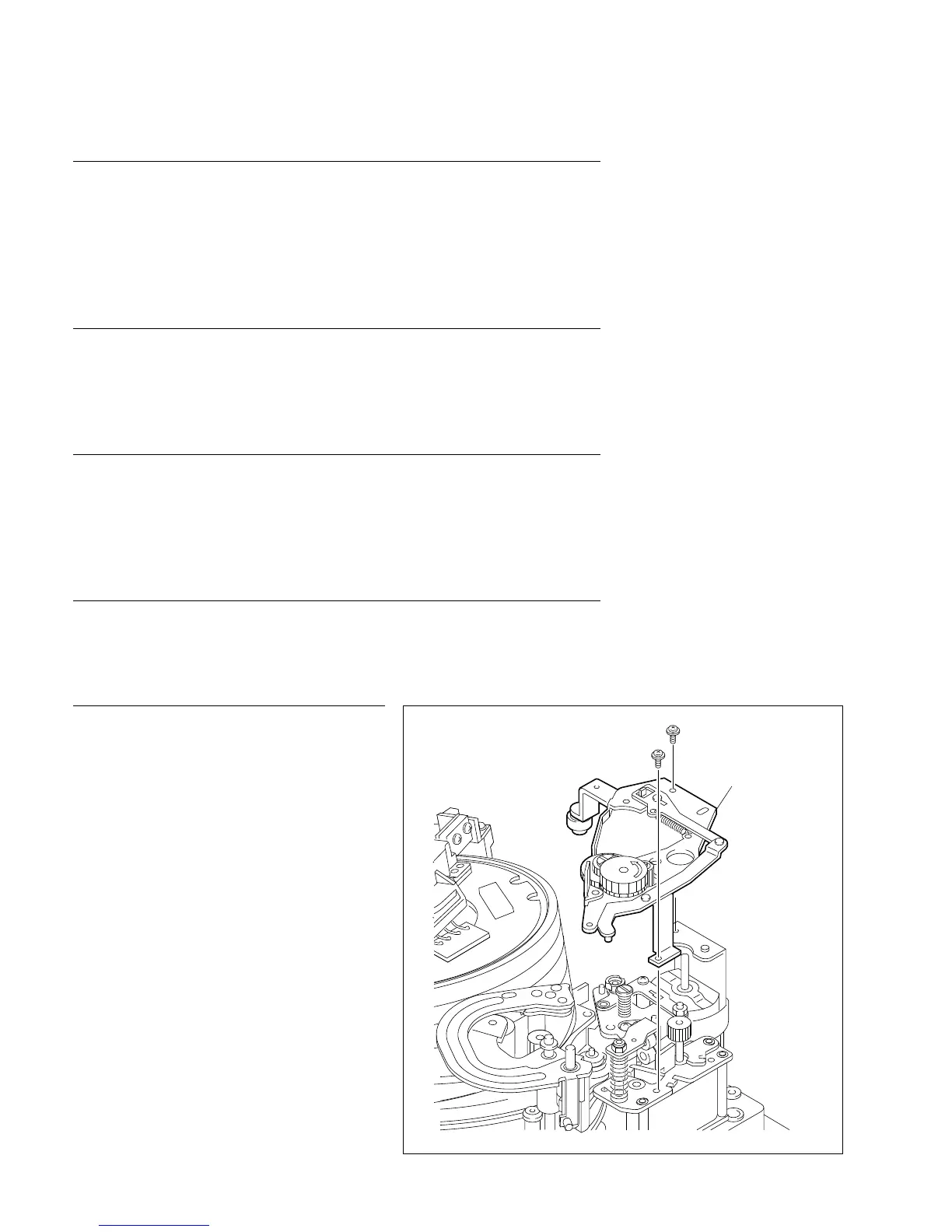

1. VH cleaner assembly removal
Remove the two screws, then remove the VH
cleaner assembly.
PWH1.4 x 3.5
VH cleaner assembly
