1-16
BVW-55
1-6-3. Connector Panel
c
The unit is equipped with shielding springs which have sharp edges.
Do not touch them with bare hands. Pay careful attention when servicing.
1. Fully loosen the four screws of the connector panel.
n
Each screw is held by a stop washer. Do not separate the washer from the screw when loosening.

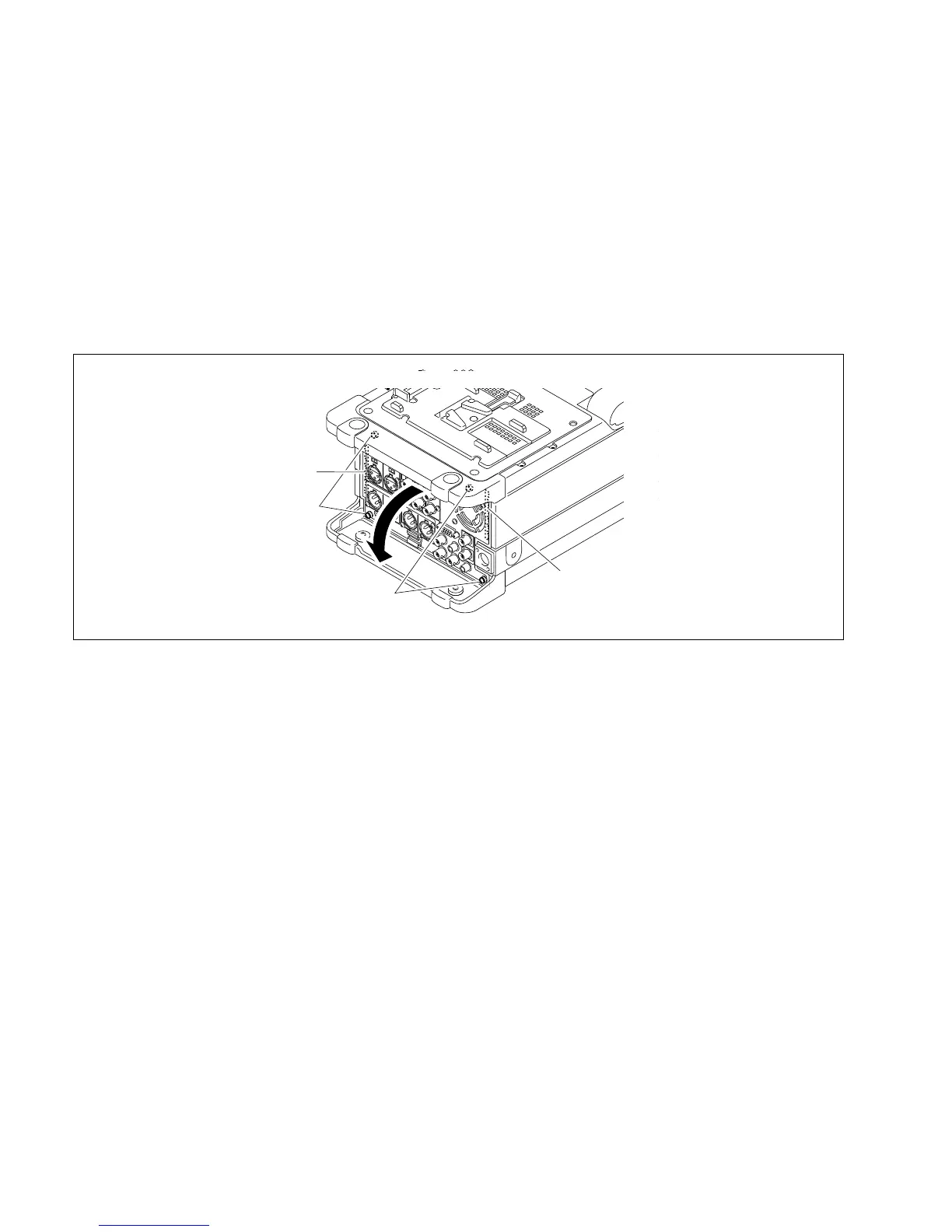

2. Open the connector panel in the direction of the arrow.
3. Reinstall the connector panel in the reverse order of removal.
1-6. Removing/Reinstalling the Cabinet
Shielding spring
Shielding spring
Screws
Screws
