1-17
BVW-55
1-6-4. Bottom Plate
1. Lay the unit as shown in the figure. Open the display panel for stability.
2. Loosen the four screws securing the bottom plate fully.
n
Each screw is held by a stop washer. Do not separate the washer from the screw when loosening.
3. Remove the bottom plate while drawing the rear of the plate in the direction of the arrow.
n
Be careful not to get snagged on the knob when removing the bottom plate.
4. Reinstall the bottom plate in the reverse order of removal.

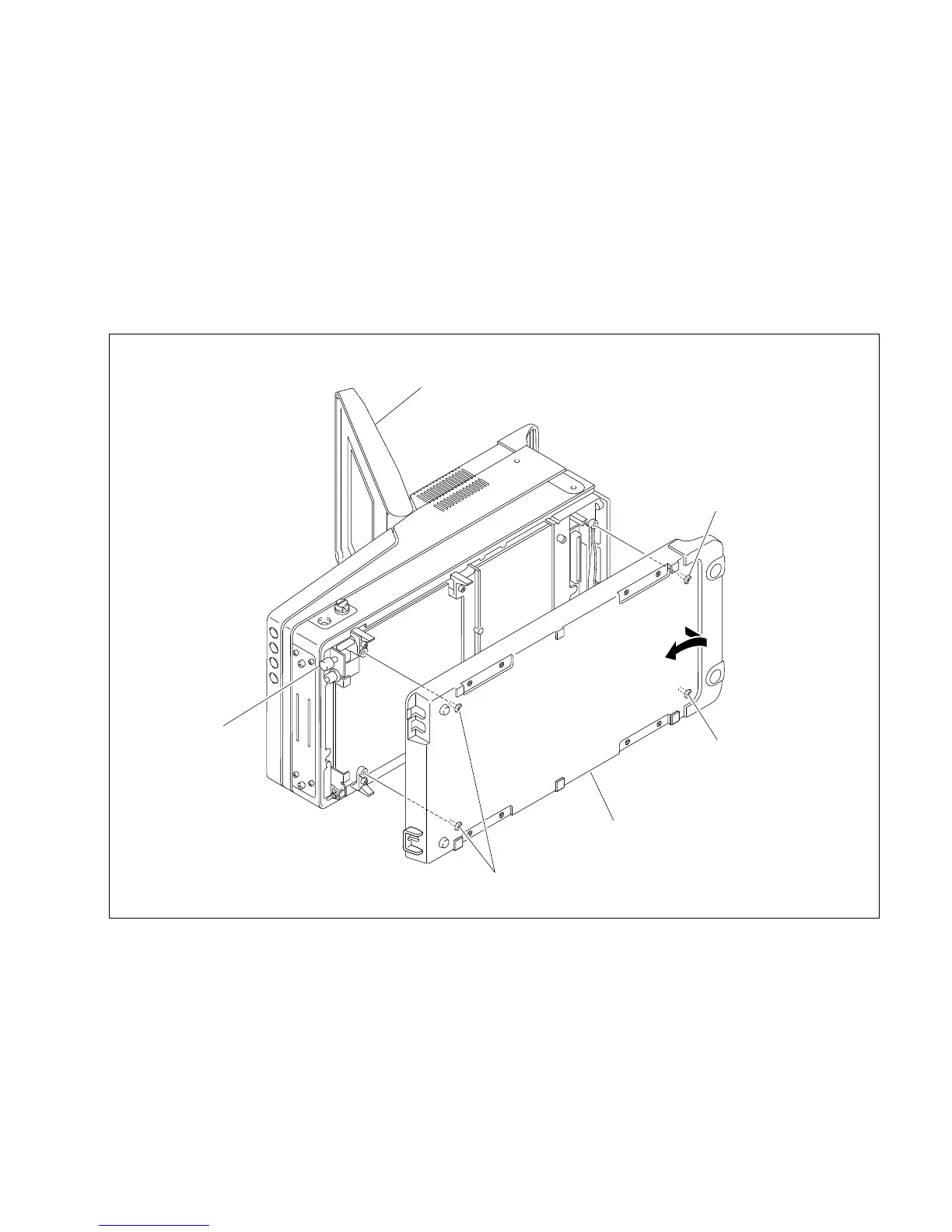

1-6. Removing/Reinstalling the Cabinet
Screws
Knob
Bottom plate
Display panel
Screw
Screw
