3-3
BVW-55 P2
3-1-3. Threading End and Unthreading End States
1. Threading end state

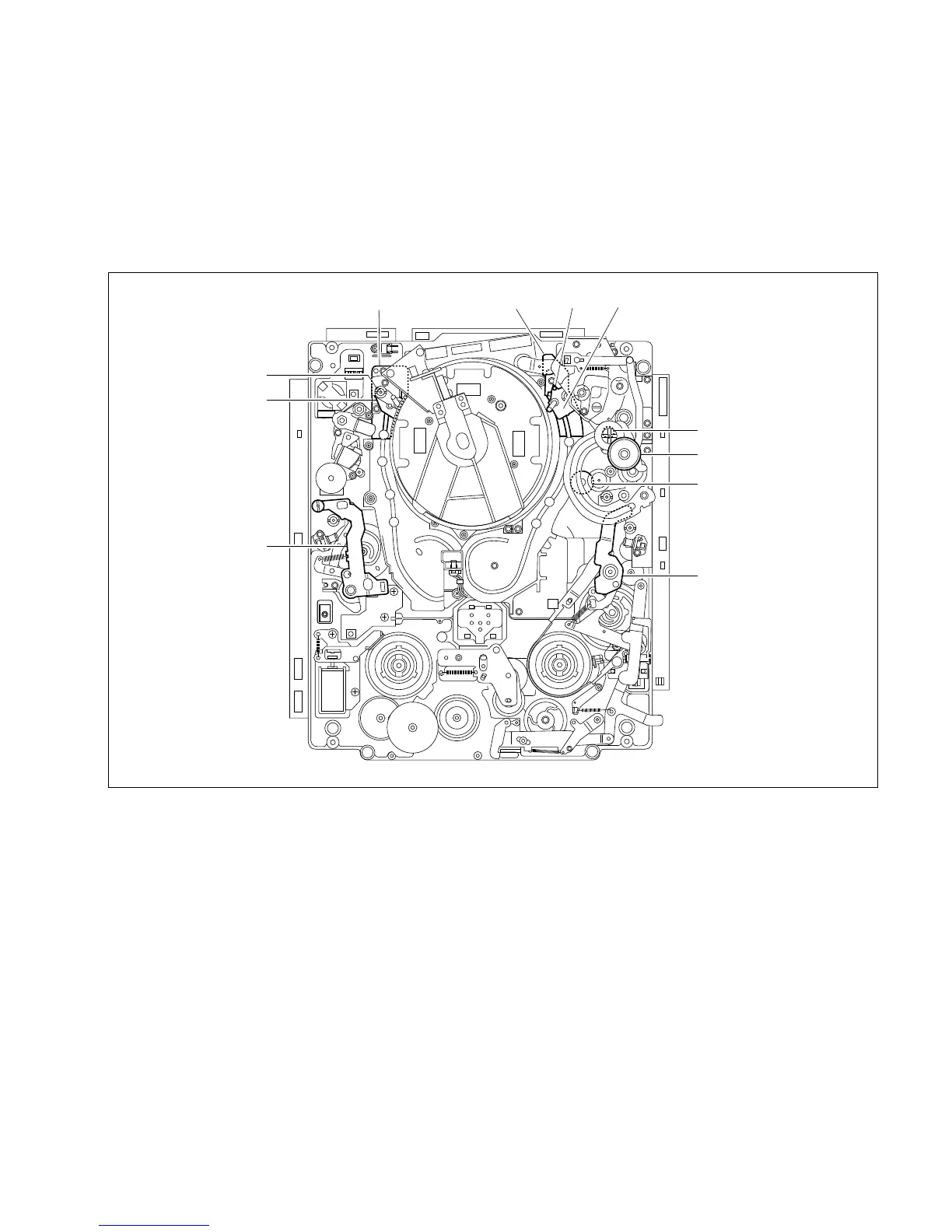

In the threading end state, the S and T sliders move from the reel table side to both sides of the drum and
the pins of the S and T sliders stop in the V grooves of each catcher. At the same time, the S tension
regulator arm, T3 guide, pinch roller, and T tension regulator arm move to the positions shown in the
figure.
To enter the threading end state using tape
(1) Turn on the power.
(2) Insert a cassette tape into the cassette compartment.
(3) Close the control panel or cassette compartment.
To enter the threading end state manually
Turn the manual eject knob clockwise.
n
Stop the rotation of the manual eject knob if the mechanical deck is in the above mentioned threading end
state. If not, the related gears may be damaged.
3-1. General Information on Parts Replacement and Alignment
Manual eject knob
Pinch roller
T tension regulator arm
T3 guide (T drawer guide)
T slider
T catcher
Pin
Pin
S slider
S tension regulator arm
S catcher
To Next Page
