3-25
BVW-55 P2

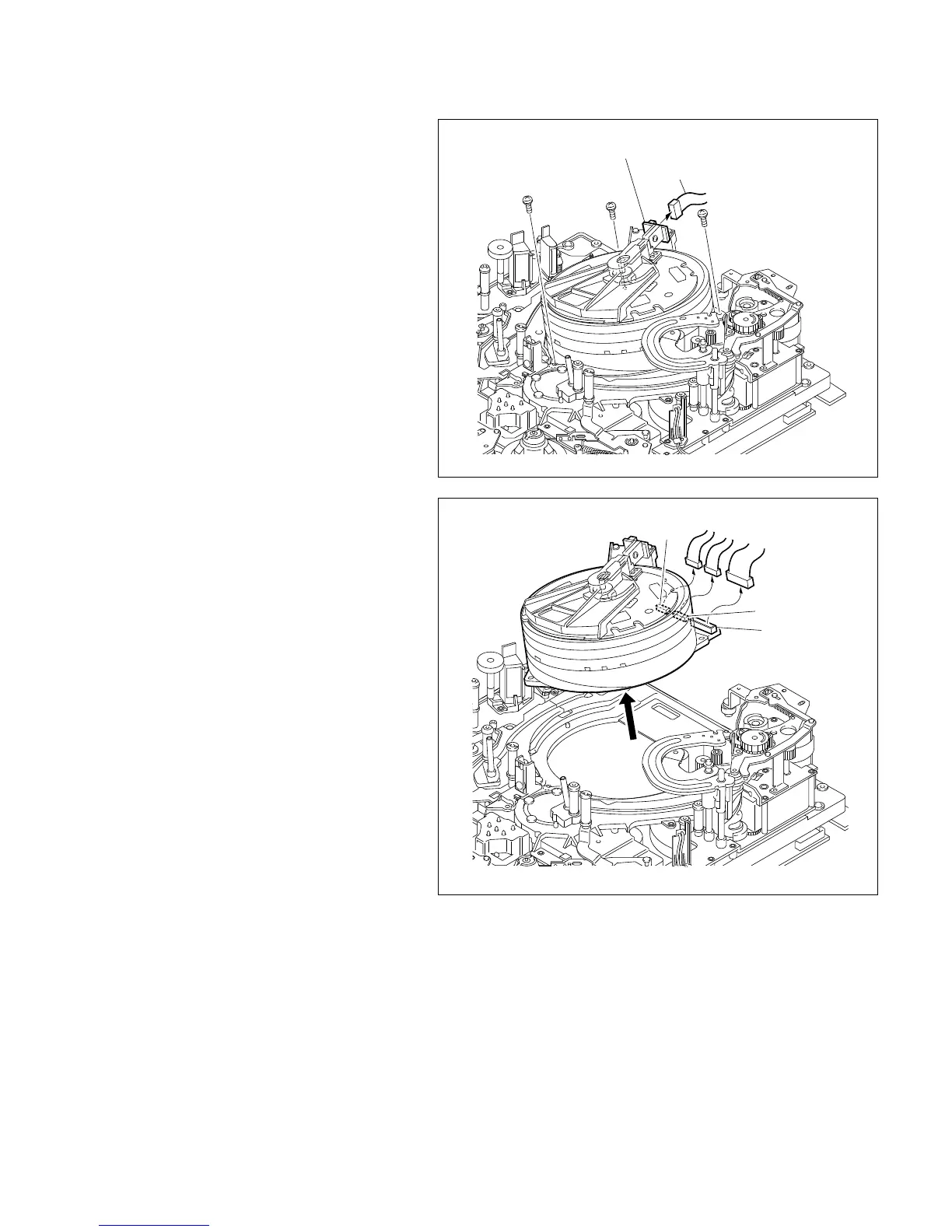

1. Drum assembly removal
(1) Remove the three screws fixing the drum
assembly.
(2) Disconnect the connector connected to the
brush board.
(3) Raise the drum assembly just above and
disconnect the three connectors (CN1, CN2
and CN3) connected to the board below the
drum. The drum assembly can be then
removed.
n
Be careful not to damage the CTL head, AT
head, and peripheral tape guides when
removing the drum assembly.
3-5. Drum Assembly Replacement
PS2 x 5
PS2 x 5
PS2 x 5
Harness
Brush board
CN3
CN1
CN2
To Next Page
