4-2
BVW-55 P2
Precision
P1.7 x 2.0
Loading motor pulley
Motor bracket
Motor
Precision
PWH1.4 x 3.5
Precision
PWH1.4 x 3.5
CN702
Threading motor
assembly
SV-206 board

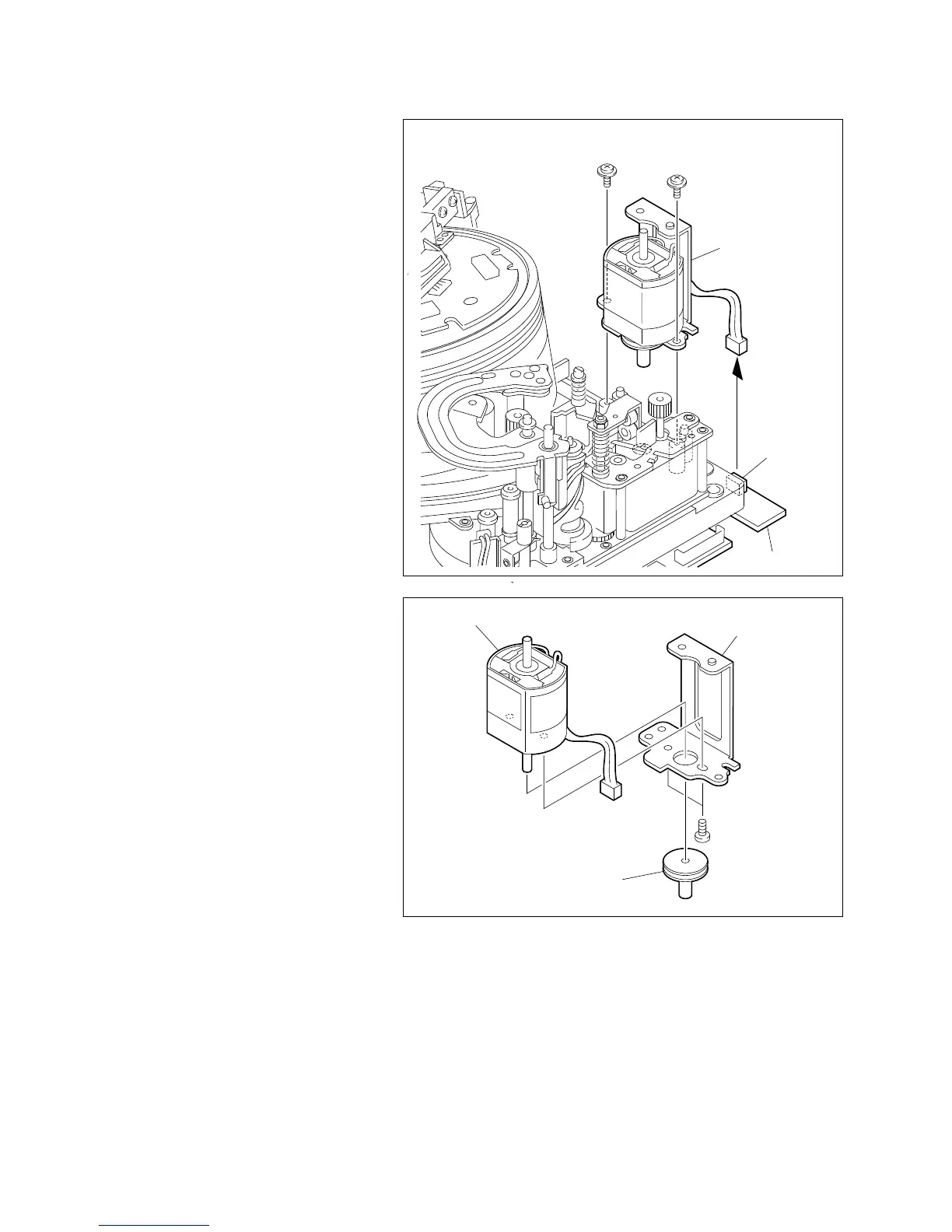

3. Threading motor assembly removal
(1) Disconnect connector CN702 on the SV-206
board.
(2) Remove the two precision screws, then
remove the threading motor assembly.
Leave the timing belt on the mechanical
deck.
4. Threading motor replacement
(1) Remove the two precision screws, and then
remove the motor from the motor bracket.
4-1. Threading Motor Replacement
