4-49
BVW-55 P2

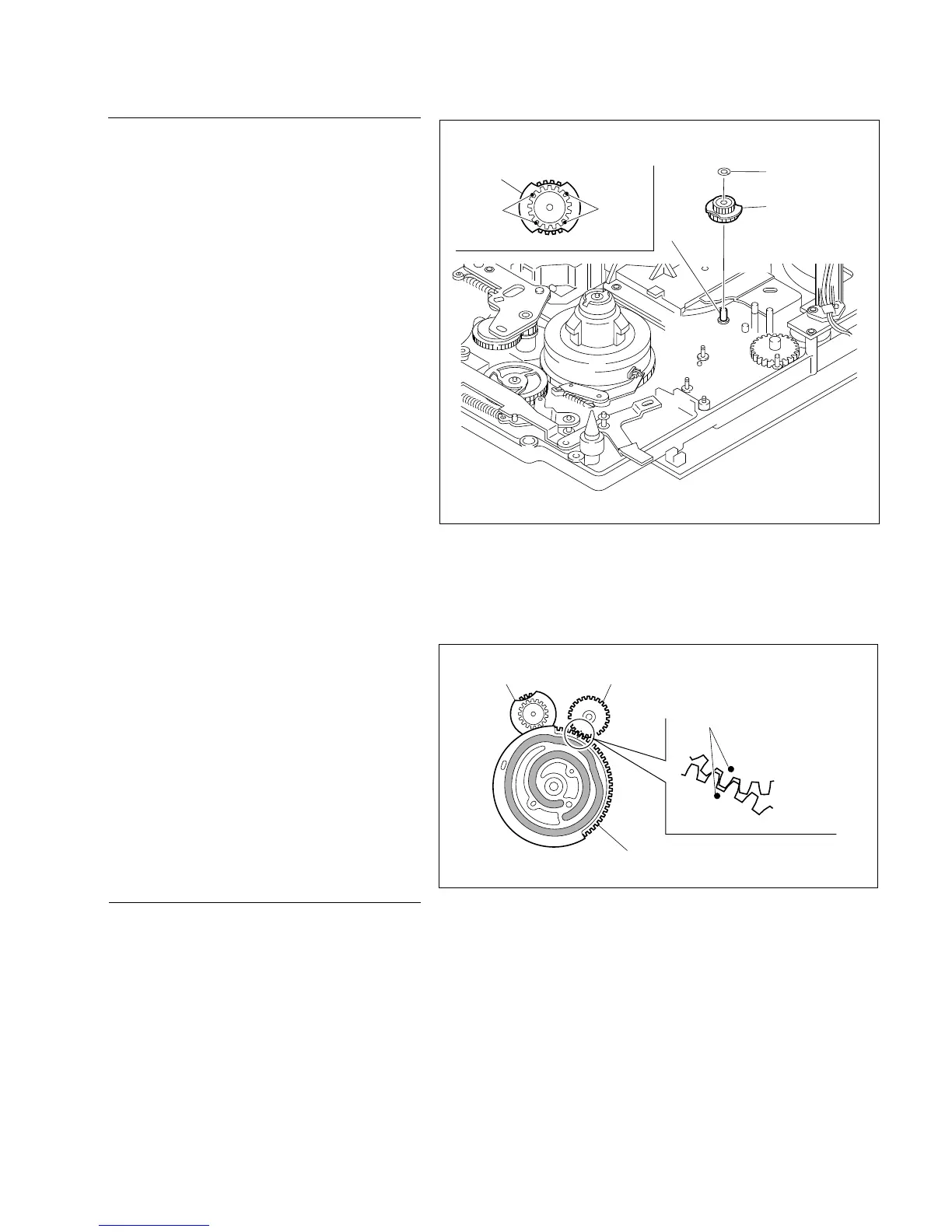

Intermittent gear
Shaft
Stop washer
Intermittent gear
Greases
Greases
Marking
Intermittent gear Midway gear
Cam gear assembly
Removal
1. Threading link assembly removal
Remove the threading link assembly.
(Refer to Section 4-5-9.)
2. Cam gear assembly removal
Remove the cam gear assembly.
(Refer to Section 4-13.)
n
Mark either of the tooth of the cam gear assembly
and the tooth of the midway gear which are
meshed each other, using a tweezers.
3. Intermittent gear replacement
(1) Remove the stop washer to remove the
intermittent gear.
(2) Apply one-quarter of a drop of oil to the shaft
of intermittent gear.
(3) Apply a rice-grain-sized amount of grease to
each of the four points on the upper and
lower part of the new intermittent gear.
(4) Secure the intermittent gear using a new stop
washer.
4. Cam gear assembly installation
Reattach the cam gear assembly.
(Refer to Section 4-13-7.)
Aligning the cam gear assembly to either notch of
the intermittent gear, reattach the cam gear
assembly.
5. Threading link assembly installation
Reattach the cam gear assembly.
(Refer to Section 4-5-11.)
Adjustment after replacement
6. Tape running check
(Refer to Section 5-4.)
7. REV back tension check
(Refer to Section 5-3-2.)
4-14. Intermittent Gear Replacement
