Sony BVW-55 - Page 327

4-55
BVW-55 P2
B2 x 4
CN3
B2 x 4
CN2
Inverter board
B2 x 4
B2 x 4
BVTT2 x 5
BVTT2 x 5
LCD monitor
Backlight
Backlight

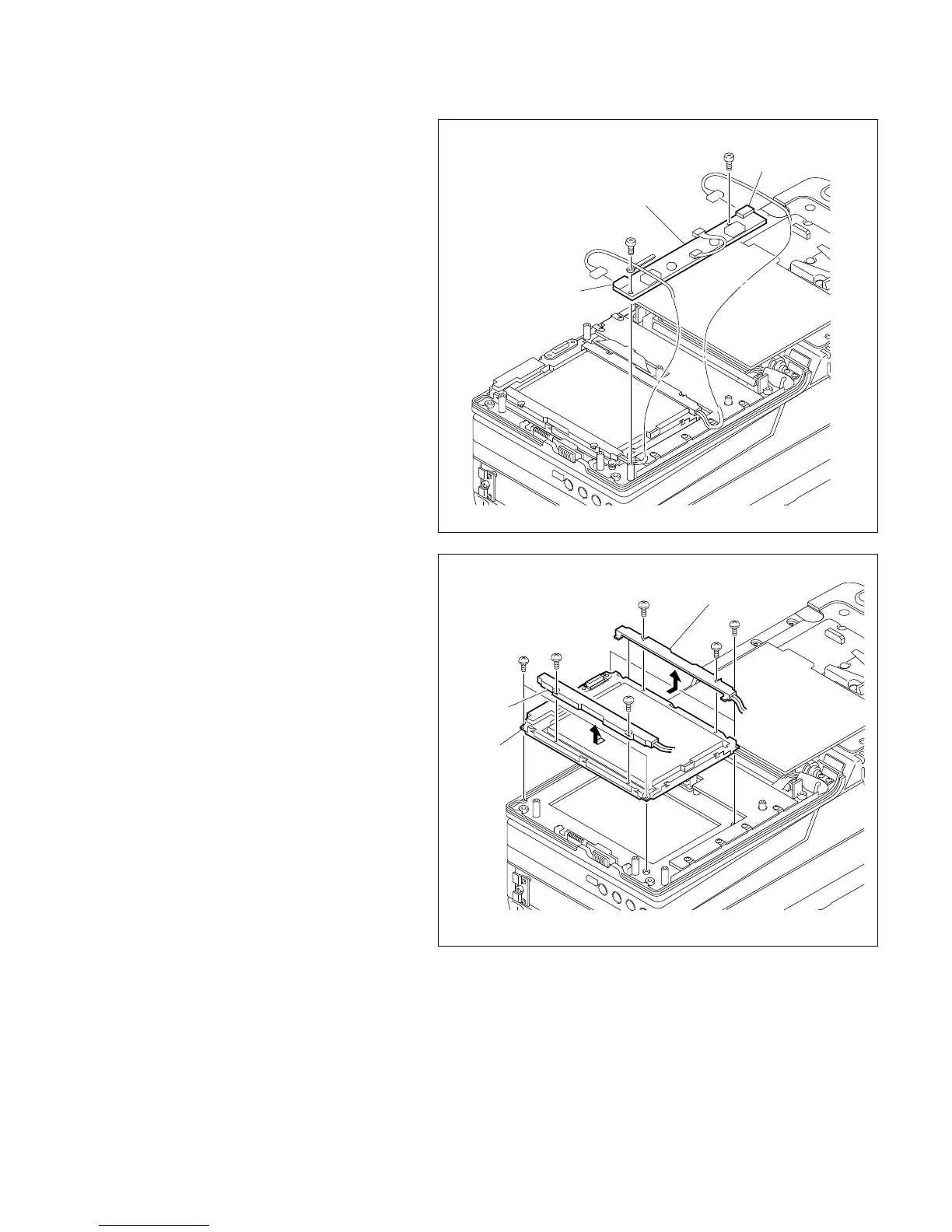

2. Backlights removal
(1) Remove the two screws, then remove the
inverter board.
(2) Disconnect the two harness connectors of the
backlights connected to CN2 and CN3 on the
inverter board.
(3) Remove the four screws to remove the LCD
monitor.
(4) Remove the four screws, then remove the
backlights by moving it in the arrow direc-
tion.
4-17-1. Backlight Replacement
