BVW-55
MD-122 Board
Switches
n
Do not change settings of the factory-use switches.
Ref.No. Switch name Description Factory setting
S101 Factory use ON
S102 Factory use ON
S301-1 NON LINEAR Turn on to enable the function of non-liner emphasis circuit OFF
EMPHASIS
S301-2 TEST Turn on when adjusting the Y/C clip OFF
1-9. Settings for Internal Switches/Slit Lands
S301
A
2
3
4
1
BCDEF

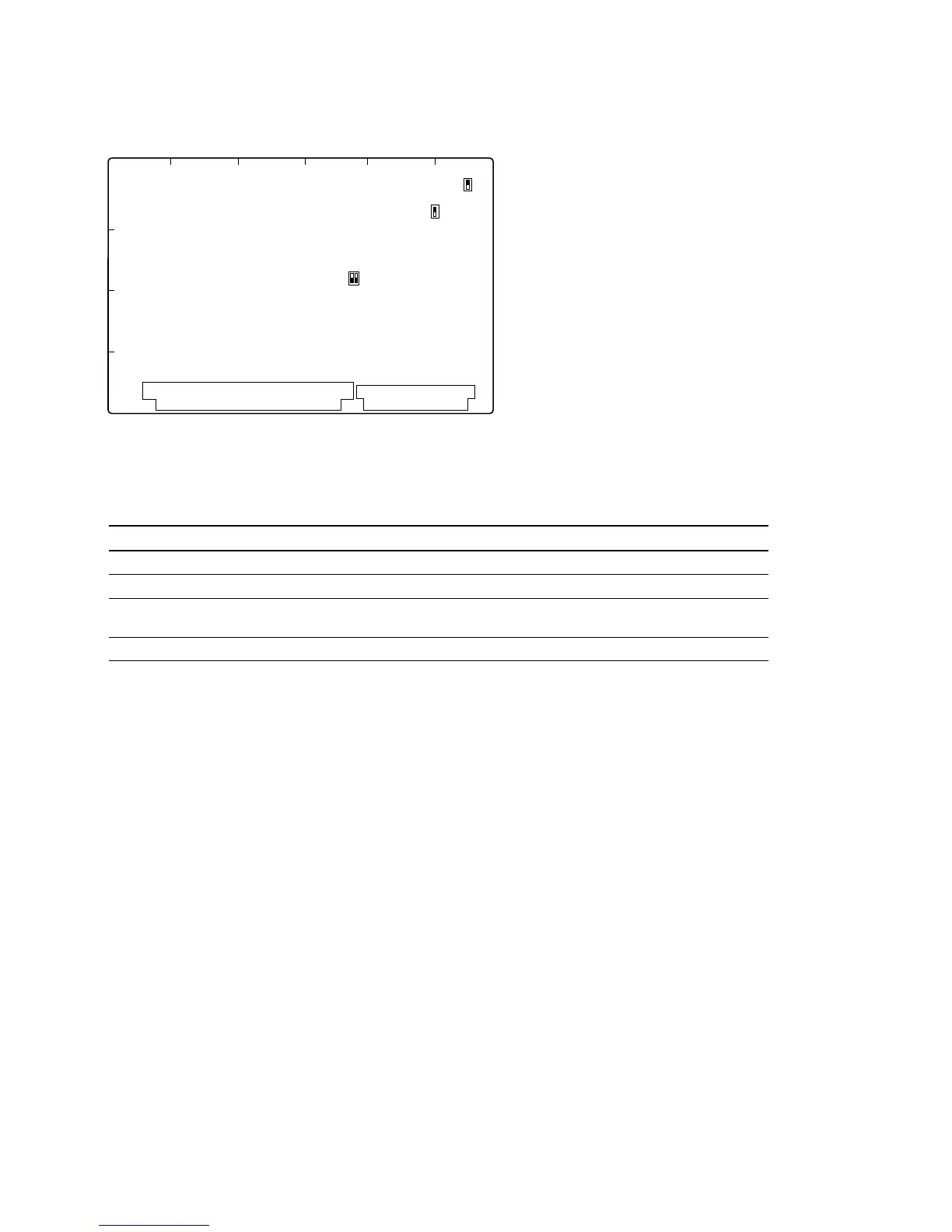

MD-122 Board (Side A)
ON
12
S101
S102

