1-1. DSR-2000
Location and Function of Parts
Chapter 1 Overview
28
Chapter 1 Overview

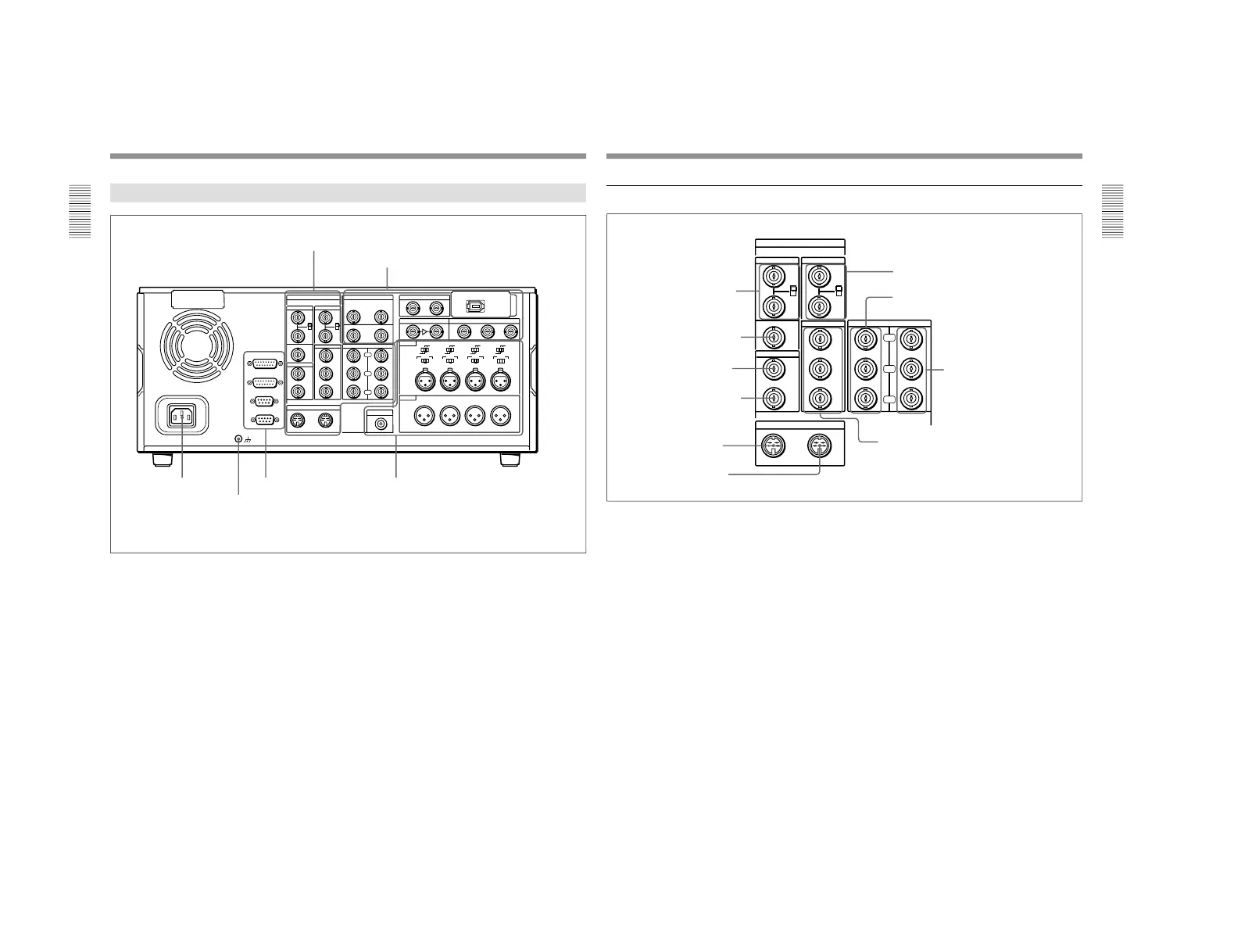

Connector Panel
REF.VIDEO
ANALOG VIDEO I/O DIGITAL AUDIO I/O(AES/EBU) SDTI(QSDI)
SDI INPUT SDI OUTPUT
i.LINK
S VIDEO
TIME CODE
MONITOR AUDIO
AUDIO IN
LEVEL
AUDIO OUT
OUT
OUT
OUT
OUT
OUT
(SUPER)
(SUPER)
IN
IN
IN
INPUT OUTPUT
IN
1
123
2
3
IN
REMOTE-OUT
REMOTE-IN
VIDEO CONTROL
~AC IN
CONTROL PANEL
CH-1
CH-2
CH-3
CH-4
CH-1
0dBm
HIGHLOW
OFF
-6dBm +4dBm
CH-2 CH-3
CH-4
OFF
ON
75Ω
VIDEO IN
VIDEO OUT
COMPONENT VIDEO
CH-1/2
CH-1/2
CH-3/4
CH-3/4
OFF
ON
75Ω
Y
R-Y
B-Y
0dBm
-6dBm +4dBm
0dBm
-6dBm +4dBm
0dBm
-6dBm +4dBm
ON -600 Ω
LEVEL
HIGHLOW
OFF
ON -600 Ω
LEVEL
HIGHLOW
OFF
ON -600 Ω
LEVEL
HIGHLOW
OFF
ON -600 Ω
1 AC IN
connector
2 Ground terminal
1 Analog video input/output section
(see page 29)
2 Digital input/output section
(see page 30)
3 External device connectors
(see page 31)
4 Analog audio input/output section
(see page 31)
This figure shows the connector panel fitted with the optional DSBK-190 i.LINK/DV Input/Output Board.
1 AC IN connector
Use the optional power cord to connect this to an AC
outlet.
2 Ground terminal
Connect this to ground.
Chapter 1 Overview
Chapter 1 Overview
29
1 Analog video input/output section
REF.VIDEO
ANALOG VIDEO I/O
S VIDEO
TIME CODE
OUT
OUT
OUT
OUT
(SUPER)
IN
IN
IN
1
2
3
IN
OFF
ON
75Ω
VIDEO IN
VIDEO OUT
COMPONENT VIDEO
OFF
ON
75Ω
Y
R-Y
B-Y
5 S VIDEO IN connector
1 REF. VIDEO IN connectors
and 75Ω termination switch
2 REF. VIDEO OUT connector
3 TIME CODE IN connector
4 TIME CODE OUT connector
6 S VIDEO OUT connector
7 VIDEO IN connectors and 75Ω termination
switch
8 COMPONENT VIDEO Y/R−Y/B−Y IN
connectors
9 COMPONENT VIDEO Y/R−Y/
B−Y OUT connectors
!º VIDEO OUT 1, 2, and 3 (SUPER) connectors
1 REF. (reference) VIDEO IN connectors (BNC
type) and 75Ω termination switch
Input a reference video signal to one of these
connectors. The two connectors can be used for a loop-
through connection. When making a loop-through
connection, set the termination switch to OFF, and
when not, set the switch to ON.
2 REF. (reference) VIDEO OUT connector (BNC
type)
This connector outputs a reference video signal, except
when i.LINK is selected in the input selection section
(see page 14).
3 TIME CODE IN connector (BNC type)
Input SMPTE time code (DSR-2000) or EBU time
code (DSR-2000P) externally generated to this
connector.
4 TIME CODE OUT connector (BNC type)
This connector outputs a time code according to the
operating state of the unit, as follows:
During playback: the playback time code
During recording: the time code generated by the
internal time code generator or the time code input
to the TIME CODE IN connector.
For more information about the time code output during
recording, see extended setup menu item 611.
5 S VIDEO IN connector (4-pin)
Input an S-video signal with separated Y (luminance)
and C (chroma: 3.58 MHz for DSR-2000 or 4.43 MHz
for DSR-2000P) components to this connector.
6 S VIDEO OUT connector (4-pin)
This connector outputs an S-video signal with
separated Y (luminance) and C (chroma: 3.58 MHz for
DSR-2000 or 4.43 MHz for DSR-2000P) components.
7 VIDEO IN connectors (BNC type) and 75Ω
termination switch
Input an analog composite video signal to one of these
connectors. The two connectors can be used for a loop-
through connection. When making a loop-through
connection, set the 75Ω termination switch to OFF and
when not, set the switch to ON.
