3-3
HDS-7150/7100
Procedures

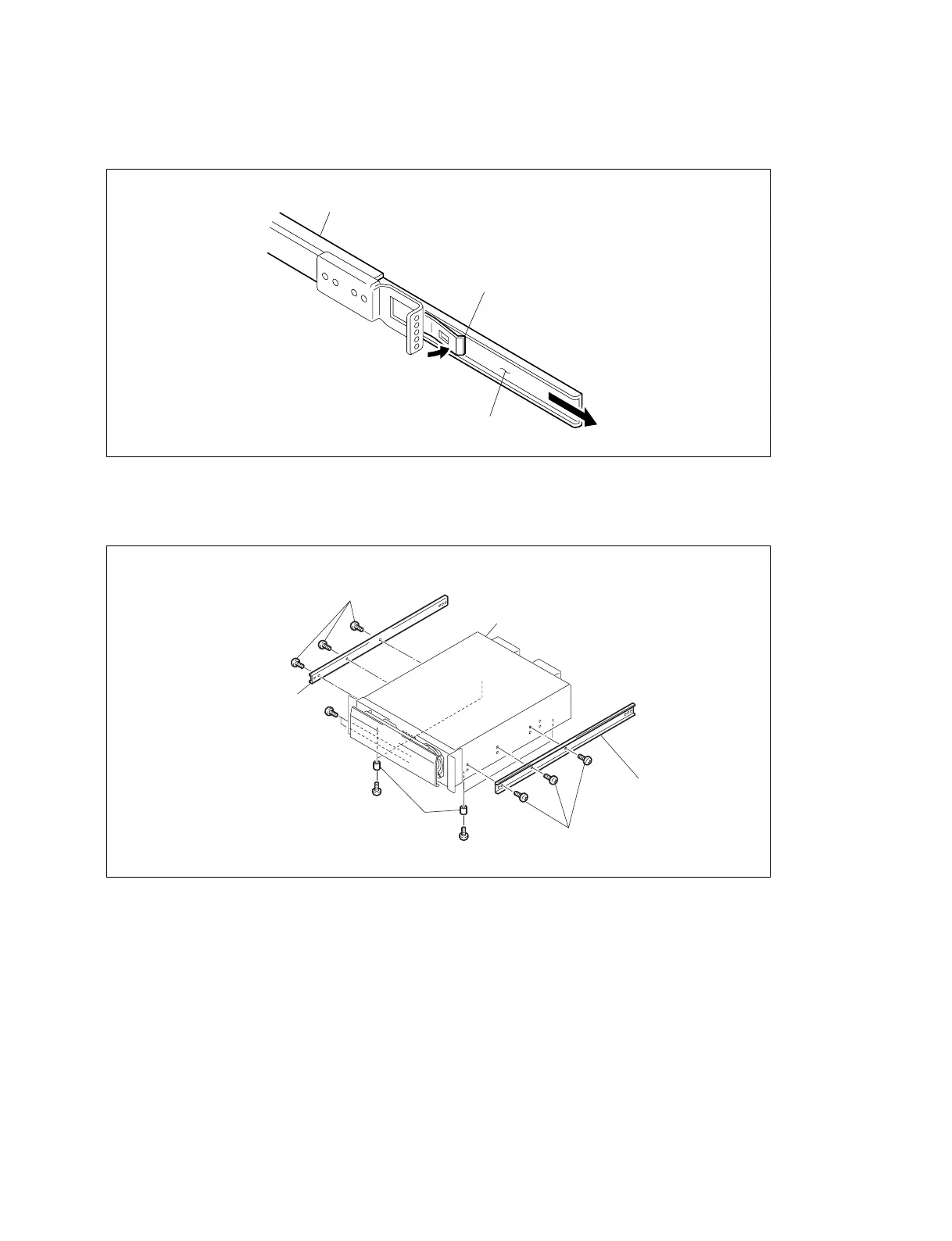

(1) Pull out the inner member while pressing the stopper of the RMM-30.
(2) Secure the two inner members to the HKDS-7695/7695A by the six screws (B4 x 8) supplied with
the RMM-30.
(3) Remove the feet of the HKDS-7695/7695A.
HKDS-7695/7695A
3-2. Rack Mounting
Outer member
Stopper
Inner member
Feet
B4 x 8
B4 x 8
Inner member
Inner member
HKDS-7695/7695A
