3-7
HDS-7150/7100
HKDS-7695/7695A
3-3. Notes when Using HKDS-7695/7695A without Mounting in a Rack
3-4. Matching Cables

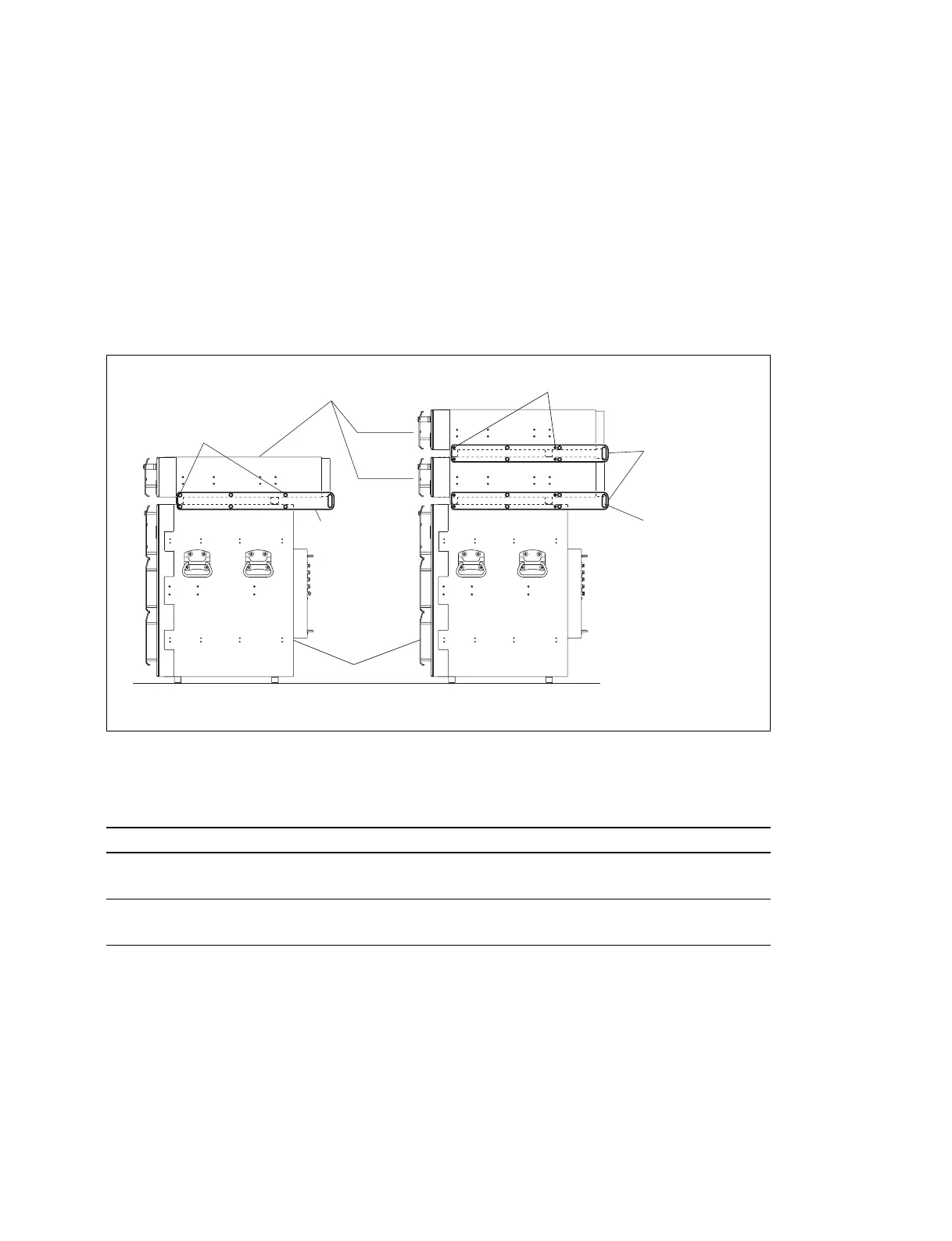

3-3. Notes when Using HKDS-7695/7695A without Mounting in a Rack
When the HKDS-7695/7695A is placed on top of the HDS-7150/7100 without installing in a rack, be sure to
fix the HKDS-7695/7695A to the HDS-7150/7100 with the connecting metals (supplied with the HKDS-
7695/7695A).
Procedure
(1)
Attach the connecting metals to the HDS-7150/7100 and HKDS-7695/7695A using the eight screws
(PSW4 x 8)
supplied with the HKDS-7695/7695A.
(2) Fix the HKDS-7695/7695A to wall or other secure fixture by routing the chain through the hole of
the connecting metal to prevent the HKDS-7695/7695A from falling.
3-4. Matching Cables
Connector indication on rear panel Cable
AC IN AC Power Supply Cord
(For the details of the power supply cord, refer to Section 1-2-3.)
PROCESSOR A, B DC Power Supply Cord
(For the details of the power supply cord, refer to Section 1-2-3.)
When using two units of HKDS-7695/7695A (Used for redundant power supply)
HKDS-7695/7695A
HDS-7150/7100
Connecting metals
Connecting metal
Screw holes
Screw holes
Hole for drop-safe
To Next Page
