(8) After installing the unit in the rack, secure the unit to the rack by the prepared screws (RK5 x 16) for
rack mounting and the four ornamental washers.
. When the HKDS-7695/7695A is mounted in a rack, the maximum moving distance is illustrated below.
HKDS-7695/7695A

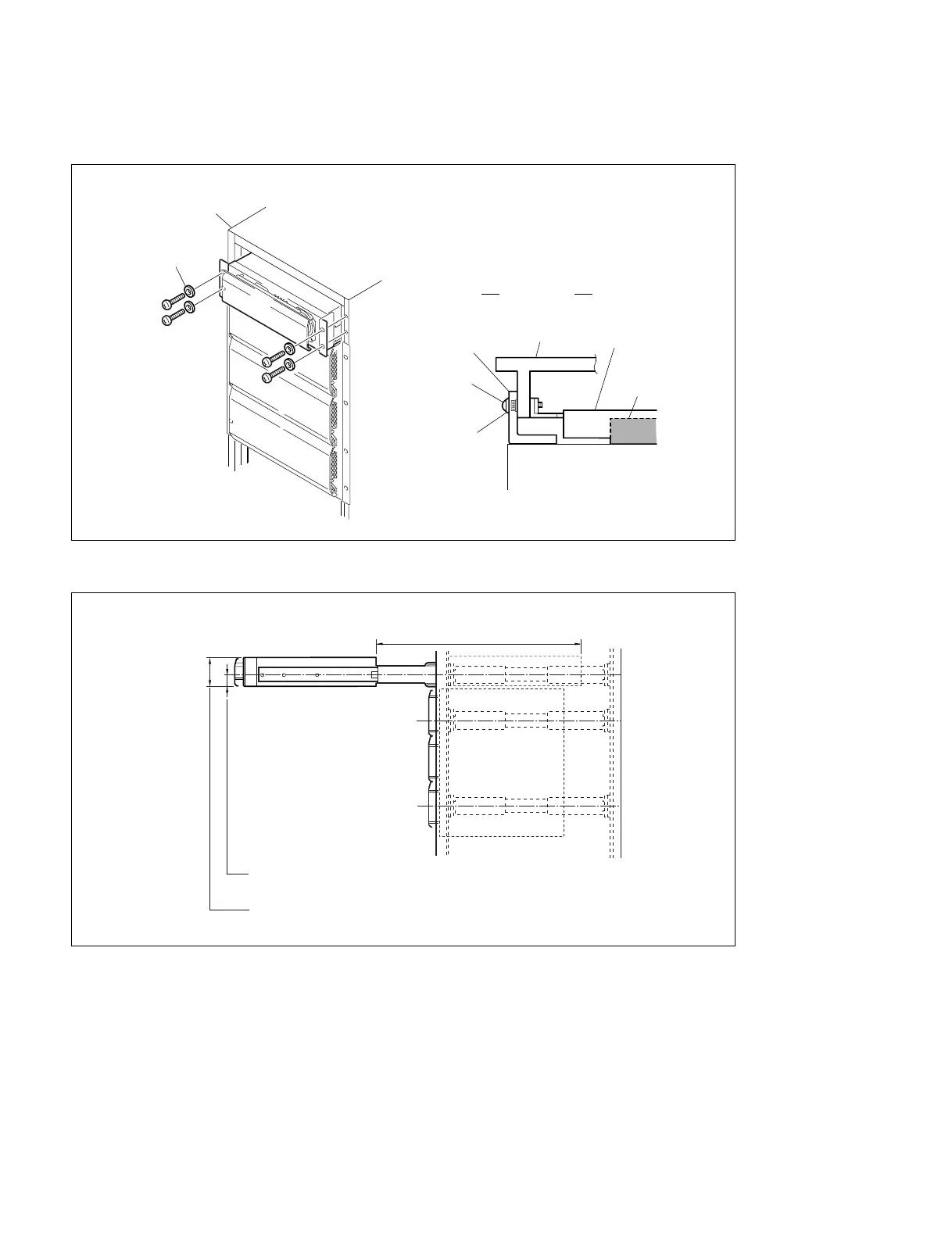

3-2. Rack Mounting
Rack
Rack
RK5 x 16
RK5 x 16
Ornamental washer
Ornamental washer
Rack angle
Bracket
Outer member
TOP VIEW
132
66
Distance to slide rail center
Set height when mounted in rack
Maximum moving distance
569
Unit : mm
To Next Page
