5-3
HDS-7150/7100
5-3. Installation in Console
The BKDS-2010 can be installed in the SONY standard console (19-inch type) by using the Rack Mount
Metal (RMM-3000) of an optional accessory.
Prepared Parts
Rack Mount Metal RMM-3000
The RMM-3000 is supplied with the following parts.
. Fixture (L) : 1 pc
. Fixture (R) : 1 pc
. Washers : 4 pcs
. Screws (RK5 x 12) : 4 pcs
. Screws (PTPWH3 x 10) : 4 pcs
Procedures

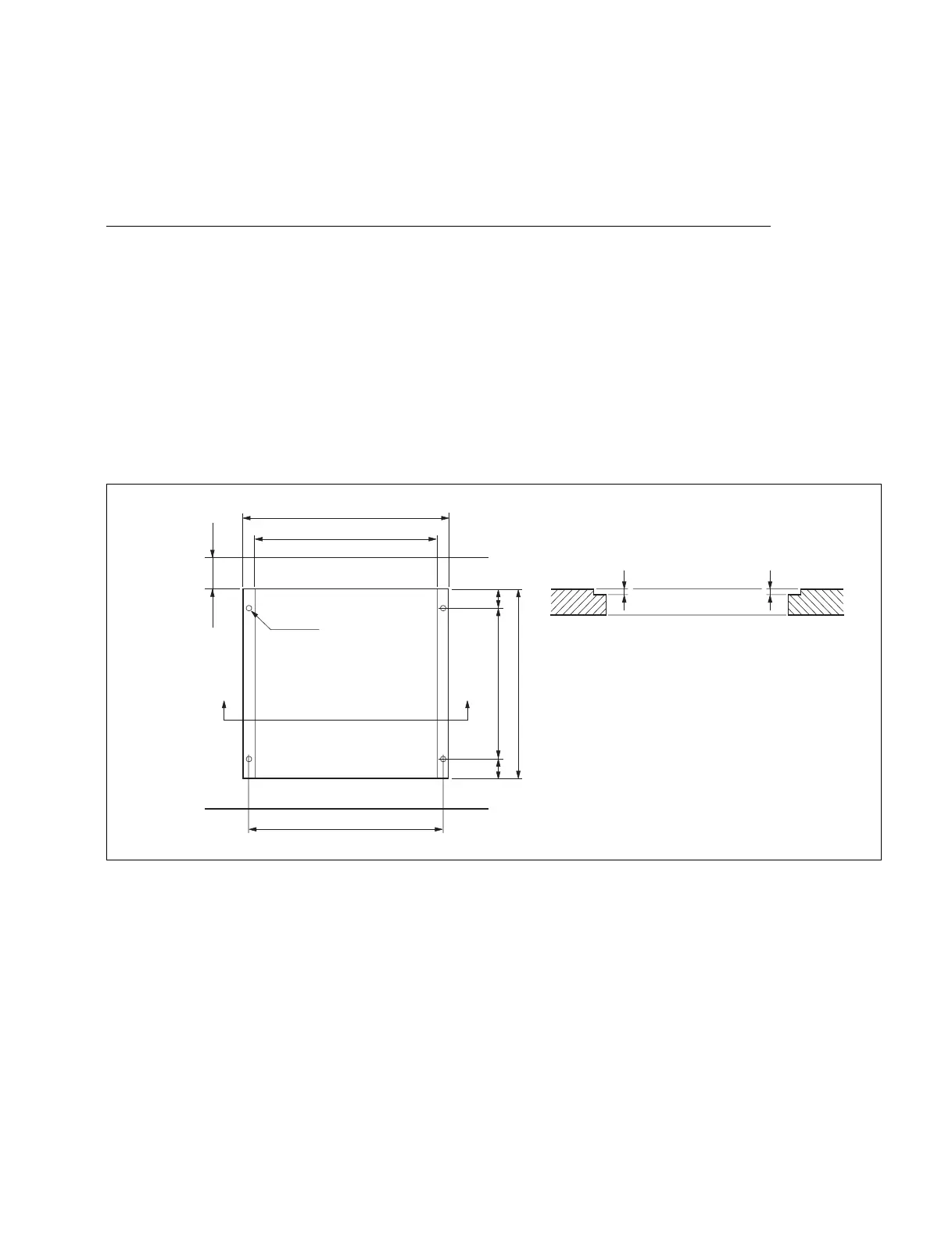

(1) Drill the holes of the following specifications in the console.
Unit : mm
BKDS-2010
5-3. Installation in Console
483
434
3838 325
401
465
Fixing hole
AA
100
or more
4-M5
10 depth
Cross section A-A
5
5
To Next Page
