7-7
HDS-7150/7100
7-1-4. Installation of HKDS-7031/7061/7071
c
Be sure to turn off the power switch (on the HKDS-7695/7695A) before installing or removing the plug-in
boards.
If not, it will damage the boards or cause an electric shock.
(1) Remove the front panel. (Refer to Section 2-5.)
(2) Remove the two board retainers and the board holder. (Refer to “2-6. Removal of Parts on the
Front”.)

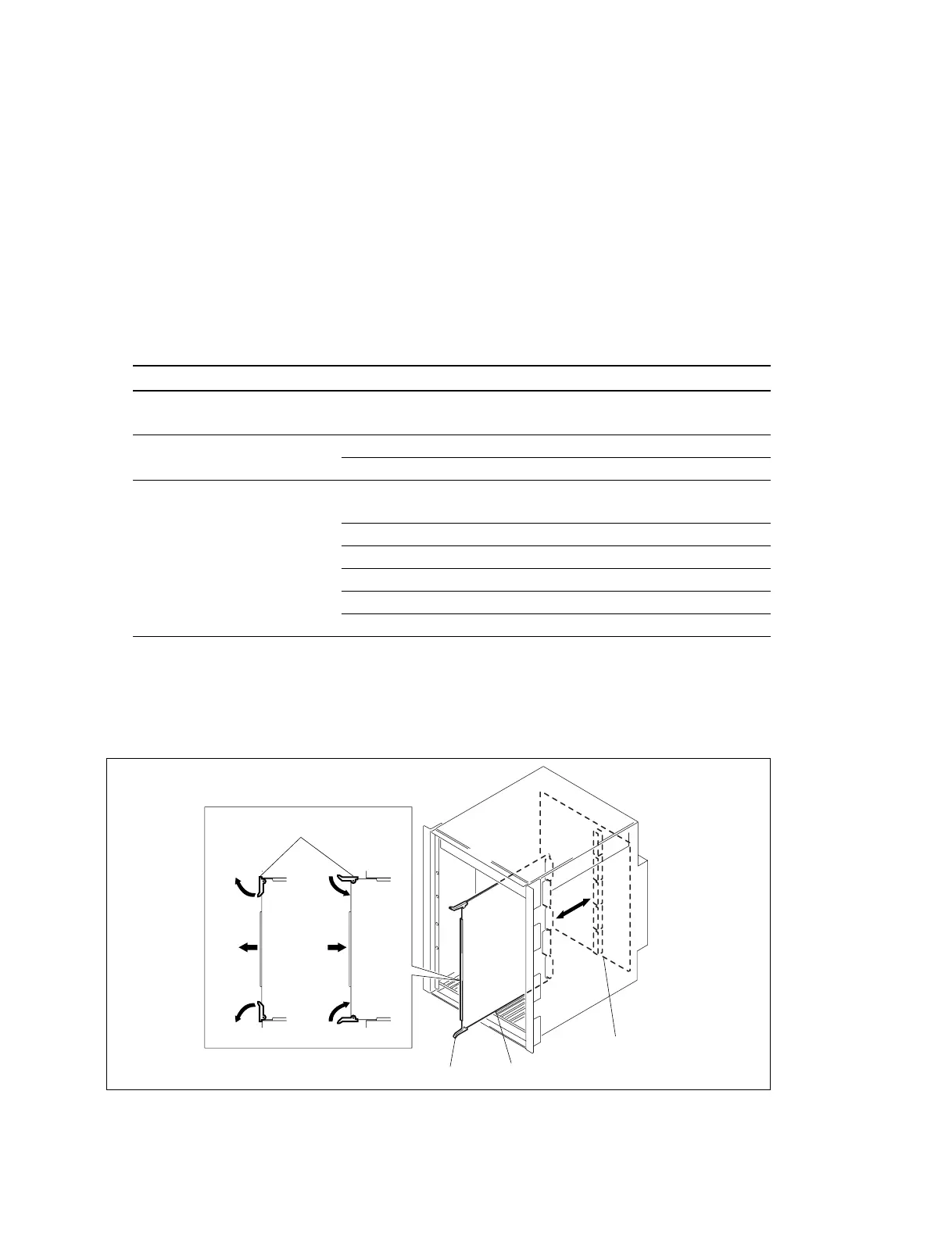

(3) Insert the plug-in board along the board guide rails of the specified slot while keeping the eject levers
open as shown in the illustration.
Option Board name Slot No.
HKDS-7031 : CRK-9/WKG-26 10
Chromakey Board
HKDS-7061 : VSE-19 2
Video Modifier Board DLP-17 3
HKDS-7071 : CPU-183/MEM-87 4
Digital Multi Effects Board MPU-111/MPU-112/MPU-113
MEM-65Y 5
MEM-65C 6
MEM-65K 7
VSE-20 8
VSE-21 9
(4) Push in the plug-in board and close the eject levers in the direction of the arrow 2.
n
Confirm that the connector of the plug-in board is connected to the MB-850 board completely.
(5) Install the board retainers, the board holder, and the fan assemblies.
To remove the board, open the eject levers in the direction of the arrow 1 and pull the board.
n
While applying forces equally to the eject levers in the both sides, pull out the board.
1
1
2
2
Eject levers
Board
MB-850 board
Board guide rail
7-1. Installation of Options for HDS-7150/7100
