Sony HDS-7150 - Installation of BKDS-7003

7-11
HDS-7150/7100
CN15
CN16
(For KY-389A/389B board)
KY-389A/389B/441 board
DC-92 board
(For KY-389A/389B board)
DC-92 board
Screws for board support
Screws for board support
7-2-3. Installation of BKDS-7003
Contents of BKDS-7003
LE-147 Boards : 2 pcs
LE-148 Boards : 2 pcs
LE-180 Board : 1 pc
DC-92 Boards : 5 pcs
Screws for board support : 10 pcs
Screws (B2.6 x 5) : 15 pcs
(1) Open the panel. (Refer to Section 4-6.)
(2) Turn off the power switch in the control panel. (Refer to “7-2-1. Turning On/Off the power”.)
(3) Remove the KY-389A, KY-389B, or KY-441 board.
(Refer to “2-5-1. Replacement of the Boards” in the Maintenance Manual Part 1.)

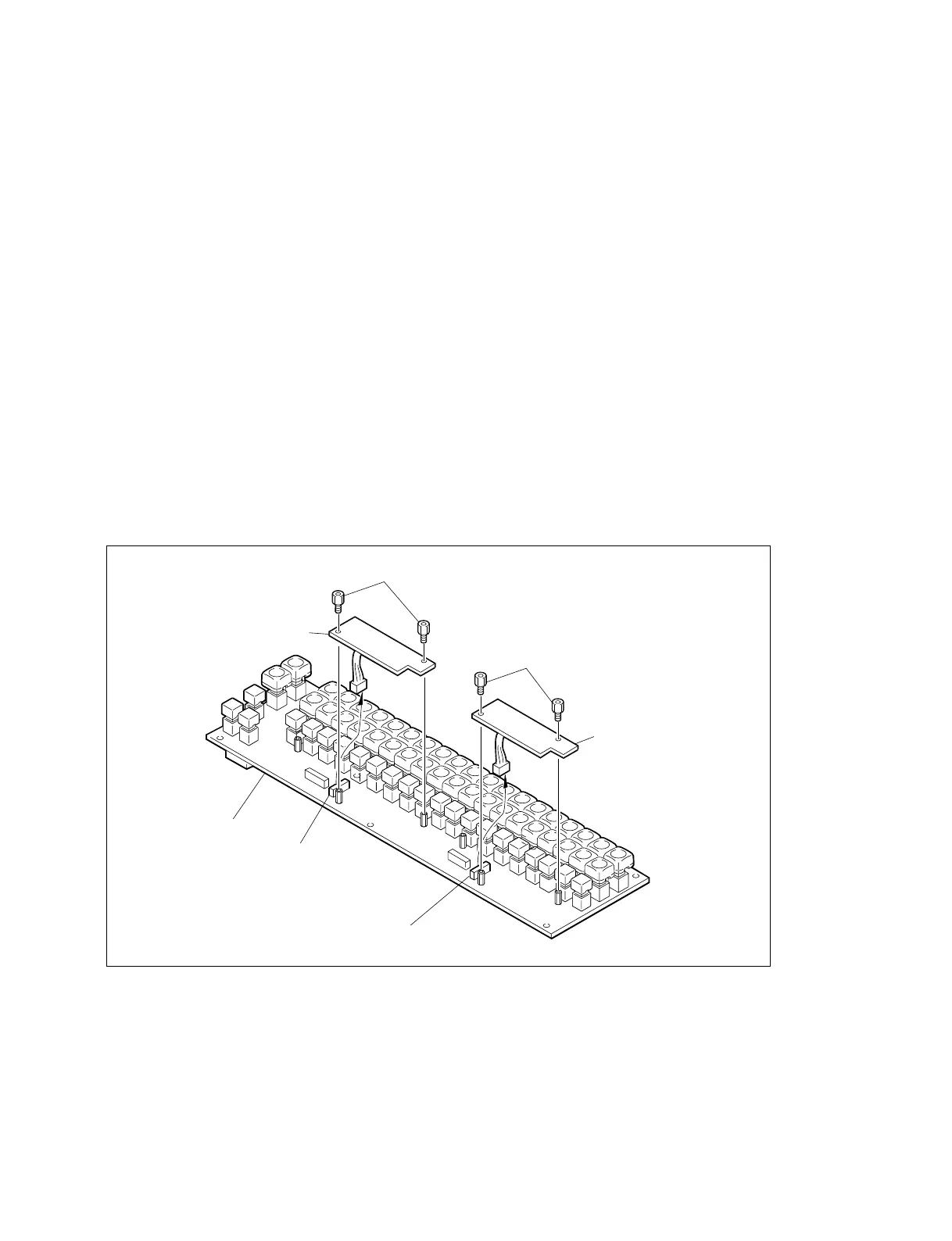

(4) Connect the two harnesses of the DC-92 board to the CN15 and CN16 on the KY-389A, KY-389B,
or KY-441 board.
KY-389A/389B board : CN15 and CN16 on the KY-389A or KY-389B board
KY-441 board : CN15 on the KY-441 board
(5) Install the DC-92 board on the KY-389A, KY-389B, or KY-441 board using the two screws for
board support supplied with the BKDS-7003.
7-2. Installation of Options for BKDS-7071
