7-1-5. Installation of HKDS-7051
The CCR-1827 board (HKDS-7051 : Color correction board) is installed on the VSW-66 board of slot 13.
(1) Remove the front panel. (Refer to Section 2-5.)
(2) Remove the two board retainers and the board holder. (Refer to “2-6. Removal of Parts on the
Front”.)
(3) Remove the VSW-66 board from slot 13. (Refer to “7-1-4. Installation of HKDS-7031/7061/7071”.)
(4) Install the CCR-1827 board on the VSW-66 board while aligning the connectors.
COLOR CORRECTION 1 : Align the CN1 (CCR-1827 board) with the CN8 (VSW-66 board).
(Align the CN2 with the CN7)
COLOR CORRECTION 2 : Align the CN1 (CCR-1827 board) with the CN6 (VSW-66 board).
(Aligh the CN2 with the CN5.)
n
Install the boards completely in order to have no space between the connectors.
(5) Return the VSW-66 board to the slot 13. (Refer to “7-1-4. Installation of HKDS-7031/7061/7071”.)
7-1. Installation of Options for HDS-7150/7100

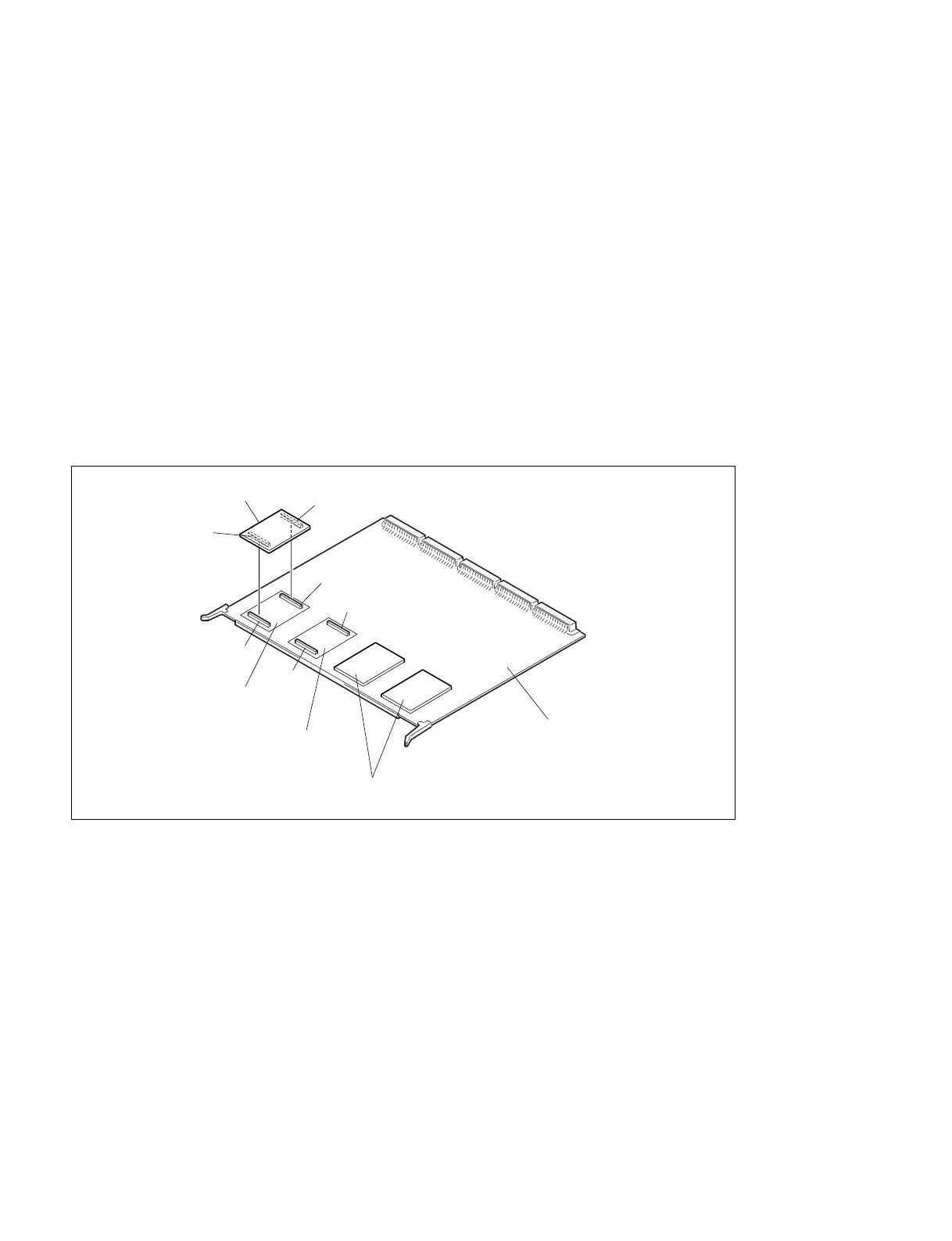

CN5
CN7
CN2
CCR-1827 board
VSW-66 board
CN1
CN6
CN8
WKG-26 boards
COLOR
CORRECTION 2
COLOR
CORRECTION 1
