Sony HDS-7150 - Input and Output Signals of Connectors

4-4
HDS-7150/7100
n
The <CONTROLLER> indicates the controlling device.
SWITCHER : RS-422A (D-sub 9-pin, Female)
<CONTROLLER> to HDS-7150
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 FIELD (+) Field signal input (+)
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 FIELD (_) Field signal input (_)
DME : RS-422A (D-sub 9-pin, Female)
<CONTROLLER> to HD Digital Multi Effects HDME-
7000 or to HDS-7150.
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 _ NC
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 __
*1
REMOTE 1 to 4 : RS-422A (D-sub 9-pin, Female)
<CONTROLLER> to External device
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 __
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 __
*1 : BKDS-7001 (Option : IF-523 board) is required for the REMOTE 1 to 4.
TERMINAL 1, 2 : RS-232C (D-sub 9-pin, Female)
to Terminal
Pin No. Signal Name Function
1 DCD Received line signal detector
signal
*2
2 RX Received data
3 TX Transmitted data
4 DTR Data terminal ready signal
*2
5 GND Signal ground
6 DSR Data set ready signal
*2
7 RTS Request to send signal
*3
8 CTS Clear to send signal
*3
9 __
*2 : Pins 1, 4 and 6 are short-circuited each other on the CN-1149 board.
*3 : Pins 7 and 8 are short-circuited each other on the CN-1149 board.

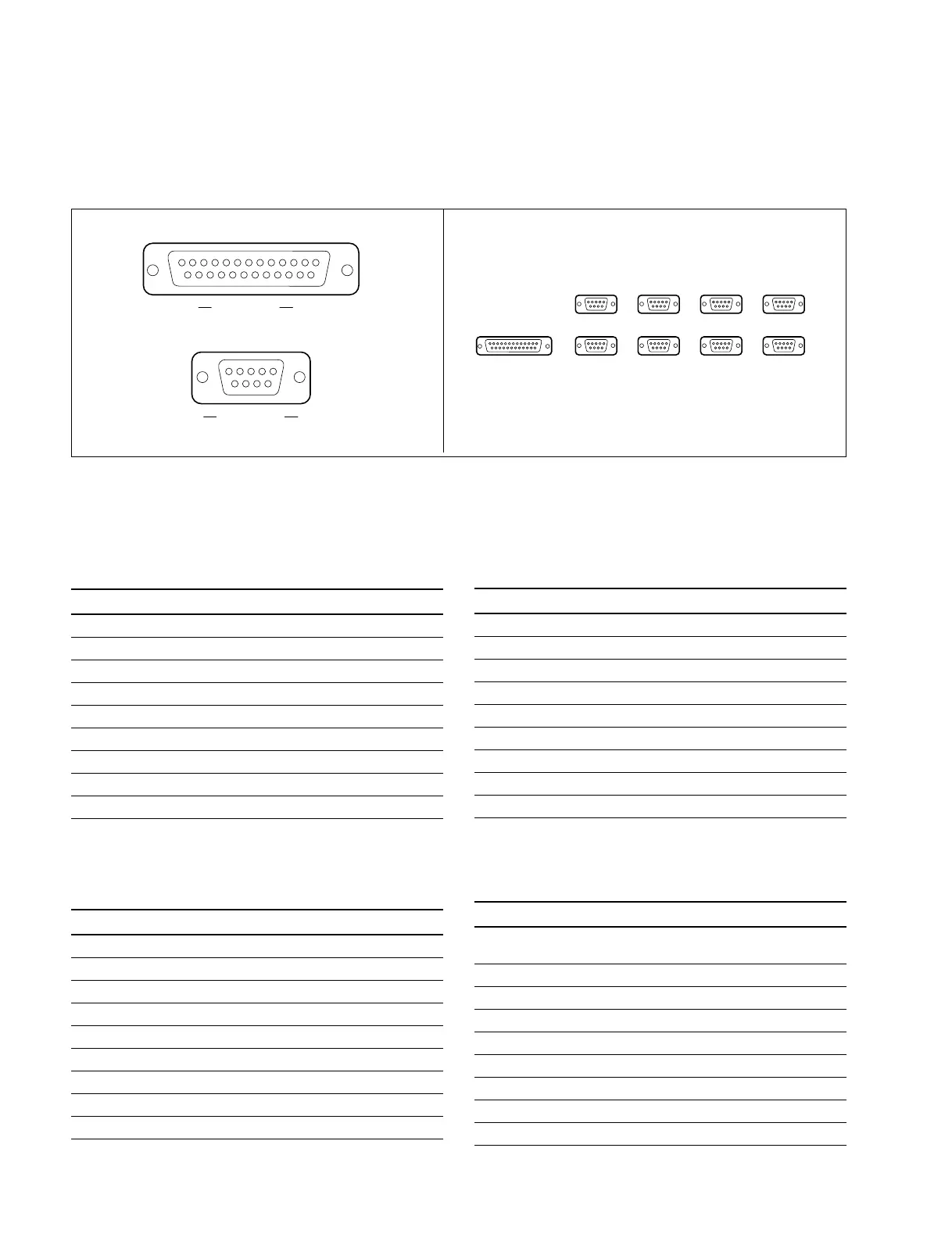

4-5. Input and Output Signals of Connectors
The input and output signals of the connectors on the rear panel are specified in the following table. And
refer to the following illustration for the pin positions of the connectors.
BKDS-7017
4-5. Input and Output Signals of Connectors
EXT VIEW
1
13
14
25
[D-sub 25-pin, Female]
[D-sub 9-pin, Female]
EXT VIEW
1
5
69
SWITCHER DME TERMINAL1 TERMINAL2
OPTION PANEL REMOTE1 REMOTE2 REMOTE3 REMOTE4
1
5
69
1
5
69
1
5
69
1
5
69
1
13
14
25
1
5
69
1
5
69
1
5
69
1
5
69
Pin position Rear panel
