7-9
HDS-7150/7100
7-2. Installation of Options for BKDS-7071
The BKDS-7017 has the following optional equipment.
Option Product name
BKDS-7001 (IF-523 board) Control Port Expansion Board
BKDS-7003 (LED-147/148/180 and DC-92) Source Name Display Unit
BKDS-7030 (KY-328 board) Key Frame Control Panel Unit
BKDS-7031 (KY-329 board) DME Control Panel Unit
BKDS-7033 (KY-395 board) Memory Recall Control Panel Unit
BKDS-7075 (IF-629 board) Control Panel Remote Adaptor
BKDS-7091 (RE-146 board) Redundant Power Supply Unit
m
. For the external dimensions of the adaptor box (BKDS-7075), refer to Section 4-1.
. For the LEDs of the RE-146 board (BKDS-7091), refer to Section 4-7-3.
. For the fader lever operating force adjustment of the BKDS-7030, refer to Section 4-8.

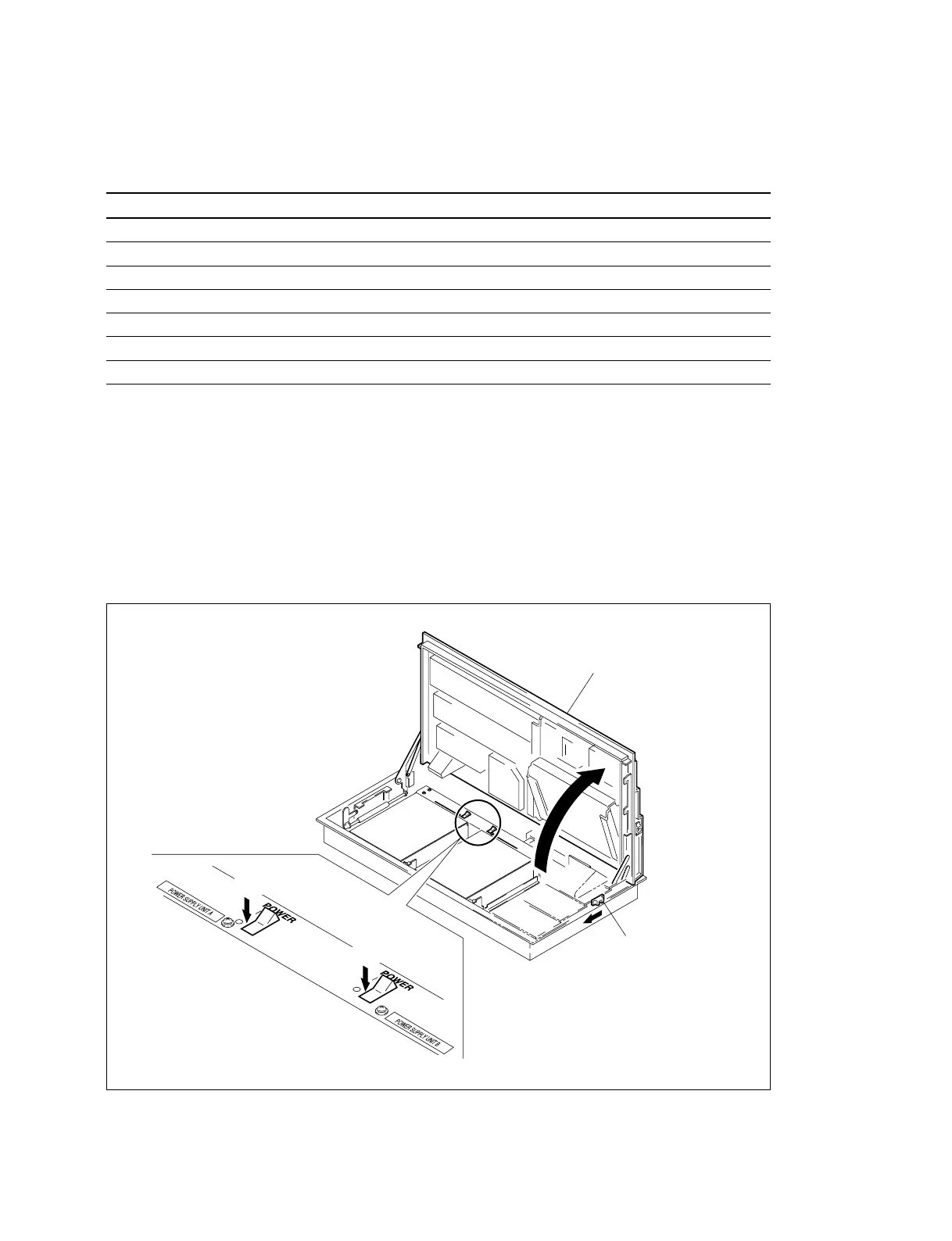

Slide knobs (right and Left)
Panel
Power switch A
OFF
Power switch B
OFF
7-2-1. Turning On/Off the Power
(1) Open the panel. (Refer to Section 4-6.)
(2) Turn off the power switches A and B in the control panel.
7-2. Installation of Options for BKDS-7071
To Next Page
