Sony HDS-7150 - Removal of Bottom Panel

5-7
HDS-7150/7100

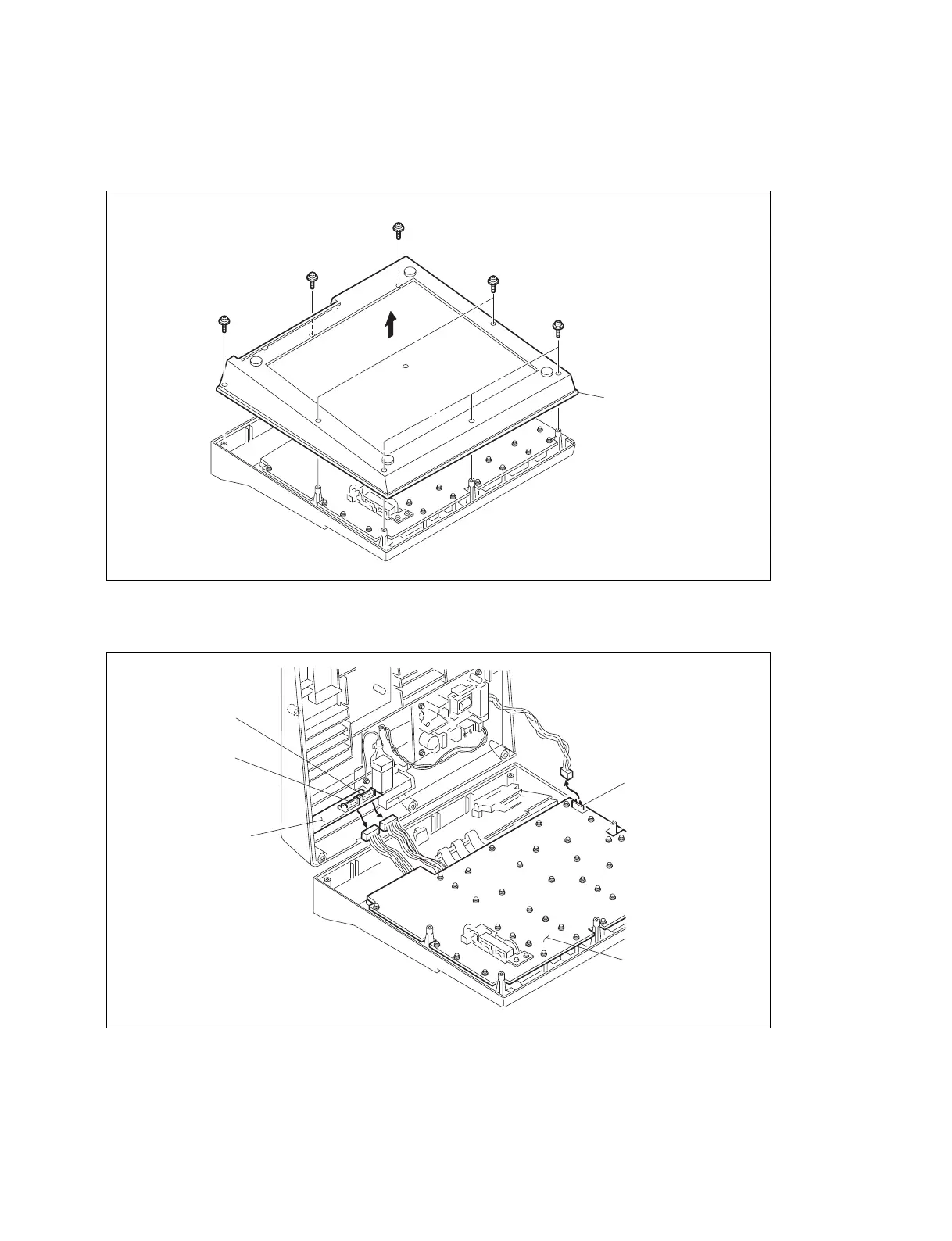

5-6. Removal of Bottom Panel
(1) Remove the eight screws fixing the bottom panel.
(2) Disconnect the two connectors (CN83 and CN84) on the CN-980 board and one connector (CN1) on
the KY-307 board, then remove the bottom panel.
CN84
CN83
CN1
CN-980 board
KY-307 board
BKDS-2010
5-6. Removal of Bottom Panel
Bottom panel
PWH3 x 5
PWH3 x 5
PWH3 x 5
PWH3 x 5
PWH3 x 5
