7-2-4. Installation of BKDS-7030/7031/7033
Contents of BKDS-7030
Key Frame Panel Unit (KY-328 board) : 1 pc
Harness (CTRL5) : 1 pc
Harness (DC9) : 1 pc
Screws (PSW3 x 8) : 4 pcs
Contents of BKDS-7031
DME Control Panel Unit (KY-329 board) : 1 pc
Harness (CTRL5) : 1 pc
Harness (DC9) : 1 pc
Screws (PSW3 x 8) : 4 pcs
Contents of BKDS-7033
Memory Recall Control Panel Unit (KY-395C board) :1 pc
Harness (CTRL5) : 1 pc
Harness (DC9) : 1 pc
Screws (PSW3 x 8) : 4 pcs
Installation to Adaptor Box (BKDS-7075)

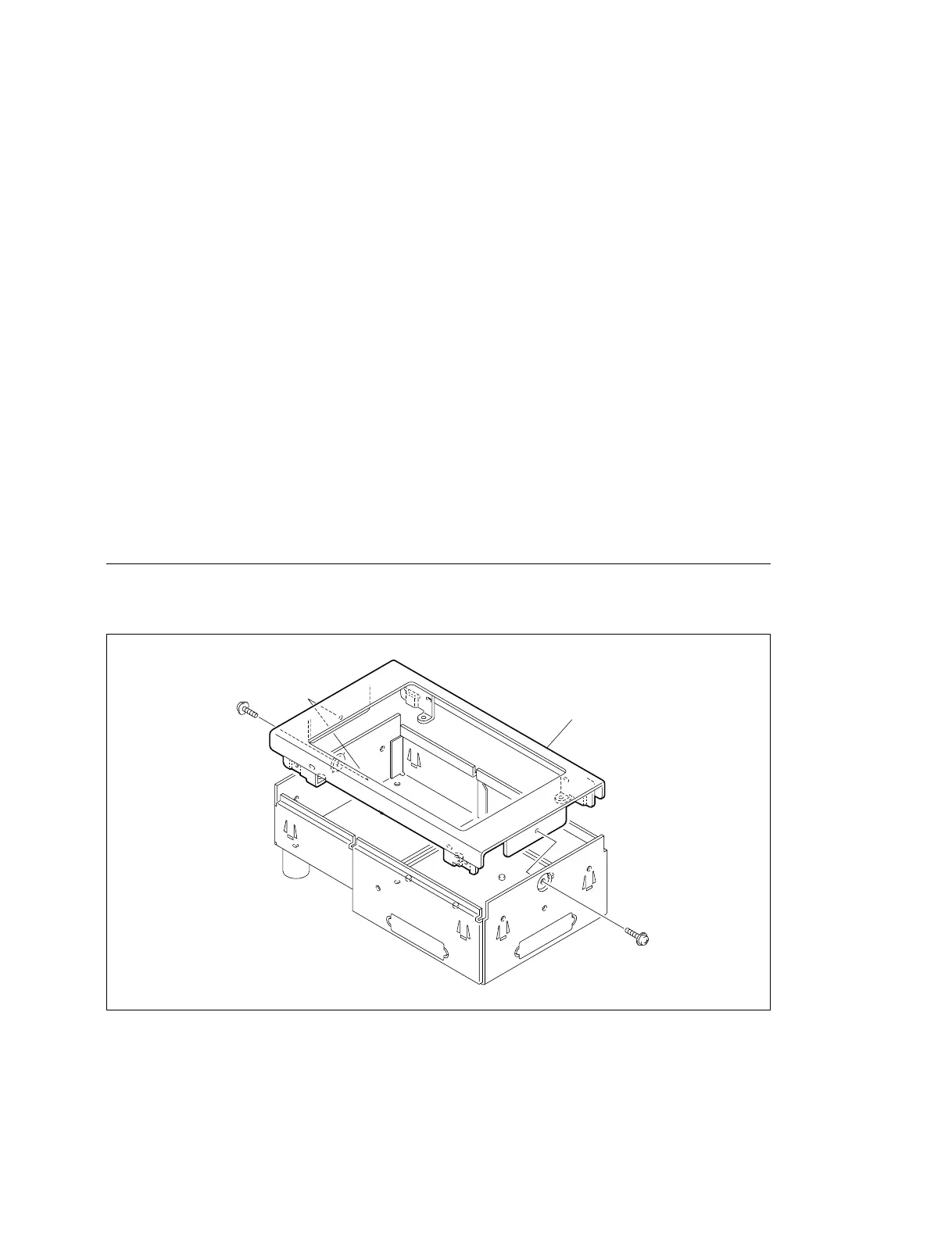

(1) Remove the two screws then remove the AD panel.
AD panel
B3 x 5
B3 x 5
