RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

124

Troubleshooting

Troubleshooting Reference

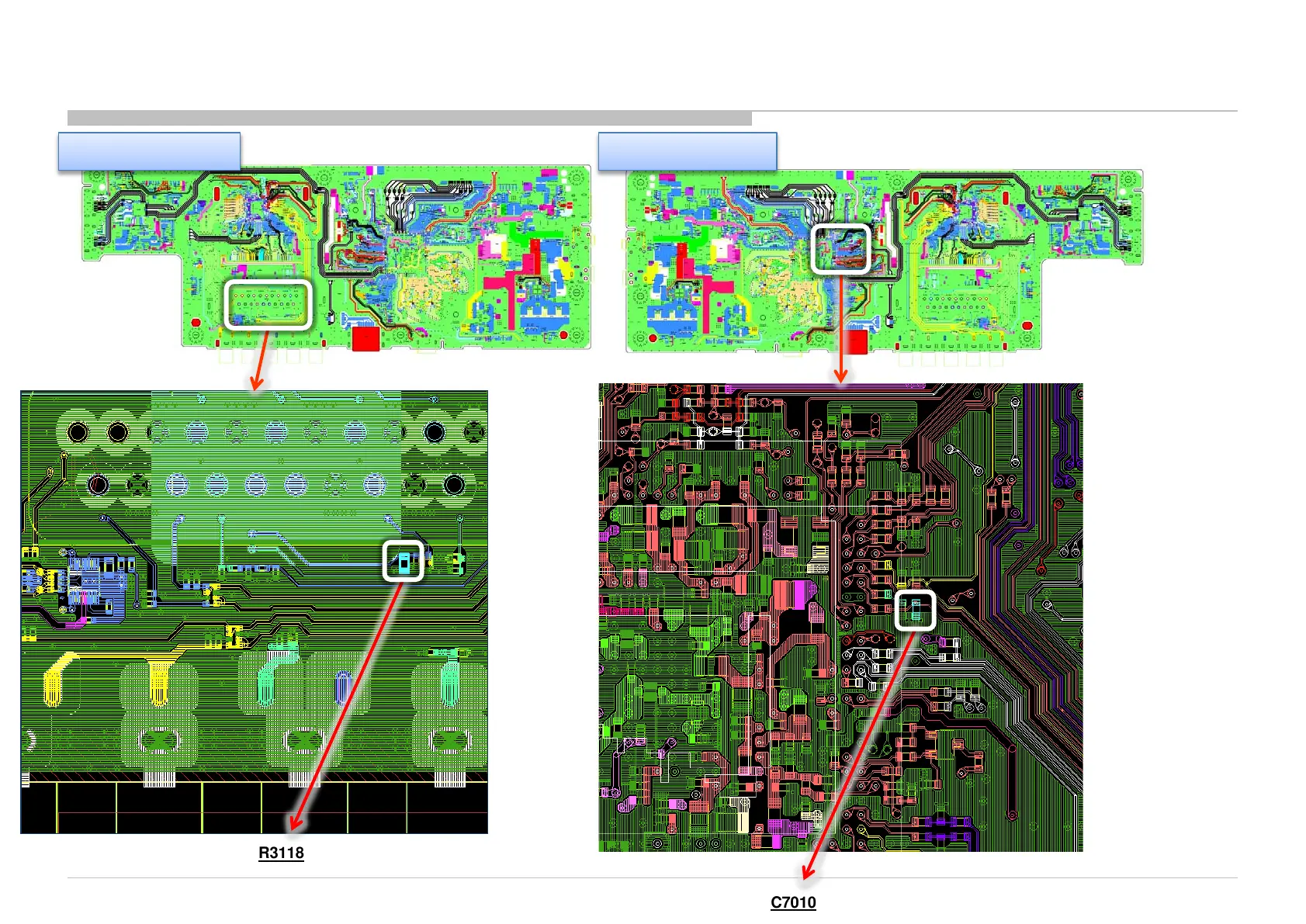

BKE Board- SIDE A

R3118

C7010

BKE > A-SIDE BKX > B-SIDE

BKX Board- SIDE B
