RB1G CHASSIS
W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/
W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A
Status White Center LED Side RGB LED Side Amber LED Remarks
Power Off
( by power saving switch
off and *1)
Off Off Off
*1 power switch off (by side
key)
Power On White Off Off
Main-micro is in normal
operation
Standby
( by remote control off only
)
Off Off Off
Main-micro block is in sleep
mode
Skype Call Receive white white blinking Off
Picture Off
White looping
breathing
one time blinking Off
Device Connection White cyan Off
Set "On Timer"/ Reminder
/ Set "Rec Timer"
( Power On )
White Orange Off
Set "On Timer"/ Reminder
/ Set "Rec Timer"
( Standby )
Off Off Orange
Failure Off
Red
Blinking
Off
The number of LED blinking
indicates cause of failure
( refer to the table of next
page )
Aging mode white Green Blinking Off
Blinking:0.5sec On / 0.5sec
Off
End of Aging mode White Green Blinking Off Blinking:3sec On / 3sec Off
Software Updating white blinking white blinking off
Software Updating finish Off Blue lit off
Test Reset White white blinking Off
Error of panel ID Off Green Blinking
Orange
Blinking
Blinking:0.5sec On / 0.5sec
Off
REC [AEP/J only] White Red(Pink) Lit Off
Picture Frame White Orange Off
ePOP/
Shop Illumination
White
Cy
an Lit/
Cyan loop
Off
One shot Center White
when feature change
15

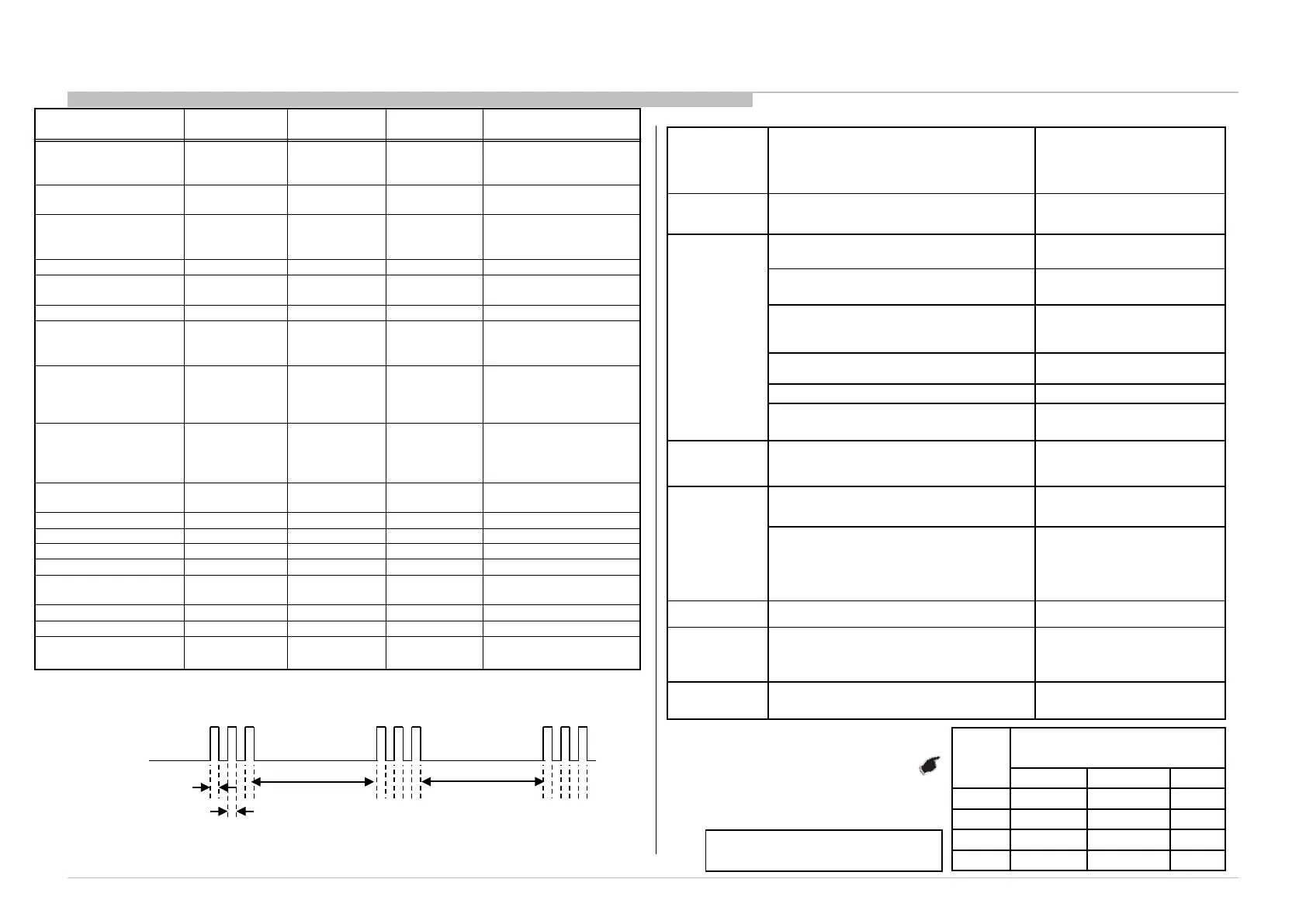

Self Diagnostic Function
2-4. Standby LED Error Display
Note: Details refer to Troubleshooting Section.
2-2. LED Display Control
When safety shutdown occurs, Standby LED display reports the cause by using the lightning
patterns as indicated below
.
2-3. LED Pattern
3.0sec 3.0sec
0.5sec
0.5sec
Example: The figure above shows LED display when SHUTDOWN is caused by Audio
Error. It repeats flashing for a specified number of times in 0.5sec/cycle and has a 3 seconds
interval of lighting off. Please note that a 3 seconds interval of lighting off is fixed regardless of abnormal state types.
Smart Core RED
LED blinking
count
Detection Items
Board Error Item
Main 19.5V failure [MAIN_POWE] l
Power Adaptor
* This failure is not saved
l
B* Board Error
Main 5.0/3.3/1.8/1.0/ 1.1V failure [DC_ALERT]
* 5.0/1.0V failures are not saved.
HDMI equalizer/switch I2C NACK [HDMI_EQ]
*There is Temp. sensor on the same I2C bus
Tuner or demodulator I2C NACK [TU_DEMOD]
l
B* Board Error
AFE device I2C NACK [AFE_I2C] l
B* Board Error
AFE device SPI NACK [AFE_SPI]
(only for AEP,CH,HK)
T Con Error [TCON_ERR] (MD/MW/HG/TE
Model)
6x
LED driver [BACKLITE]
l LED Driver (LD) Board Error
Over temperature protection [TEMP_ERR]
*Temp. sensor I2C NACK [TEMP_ERR] *There
is HDMI Eq on the same I2C bus.
Software Error (VPS/MEPS/HOST/STBY/AFE
WDT)
Audio amp. protection [AUD_PROT]
Panel ID EEPROM I2C NACK (Also panel
power failure is a suspect) [P_ID_ERR]
LED Driver Error [LD_ERR] (HG/TE Model)
Note:
G BOARD : ( N/A FOR THIS MODEL)
RB1G CHASSIS
W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/
W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A
Size
B* Board Type
(Segment: LW)
OTHERS EUROPE JP
24” BLX BLE BLJ
32” BKX/BLX BKE/BLE BKJ/BLJ
42” BKX/BLX BKE/BLE BKJ/BLJ
50” BLX BLE -
To Next Page
