RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

200

Troubleshooting

No Picture

Check/Change

TCON

Mini-LVDS FFC

to Panel

Mini LVDS FFC

broken

Panel problem

Is blue picture

on display?

(Factory SW

is booted)

Set Board

to Panel-less

condition and

replace LVDS FFC.

Is test pattern

displayed?

Check

PANEL_VCC

from G Board at

JL9102 on

B-Board

Check GOLGO

power

and harness

condition

B-Board is OK.

Check:

LVDS FFC

Harness

Broken

G-Board

Power Harness

GOLGO Power

Harness or FFC

YES

OK OK

Check

Flash Data

Rewrite Data

Tuner - No Picture

HDMI - No Picture

Ext. Video Input -

No Picture

YES

Change T-CON

or GOLGO

・

CHECK BL_ON on

B-Board at JL9111.

H: OK

L: NG

PANEL_VCC =12V

G-Board, B-Board

Power Harness

T-CON or GOLGO

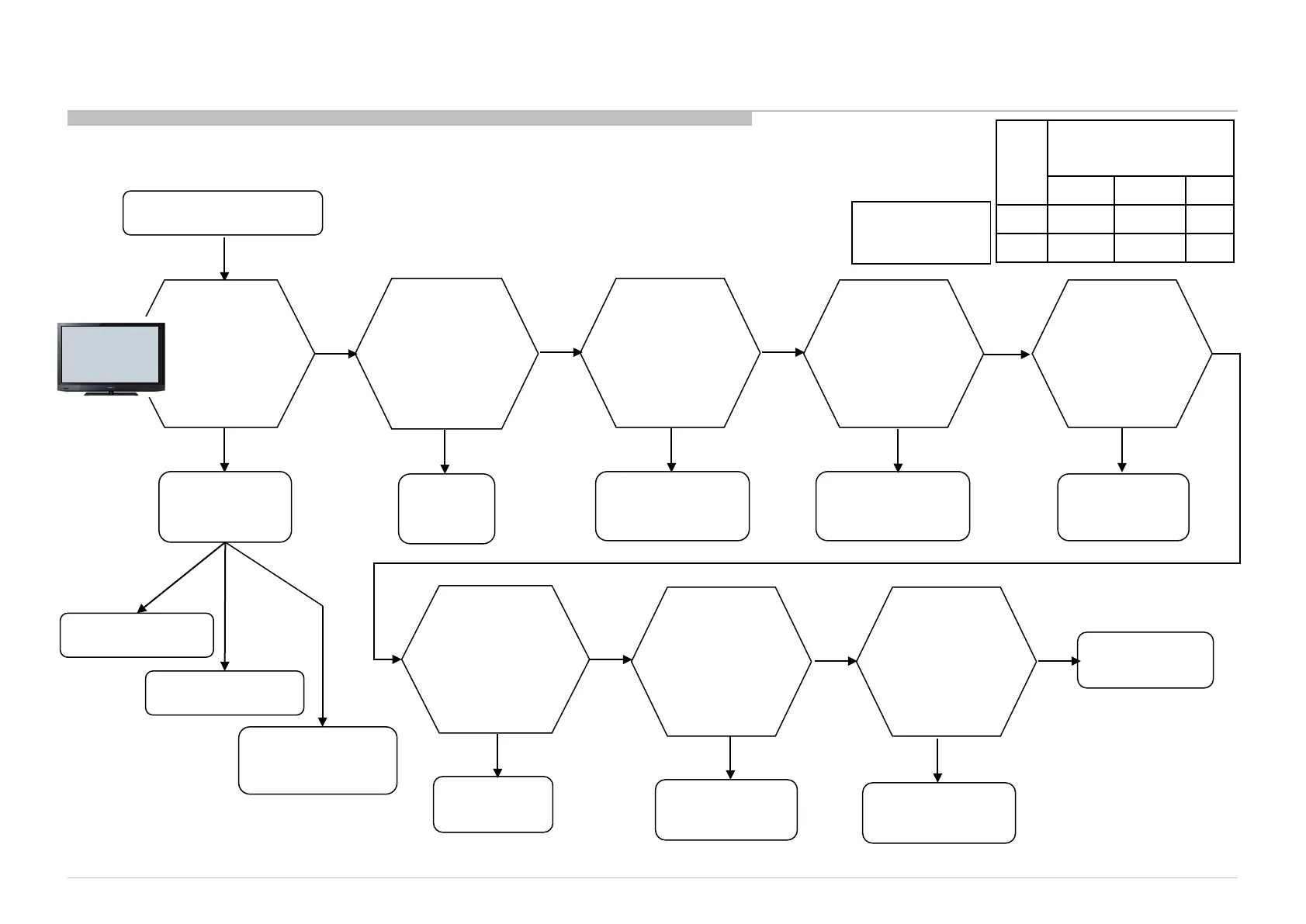

3-5-17. NO PICTURE: (TE and HG Model)

3-5.No Picture

Note:

(AYU2) – IC9000

(Brownie)- IC9001

Size B* Board Type

(Segment: LW)

OTHERS EUROPE JP

32” BKX BKE BKJ

42” BKX BKE BKJ
