RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

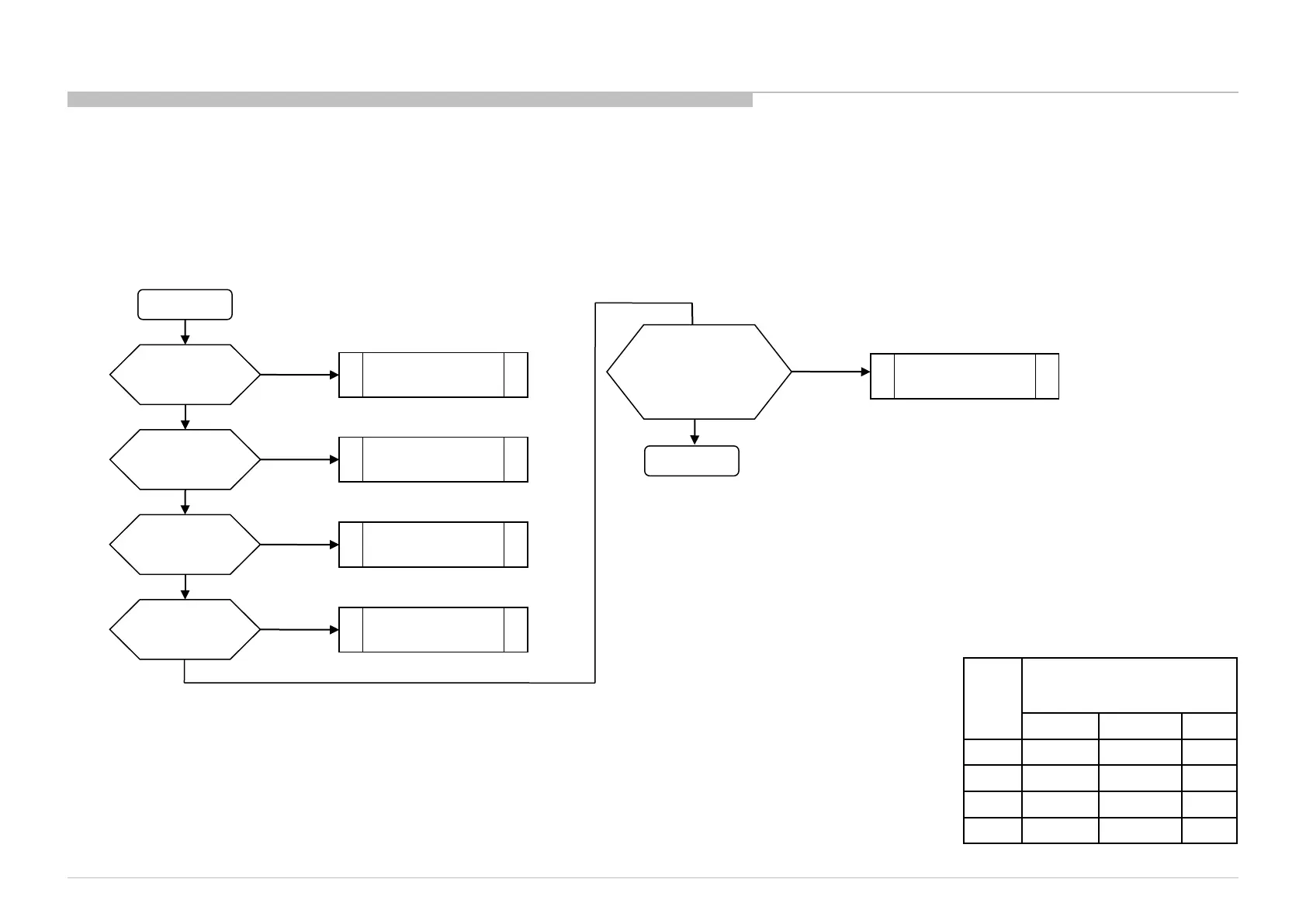

3-1-1. No POWER DC / DC Converter Check

254

Troubleshooting

START

Check SL9111 Voltage.

Is the voltage 1V?

Check

SL9109 (B-others)

JL9132 (BL*) Voltage.

Is the voltage 5V?

Check

SL9103 (B-others)

JL9116 (BL*) Voltage.

Is the voltage 3.3V?

Check

SL9107 (B-others)

JL9125 (BL*) Voltage.

Is the voltage 1.5V?

END

Check F9105

(Check before fuse &

after fuse condition)

Check F9104

(Check before fuse &

after fuse condition)

Check F9102

(Check before fuse &

after fuse condition)

Check F9102

(Check before fuse &

after fuse condition)

yes

Check

SL9105 (B-others)

JL9126 (BL*)

Voltage.

Is the voltage

1.18V?

yes

Check F9106

(Check before fuse &

after fuse condition)

Size B* Board Type

(Segment: LW)

OTHERS EUROPE JP

24” BLX BLE BLJ

32” BKX/BLX BKE/BLE BKJ/BLJ

42” BKX/BLX BKE/BLE BKJ/BLJ

50” BLX BLE -
